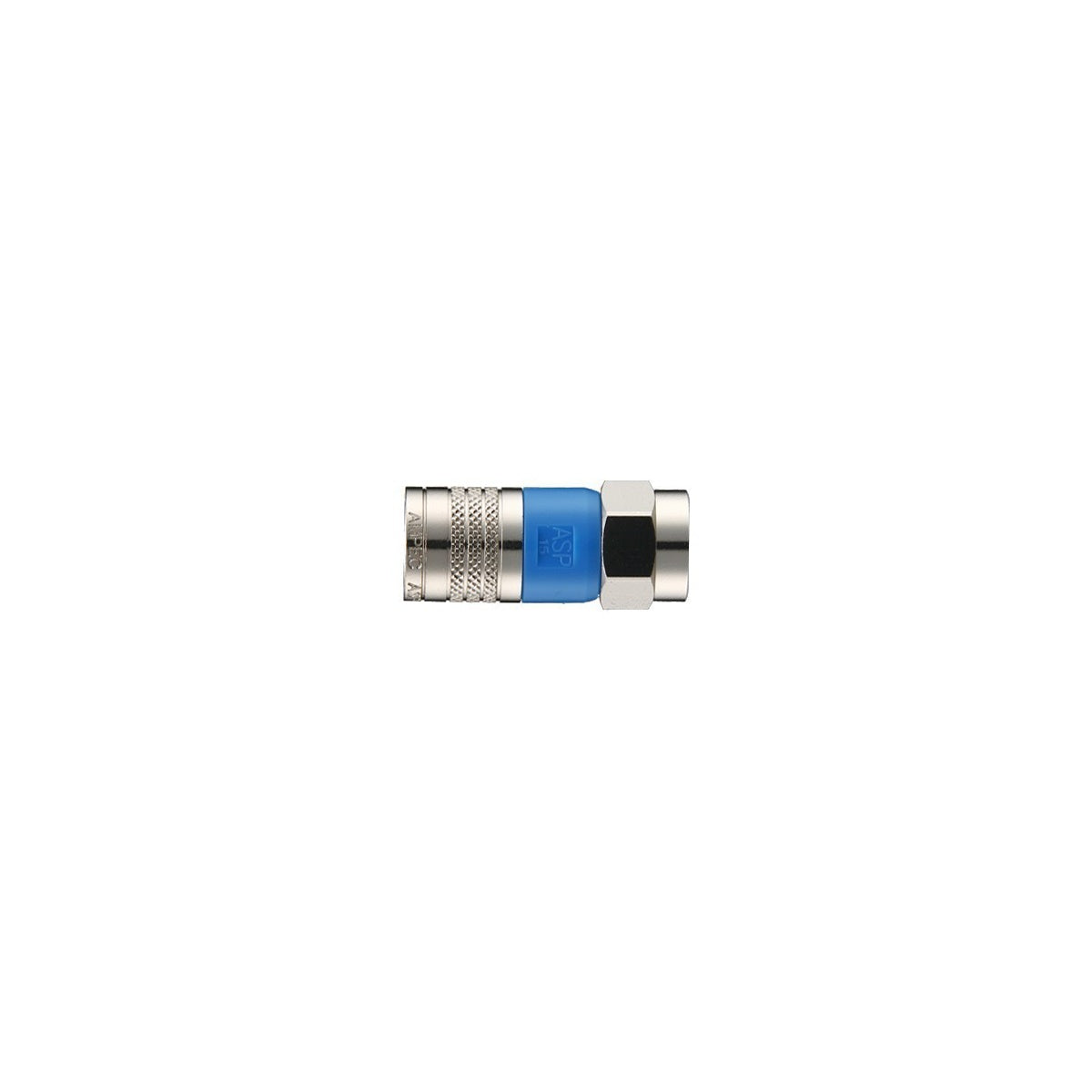

F Male Compression Connectors RG6 10 Pk – Coaxial Compression Connectors

The F Male Compression Connectors RG6 10 Pk by Morris Products are designed for reliable coaxial cable connections used primarily in cable TV and satellite applications. These connectors provide durable, water-tight seals suitable for outdoor use and ensure superior signal performance. Ideal for electrical distributors and lighting solutions providers requiring dependable wire and cable accessories, these connectors feature a compression push-lock design that protects the center conductor and maintains a permanent connection.

Specifications

• Type: F Male Compression
• Cable Compatibility: RG6 Standard & Tri Shield
• Bag Quantity: 10
• Bandwidth: 0-3 GHz
• Return Loss: -30 dB @ 1 GHz
• Insertion Loss: < 0.1 dB @ 1 GHz
• Shielding Effectiveness: 80 dB
• Operating Temperature: -40°F (-40°C) to 140°F (60°C)
• Cable Retention: > 50 lbs
• Travel Compression Crimp: 21mm (0.827") or 35.7mm (1.40")
• Gold Plated Contacts
• Meets or Exceeds all SCTE specifications
• Product Weight: 0.0110 lbs
• Manufacturer Part #: 45075

Features

• Visible post design prevents damage to cable foil and dielectric
• Water-tight seal for outdoor applications
• Permanent connections that do not pull out or loosen
• Large tapered entry for easy cable insertion
• RF signal containment ensures strong signal integrity
• Durable construction suitable for all climates
