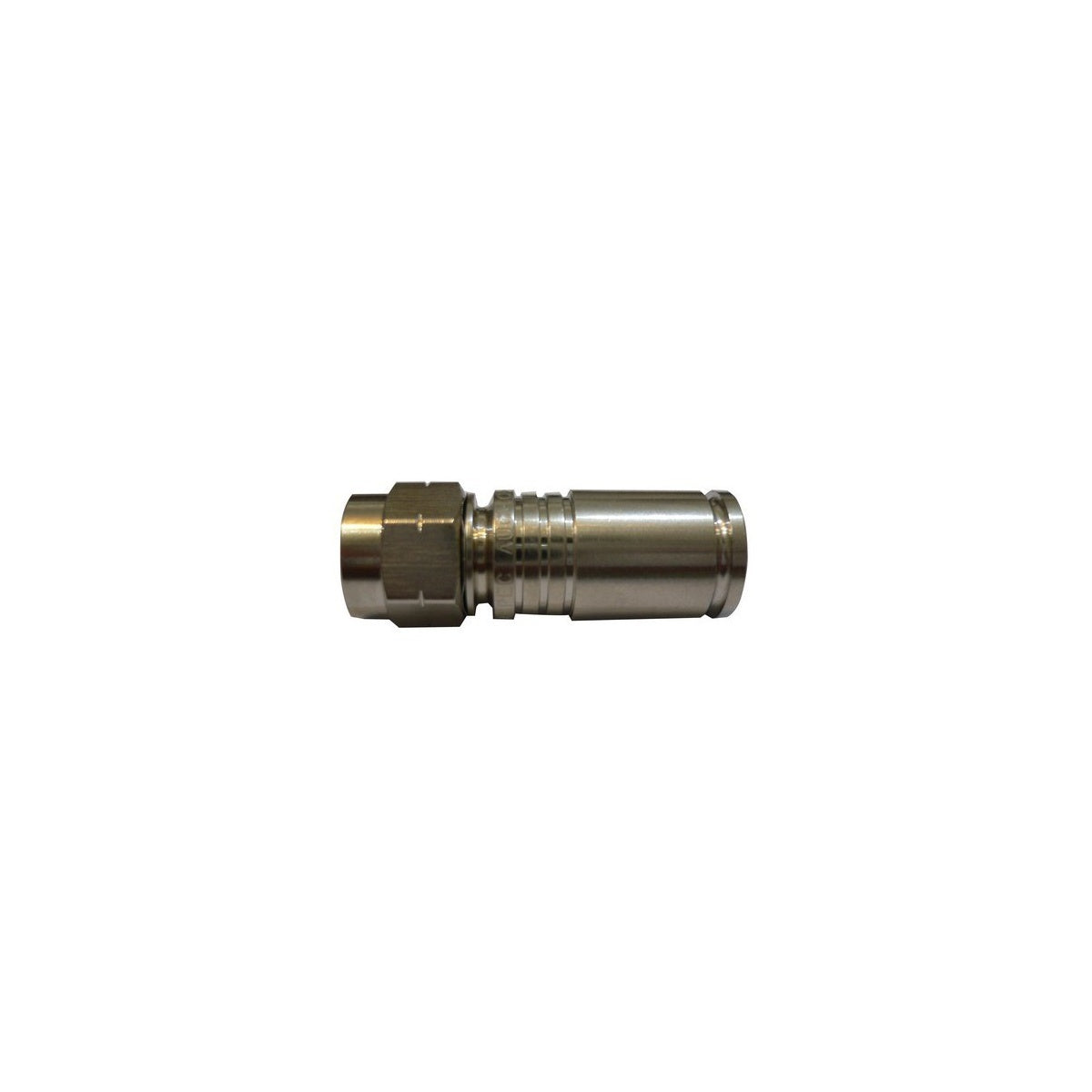

F Male Compression Connectors Hi-Continuity Brass RG6U 10 Pk - Coaxial Compression Connectors

This F Male Compression Connector is designed for RG6U coaxial cables, providing high-continuity brass construction for reliable signal transmission. It is suitable for use in cable TV, satellite, and other wire and cable applications, making it a practical choice for electrical distributors and switchgear suppliers requiring durable and efficient coaxial connections.

Specifications

• Type: F Male Compression - Hi-Continuity - All Brass (Premier Connector)
• Cable Compatibility: RG6U Standard, Tri & Quad Shield
• Bag Quantity: 10
• Bandwidth: 0-3 GHz
• Return Loss: -30 dB @ 1 GHz
• Insertion Loss: < 0.1 dB @ 1 GHz
• Shielding Effectiveness: 80 dB
• Operating Temperature: -40¬∞F (-40¬∞C) to 140¬∞F (60¬∞C)
• Cable Retention: > 50 lbs
• Material: Brass exterior construction
• Manufacturer Part #: 45073
• UPC: 601986450737
• Product Weight: 0.0140 lbs

Features

• Visible post design to eliminate damage to cable foil and dielectric
• Water-tight seal for outdoor applications and superior durability in all climates
• 21mm (0.827") or 35.7mm (1.40") travel compression crimp protects the center conductor from damage
• Permanent connections with over 50 lbs retention force to prevent pullout or loosening
• Large tapered entry allows easy cable insertion
• Gold plated contacts for improved signal performance
• RF signal containment ensures strong signal integrity
• Meets or exceeds all SCTE specifications

Downloads & Links

• Spec Sheet
