Specifications

General Information

• ANSI Code: M90-M140(PULSESTART)
• Lamp Type: 100W MH
• Number of Lamps: 1 piece/unit
• Circuit Type: HX-HPF
• Ballast Type: Magnetic HID
• Base Model: 72C5381
• Suitable For Outdoor Use: Yes
• Ignitor Catalog Number: Inside Can
• Capacitor Catalog Number: Inside Can
• Automatic Restart: No

Operating and Electrical

• Input Voltage: 120/277 V
• Input Frequency: 60 Hz
• Input Current (Open Circuit): 2.55/1.1 A
• Input Current (Starting): 2.2/0.95 A
• Input Current (Short Circuit): 0.7-1.1/0.3-0.5 A
• Secondary Short Circuit Current: 1.3-1.6 A
• Constant Wattage Deviation: 12%
• Ballast Factor (Nom): 1
• Power Factor (Nom): 0.90
• Open Circuit Voltage: 277 V
• Input Current (Nom): 1.1/0.48 A A
• Input Power (Nom): 125 W
• Rated Lamp Power: 100 W

Wiring

• Wire Striplength: 0.5 mm
• Wire Length by Color: 12"
• Wire Type: Stranded
• Remote Wiring Configuration Allowed: Yes
• Max Ballast-Lamp Distance Remote Wiring: 5'
• Recommended Fuse Value: 6/3 A

Mechanical and Housing

• Housing Material: Metal
• Housing: F-Can
• Housing Dimensions: 11.75 x 2.63 x 3.19

Approval and Application

• Open Circuit Voltage Test (Volts): 250-305 V
• Approval Marks: CSA certificate
• Temperature Marking: 90ºC max. case
• UL Recognized: No
• Hipot Test (1 Minute): 1600 V
• Hipot Test (2 Seconds): 2000 V
• UL Insulation Class: A(105°C)
• UL Temperature Code: NA

Product Data

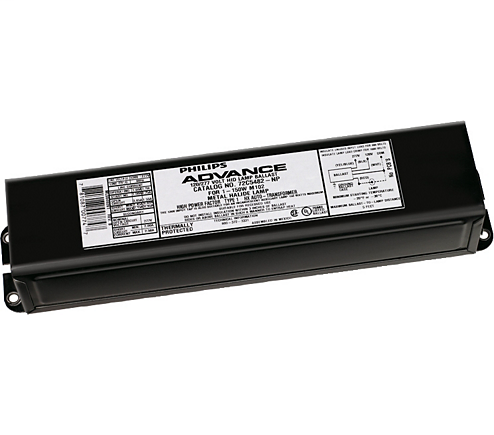

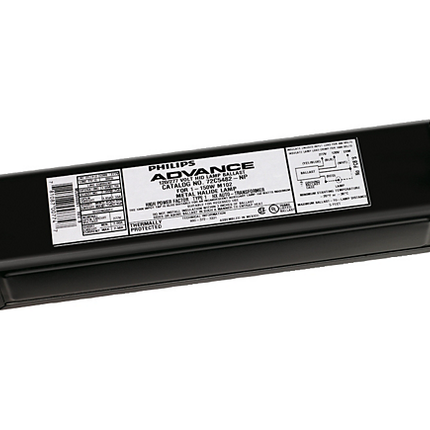

• Order product name: F-CAN HID 72C5381NP001
• EAN/UPC - Product: 781087025277
• Order code: 913710408101
• Numerator - Quantity Per Pack: 1
• Numerator - Packs per outer box: 1
• Material Nr. (12NC): 913710408101
• Net Weight (Piece): 4.541 kg
