EZHH150PSQW Versatile Floodlight by RAB

The EZHH150PSQW is a versatile floodlight designed for outdoor lighting applications, suitable for electrical distributors and lighting solution providers. It features a hinged lens frame and a hydroformed reflector with field-adjustable vertical and horizontal lamp positions, making it adaptable for various lighting needs. This floodlight is ideal for ground mounting and is UL listed for wet locations.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: EZHH150PSQW
• Input Wattage: 190 watts
• Lumens: 14,000 lumens
• Efficacy: 73 lumens per watt
• Weight: 14.9 lbs
• Housing: Precision die-cast aluminum
• Reflector: Hydroformed aluminum, field adjustable vertical or horizontal
• Lens Frame: Precision die-cast aluminum, hinged for easy access
• Lens Gasket: High-temperature tubular silicone set in die cast retaining groove
• Socket: Porcelain 4kv pulse rated with nickel plated screw shell
• Ballast Type: HX-HPF QT

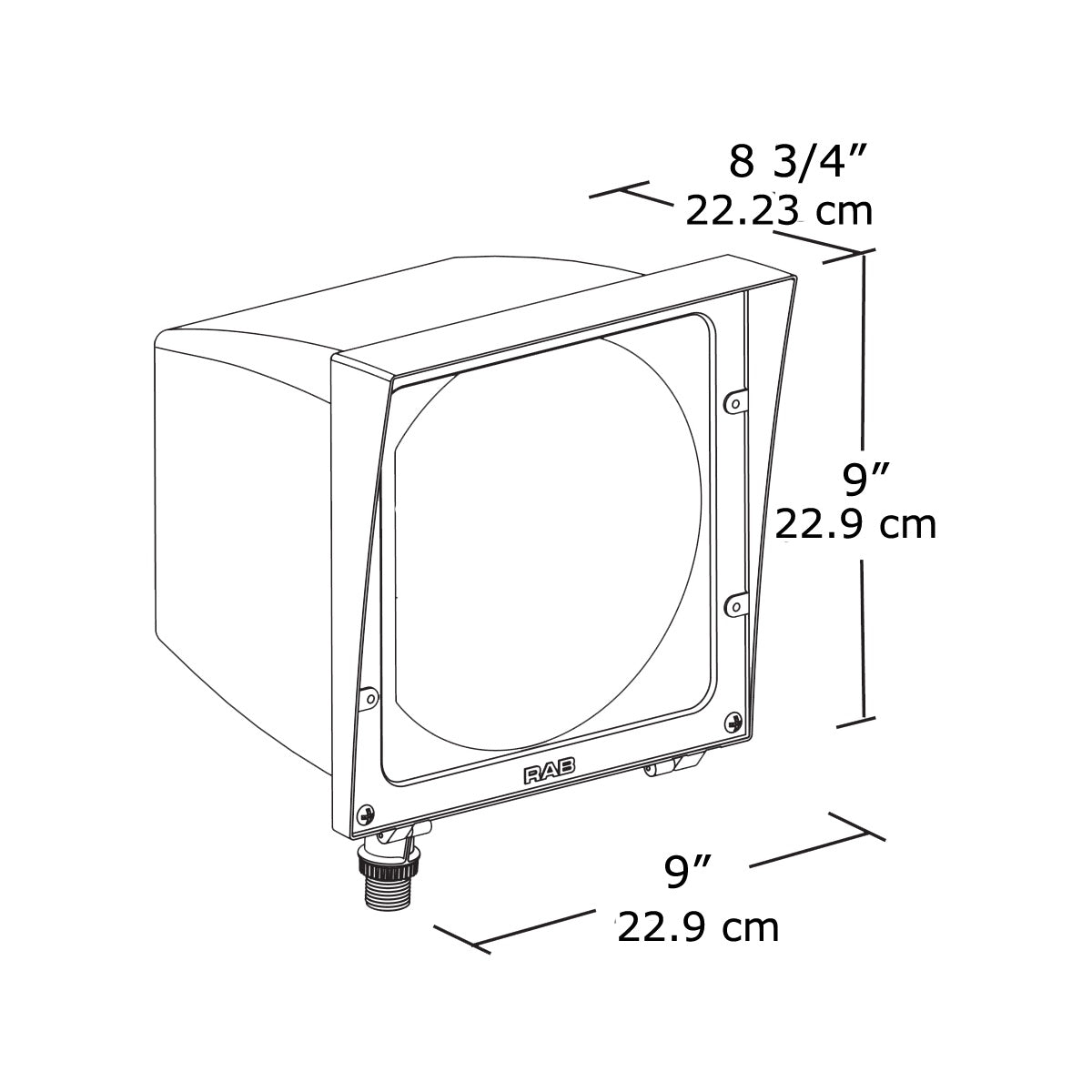

• Dimensions: 9" x 9" x 8 3/4" (22.9 cm x 22.9 cm x 22.23 cm)
• EPA (Effective Projected Area): 0.6
• UL Listed: Suitable for wet locations and ground mounting

Features

• Fins for heat dissipation extend lamp and ballast life
• Hinged lens frame is captive during relamping for easy maintenance
• Silicone gasket ensures durable weatherproofing
• Hydroformed reflector is field adjustable to vertical or horizontal lamp positions
• Long life lamp included
• Durable polyester powder coating on housing and lens frame
• EZ Grip locknut matches fixture finish and can be adjusted by hand, pliers, or screwdriver
• Pulse Start metal halide lamp for increased lamp life, lumen maintenance, color uniformity, and efficiency
• 1/2" NPS threaded arm with locking swivel for secure mounting

Downloads & Links

• Spec Sheet
• Instructions
