EZHH100QTW Floodlight by RAB – High-Efficiency Lighting Solution

The EZHH100QTW is a versatile floodlight designed for reliable outdoor illumination, suitable for electrical distributors and lighting solutions providers. It features a hinged lens frame and a hydroformed reflector that is field adjustable for both vertical and horizontal lamp positions, making it adaptable for various applications. This fixture is ideal for outdoor ground mounting and is compatible with multiple voltage inputs, supporting efficient lighting in commercial and industrial settings.

Specifications

• Manufacturer: RAB
• Manufacturer Part #: EZHH100QTW
• Lumens: 9,000 lumens
• Efficacy: 69 lumens per watt
• Input Wattage: 129 watts
• Weight: 12.9 lbs

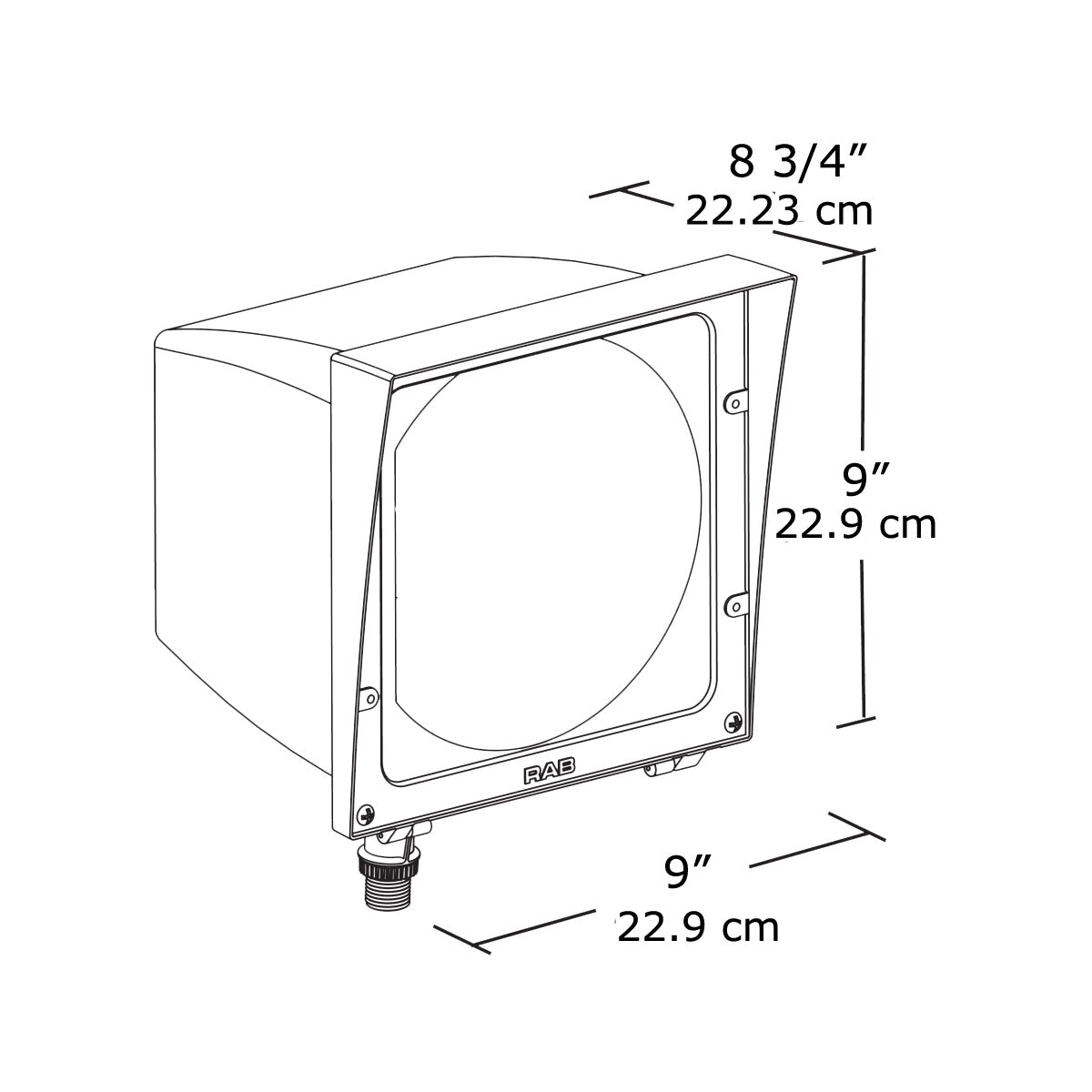

• Dimensions: 9" (22.9 cm) height x 9" (22.9 cm) width x 8 3/4" (22.23 cm) depth
• Socket: Porcelain 4kv Pulse Rated with nickel plated screw shell
• Voltage Compatibility: 120V, 208V, 240V, 277V (Quad Tap)
• Housing: Precision die-cast aluminum with polyester powder coating
• Reflector: Hydroformed aluminum, field adjustable
• Lens Gasket: High-temperature tubular silicone
• Lens Frame: Hinged die-cast aluminum for easy access
• EPA (Effective Projected Area): 0.6
• UL Listed for wet locations and suitable for ground mounting
• EISA 2007 Compliant for metal halide ballast efficiency

Features

• Hinged lens frame captive during relamping
• Silicone gasket ensures durable weatherproofing
• Hydroformed reflector adjustable for vertical or horizontal lamp positions
• Long-life lamp included (15,000 hours)
• Fins for heat dissipation to extend lamp and ballast life
• EZ Grip locknut matches fixture finish and can be adjusted by hand, pliers, or screwdriver
• Buy American Act compliance available upon request
