Features

• All data, video, and communications cable bundles shall utilize an enclosed smoke and acoustical pathway device wherever said cables penetrate non-fire-rated walls and floors. The smoke and acoustical pathway shall contain a built-in sealing system and shall automatically adjust to the installed cable loading and shall permit cables to be installed, removed, or retrofitted without the need to remove or reinstall acoustical materials. The pathway shall provide an achievable STC rating of greater than or equal to the STC rating of the specific underlying construction per ASTM E90-09.
• Designed for easy installation., Does not require mechanical attachment to the wall or wall framing., Can be installed after wallboard., Easy install around existing cables., Provides exceptional cable capacity.
• Cable management by use, type and vendor
• Zero maintenance - easy moves, adds and changes
• Excellent acoustical performance; low smoke leakage ratings
• Easy to install - can be installed horizontally and vertically
• Clean, engineered appearance

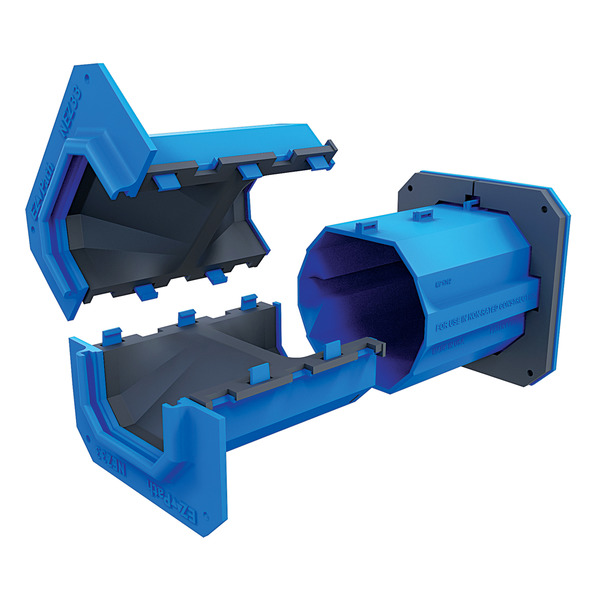

• Retrofittable - retrofit kit comes split apart for old work

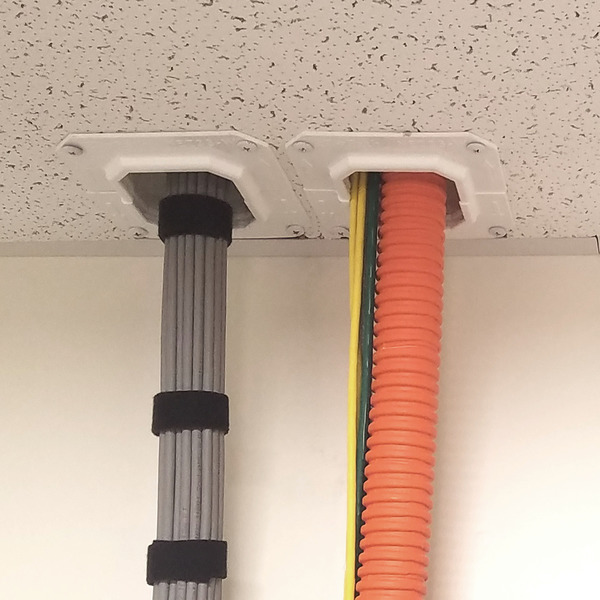

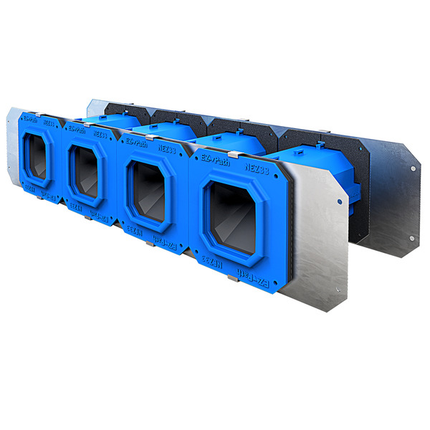

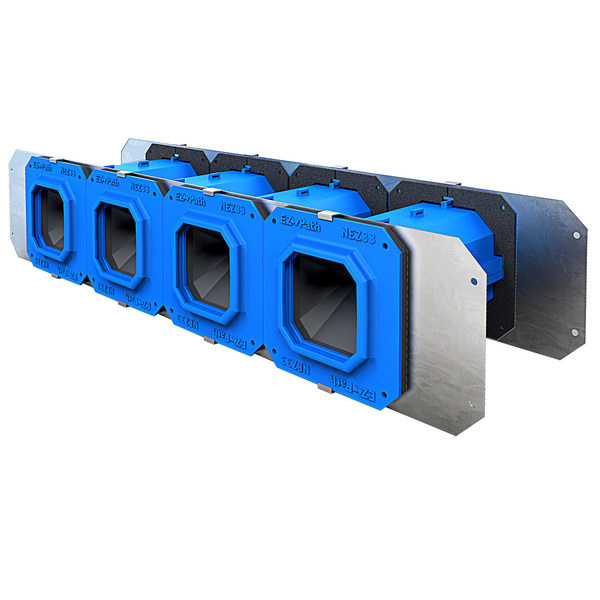

• Pathways can be ganged for additional capacity
• Pathway adjusts to accommodate wall, floor and ceiling thicknesses between 4 in (102 mm) and 8 in (203 mm)

Standards and Certifications

• ASTM E90
• ASTM E90-09

Applications

• Cables
• Cable Tray

Properties

• Finished Product
• Light Weight
• Low VOC
• No Expiration
• Paintable
• Re-Enterable
• Smoke Barrier
• STC Rating

Construction Type

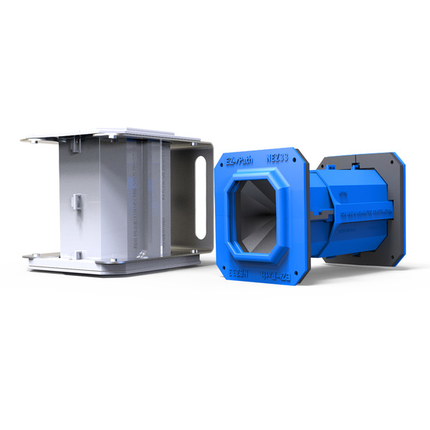

• EZ Path Series 33NEZ Smoke & Acoustical Pathway is designed for easy installation in non-fire-rated walls, floors and ceilings in all major types of construction.

Industry

• Residential
• Commercial
• Industrial
• Construction
• Government

Recommended Use

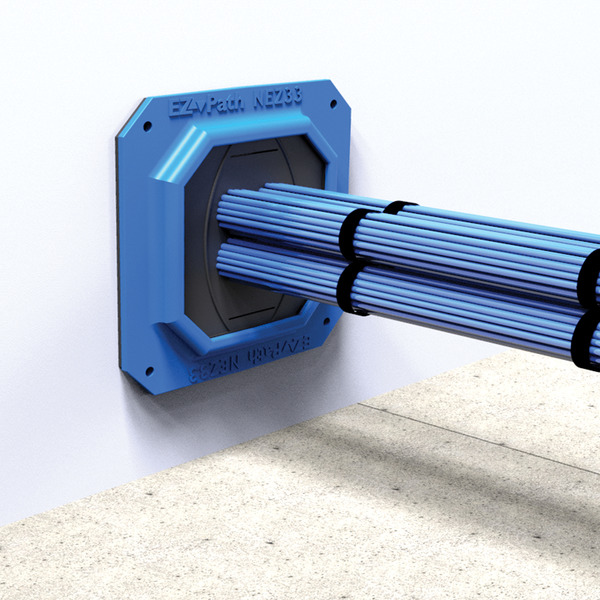

• EZ Path Series 33NEZ Smoke & Acoustical Pathway is designed for easy installation in non-fire-rated walls, floors and ceilings. Tested and approved cable capacities range from 0 to 100% visual fill. EZ Path Smoke & Acoustical Pathway provides exceptional cable capacity. A single unit installed in a wall exceeds the cable carrying capacity of a 4 in (102 mm) sleeve utilizing typical putty firestop systems (35% cable loading). Multiple ganged devices utilizing available duplex, or quad wall plates provide additional capacity or segregation of cables by use, type, installer or vendor as desired.

Specifications

• Country of Origin: USA
• Weight: 1.93 lbs.
• Length: 10.25 in.
• Width: 8.25 in.
• Height: 6.5 in.

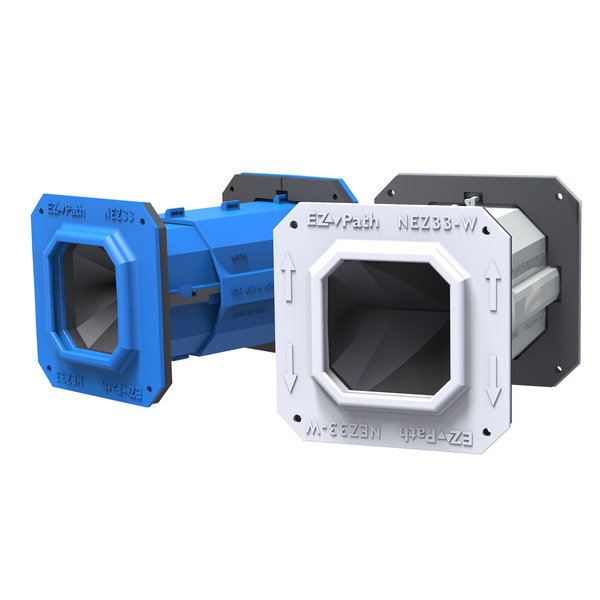

• Color: White
• Composition: Non-Halogenated, V-0 High Impact ABS/PC Thermoplastic, Flame Retardant, Low-Smoke Silicone Rubber
• Material: V-O High Impact ABS/PC Thermoplastic, Flame Retardant Neoprene Rubber
