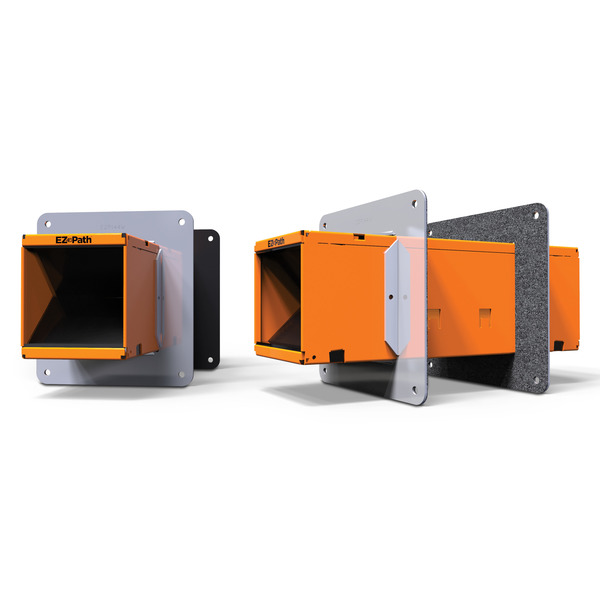

EZ-Path Series 44+ Fire-Rated Pathway Multi-Slot 8-Grid Kit – Fire Rated Cable Pathway

The EZ-Path Series 44+ Fire-Rated Pathway is a heavy gauge galvanized steel pathway designed to allow high cable volume penetration through fire-rated walls and floors without the need for traditional firestopping. Featuring self-sealing intumescent pads that automatically adjust to cable fill, this system provides fire and smoke resistance with fire ratings up to 4 hours. Ideal for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers requiring reliable fire-rated cable pathways that permit easy cable addition or removal without compromising fire integrity.

Specifications

• Material: Galvanized Steel
• Color: Orange
• Dimensions: 30.75 in (Width) x 10.75 in (Height) x 26 in (Length)
• Mounting: Wall Plate
• Fire Rating: 1, 2, 3, and 4 hours
• Application: Firestopping/Cables, wires through rated walls and floors
• Opening Type: Electrical Through-Penetrations, Cable Through-Penetrations
• Installation Type: Wall Plate
• Product Weight: 65.86 lbs
• Made in USA: Yes

Features

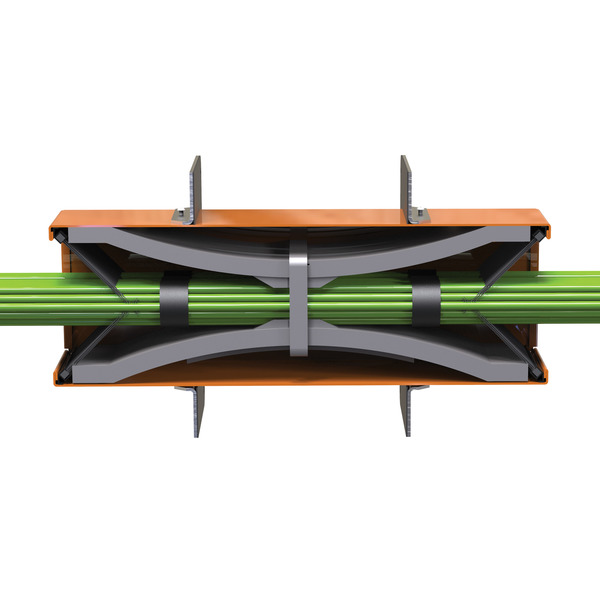

• Self-sealing intumescent pads automatically adjust to installed cable fill
• Allows cables to be added or removed without removing firestopping materials
• Painted safety orange for easy identification
• Compact square profile maximizes cable capacity in limited space
• UL Certified and FM Approved, tested to ASTM E814 (UL1479) and CAN/ULC-S115

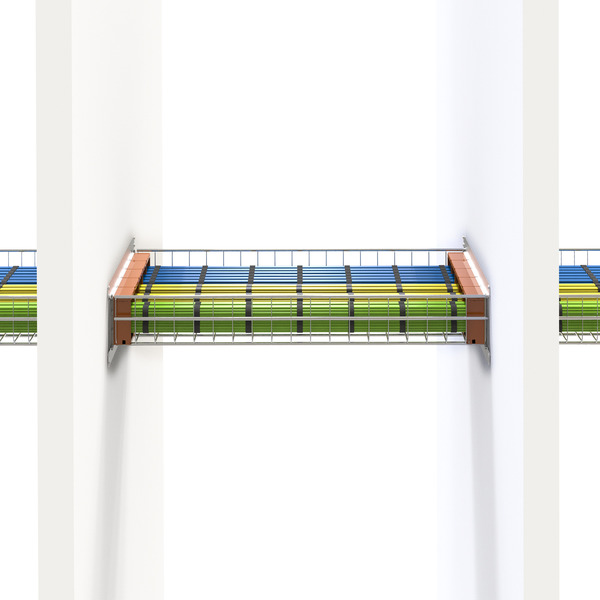

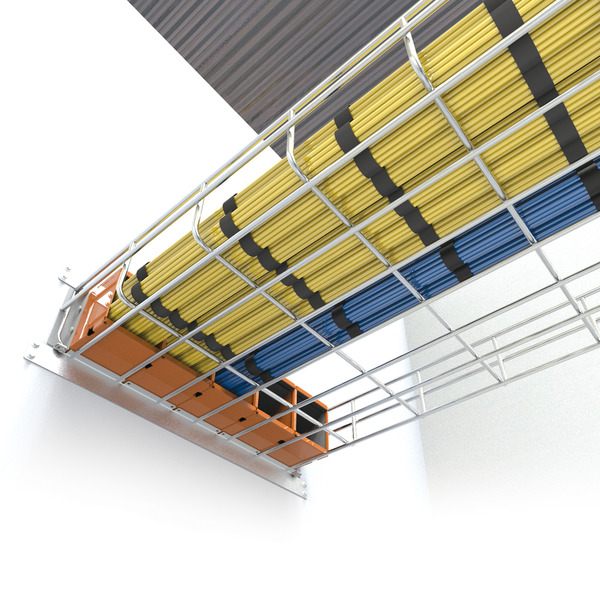

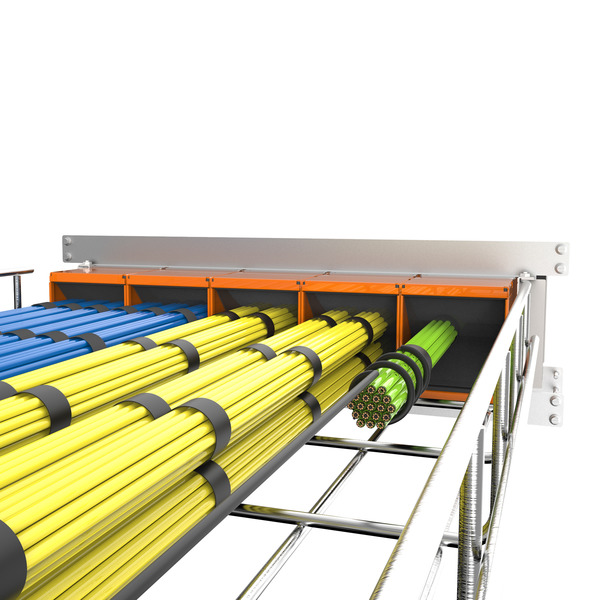

• Supports high cable volume through fire-rated walls and floors
• Includes multi-slot frame kit with 8 devices, hanger brackets, and one EZG844 frame
• No maintenance required under normal conditions

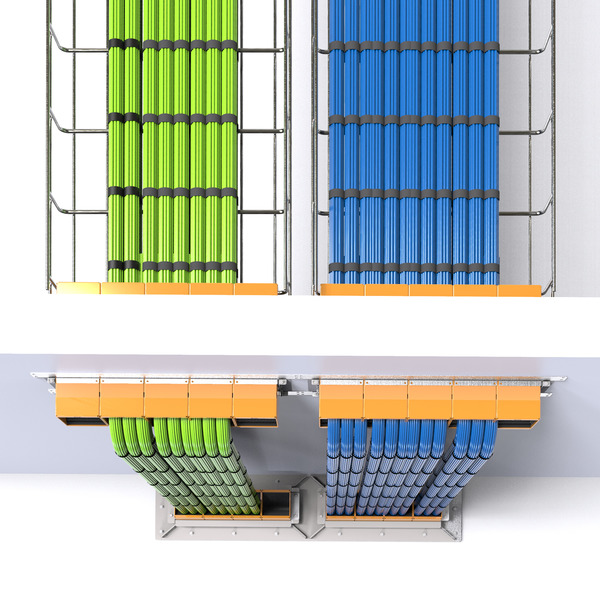

• Permits cable segregation by use, type, installer, or vendor
• More than twice the cable capacity of previous EZ Path¬Æ 33 models

Downloads & Links

• Warranty
• Spec Sheet
• Safety Data Sheet
• Product Brochure
• Installation Sheet
