EZ-Path Series 33 Fire-Rated Pathway Radius Control Modules - One Pair (2)
SKU: #50125
Part: #RCM33
UPC: 730573009338
EZ-Path Series 33 Fire-Rated Pathway Radius Control Modules - One Pair (2)
SKU: #50125
Part: #RCM33
UPC: 730573009338
Next day delivery
Description
EZ-Path Series 33 Fire-Rated Pathway Radius Control Modules - Firestopping Solution

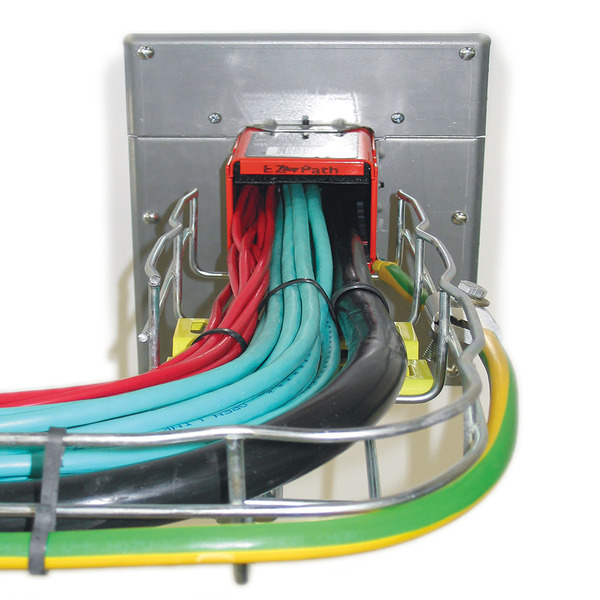

The EZ-Path Series 33 Fire-Rated Pathway Radius Control Modules (RCMs) are designed to be used with the EZ-Path fire rated pathway device to maintain cable integrity by providing a minimum 1 inch (25 mm) bend radius. These galvanized steel modules snap into the ends of pathways, supporting cable bundles at 100% rated loading and facilitating organized cable routing within fire-rated walls and floors. Suitable for electrical distributors and switchgear suppliers, these modules enhance firestopping and cable management in high cable volume applications.
Specifications
- Material: Galvanized Steel
- Color: Orange
- Fire Rating: 1, 2, 3 and 4 Hour
- Dimensions: 6.5 in. Length x 3.25 in. Width x 3.75 in. Height
- Weight: 0.05 lbs (per pair)
- Application: Plastic spillway used with EZPATH fire rated pathway device
- Opening Type: Electrical Through-Penetrations, Cable Through-Penetrations
- Installation Type: Snaps into pathway ends
- Country of Origin: United States
- Included: One Pair (2) Radius Control Modules
- Manufacturer: Specified Technologies
- Manufacturer Part #: RCM33
Features
- Snap-in installation for quick and secure attachment to EZ-Path Series 33 pathways
- Maintains minimum 1 inch (25 mm) bend radius to protect cable integrity
- Supports cable bundles at 100% rated loading for maximum cable capacity
- Insertion slots provided for support ties (ties not included) to organize cables
- Compatible with firestopping solutions for electrical and communications penetration firestopping
- Designed for use in walls and floors within fire-rated pathways
- Made in the USA, ensuring quality and compliance with fire safety standards
