EZ-Path Series 33 Fire-Rated Pathway Conduit Attachment Kit – Fire Rated Pathway

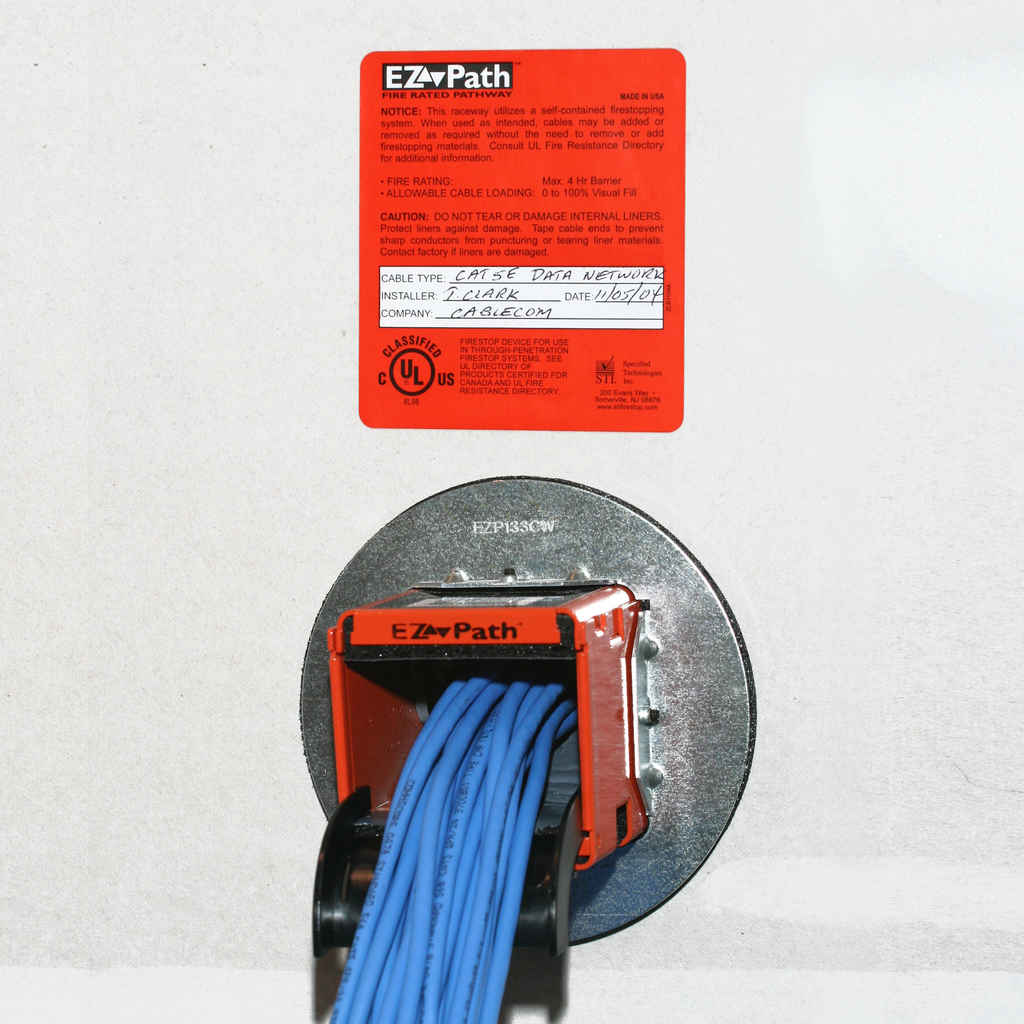

The EZ-Path Series 33 Fire-Rated Pathway Conduit Attachment Kit provides a maintenance-free, UL-certified solution for safely routing moderate volumes of cables through fire-rated walls and floors. Designed for electrical distributors and switchgear suppliers, this galvanized steel pathway features built-in intumescent pads that expand under fire conditions to seal cable penetrations, preventing the passage of smoke and flames. Its compact, safety-orange design supports easy identification and installation in new or retrofit applications, allowing cables to be added or removed without disturbing firestopping materials.

Specifications

• Material: Galvanized Steel
• Color: Orange
• Dimensions: 6.5 in. (W) x 6.5 in. (H) x 12.25 in. (L)
• Fire Rating: 1, 2, 3, and 4 Hour
• Application: Firestopping/Cables, wires through rated walls and floors
• Opening Type: Electrical Through-Penetrations, Cable Through-Penetrations
• Mounting: Wall Plate
• Installation Type: Wall Plate
• Product Weight: 4.05 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Built-in intumescent pads automatically adjust to cable fills and expand to form an insulating char in fire conditions
• Allows cables to be added or removed without removing or reinstalling firestop materials
• Compact square profile maximizes cable capacity in limited space
• Safety orange color for easy identification on site

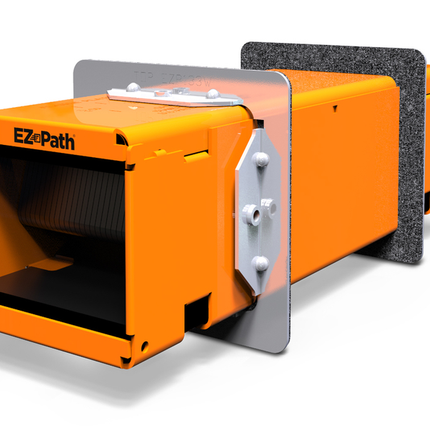

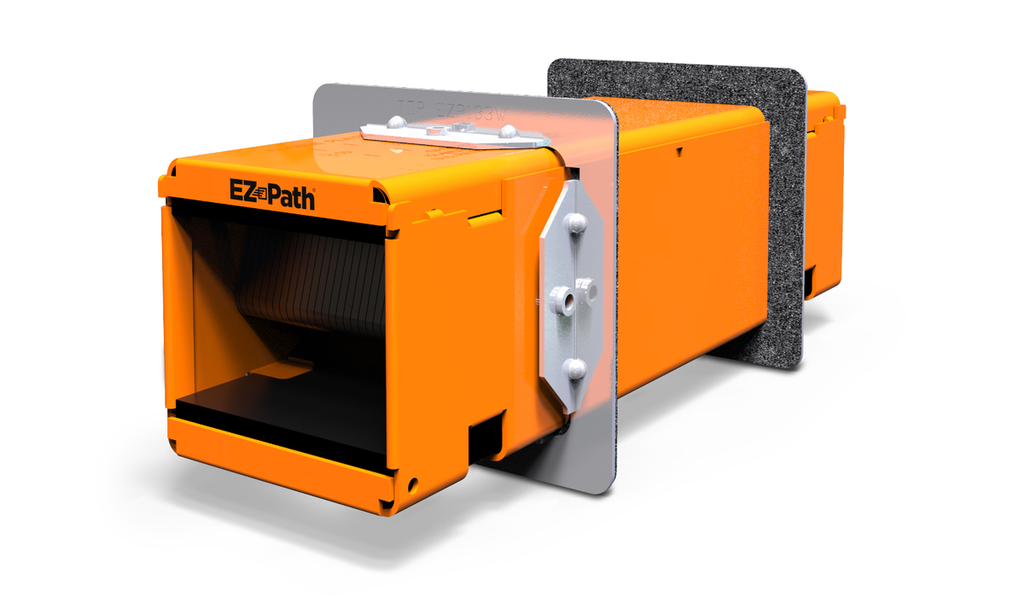

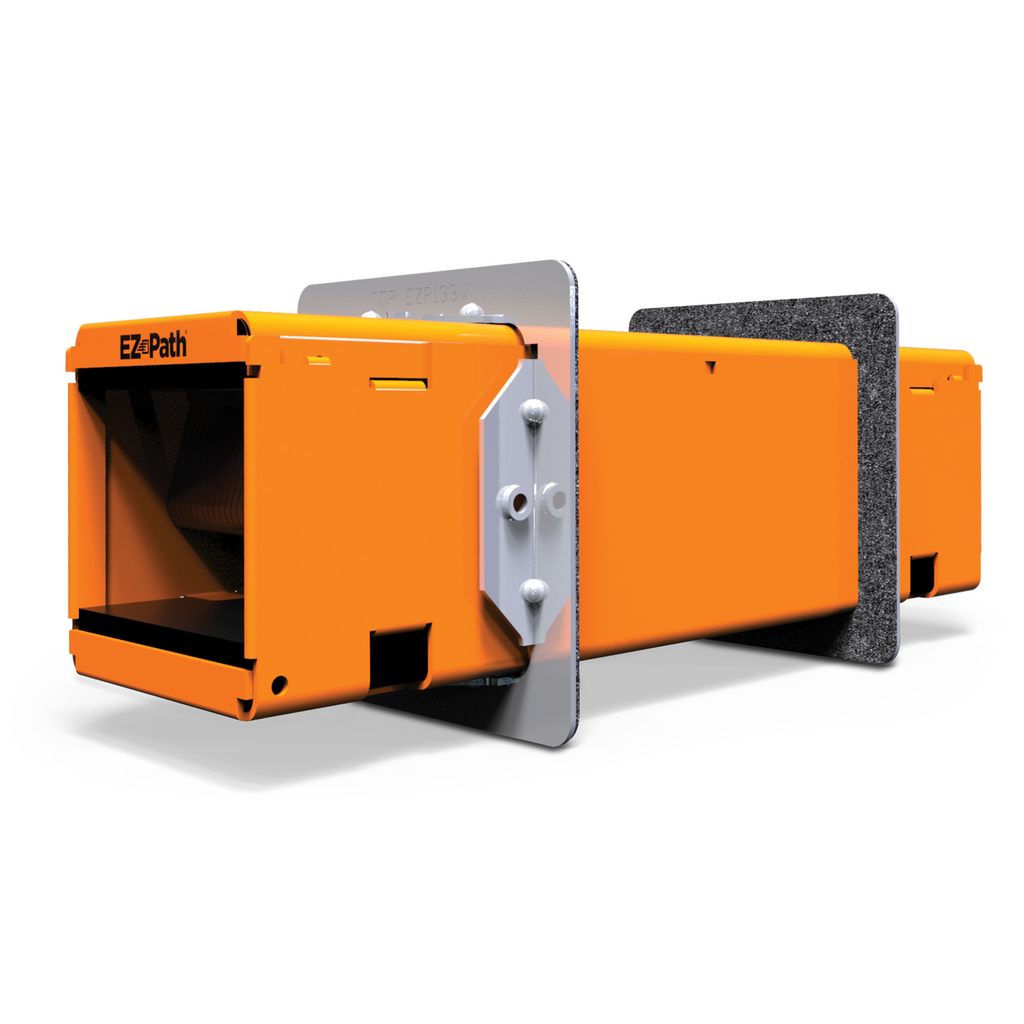

• Includes full conduit attachment kit with device, two conduit attachment plates, and labels

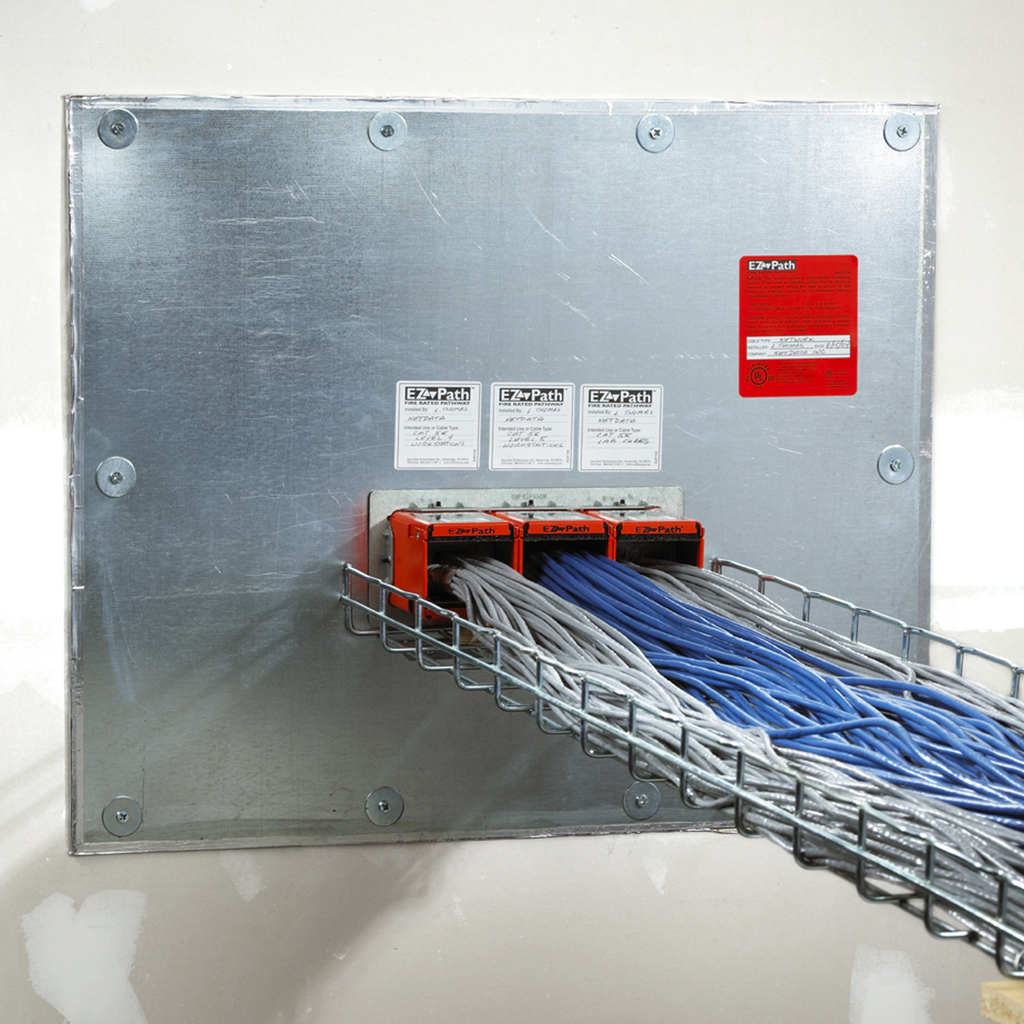

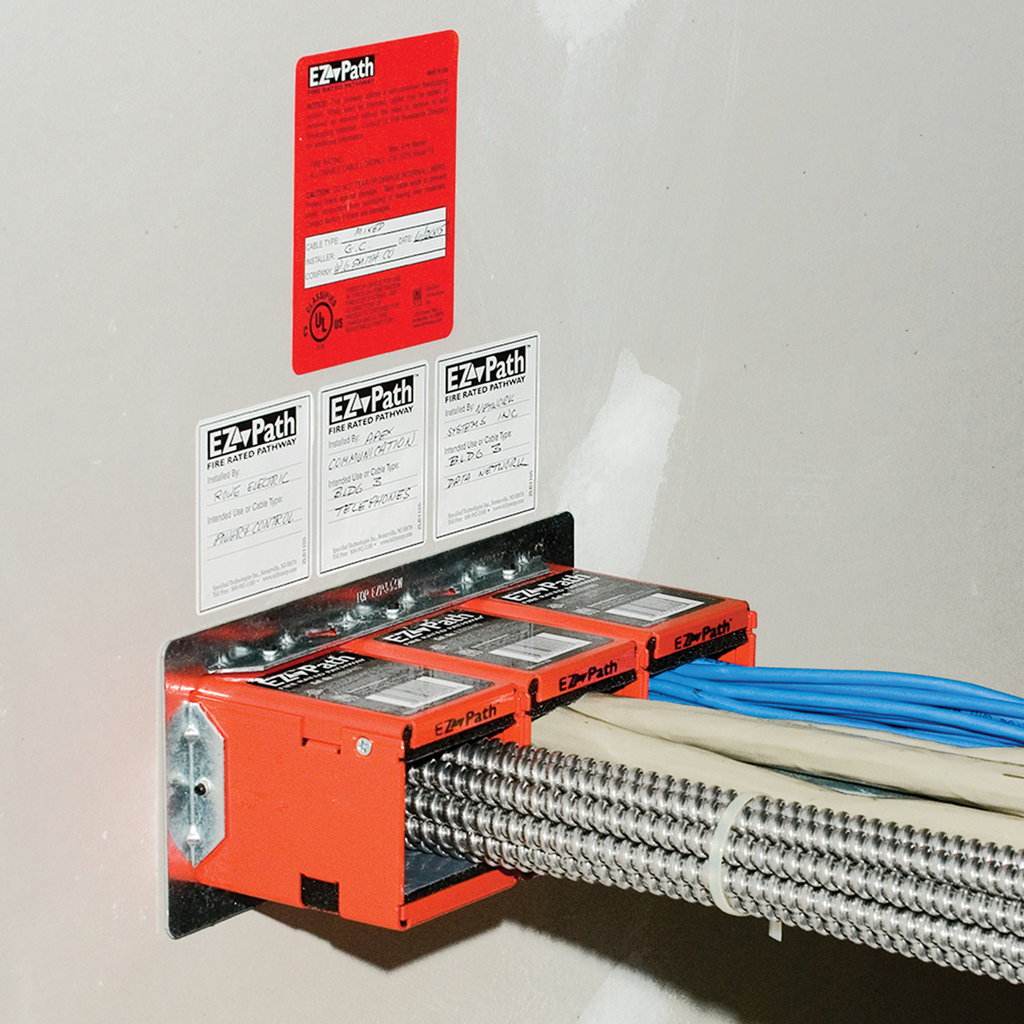

• Compatible with multiple gang wall plates for increased capacity or cable segregation
• UL Tested and Certified to ASTM E814 (UL1479) and CAN/ULC-S115 standards

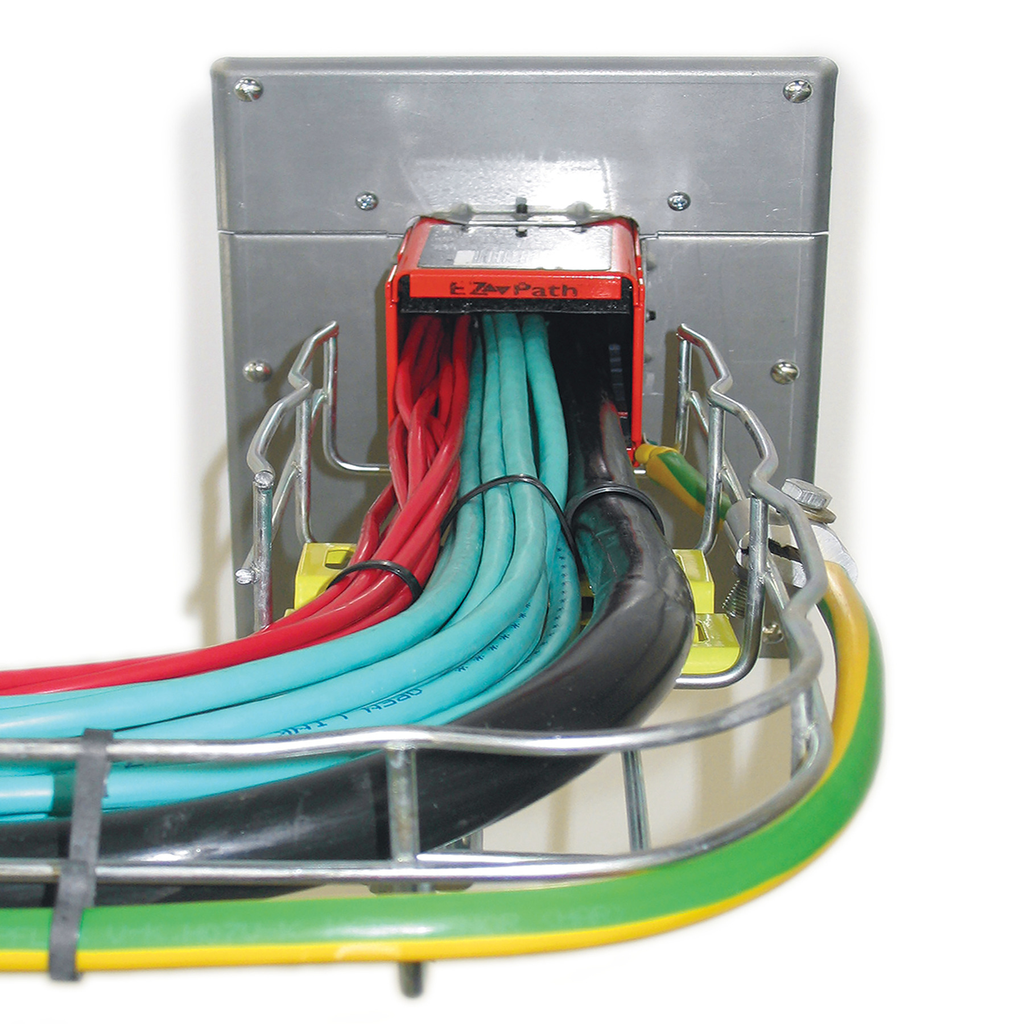

• Designed for electrical and communications cable penetrations through rated barriers
