Features

• All new data comm cable penetrations shall be routed through factory supplied, maintenance-free, fire-rated pathway devices (Ex. EZ Path® Fire Rated Pathways). For existing sleeves where cable fill percentage exceeds listed system specifications, a factory-supplied, fire-rated retrofit device shall be installed. The device shall be a two-piece split design with intumescent materials and allow 50 to 100 percent visual fill. The device shall be UL Certified and tested to ASTM E814 (UL1479) and CAN/ULC-S115.
• Sized for 2 in. and 4 in. metallic sleeves., Designed for cable sleeves and stubs., Professional fit and finish., Safety Orange for easy identification., Retrofit Device for easy code compliance.
• Sized for 2 in. and 4 in. metallic sleeves
• Designed for cable sleeves and stubs
• Professional fit and finish
• Safety Orange for easy identification

Standards and Certifications

• ASTM E814
• UL 1479
• CAN/ULC S115
• ASTM E814 (UL1479)
• CAN/ULC-S115
• FM Approved: No
• UL Certified Firestop: Yes
• FBC System Compatible: No

Applications

• Cables
• Cable Tray

Properties

• Finished Product
• Intumescent
• Low VOC
• No Expiration Paintable Re-enterable
• Sound Barrier
• Zero Maintenance.

Construction Type

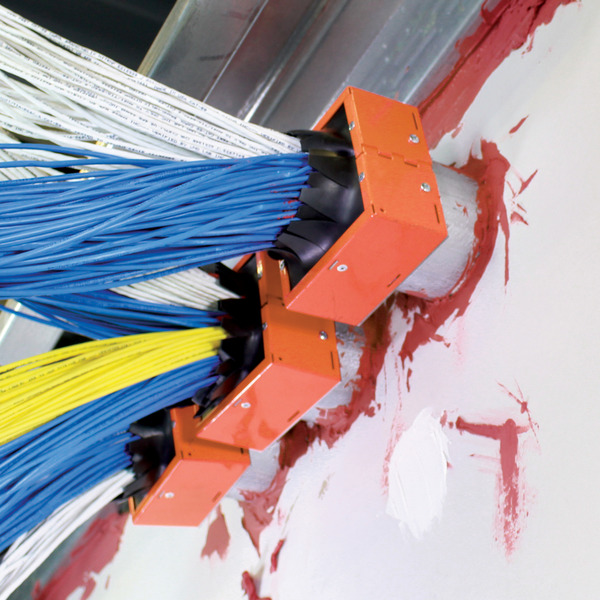

• EZ Path Retrofit Device restores non-compliant overfilled sleeve conditions in walls and floors. Cable capacity ranges from 50 to 100% visual fill in all types of construction

Industry

• Residential
• Commercial
• Industrial
• Construction
• Government

Recommended Use

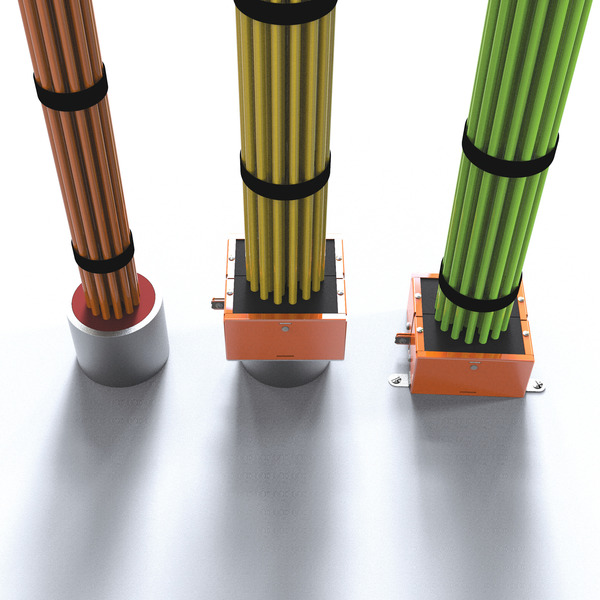

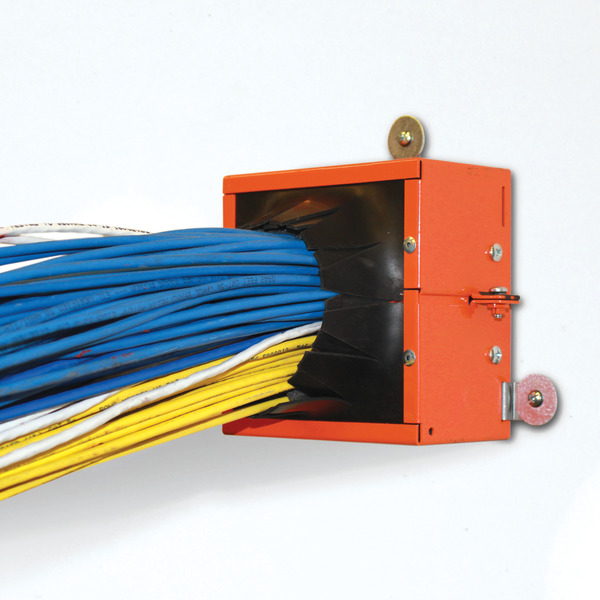

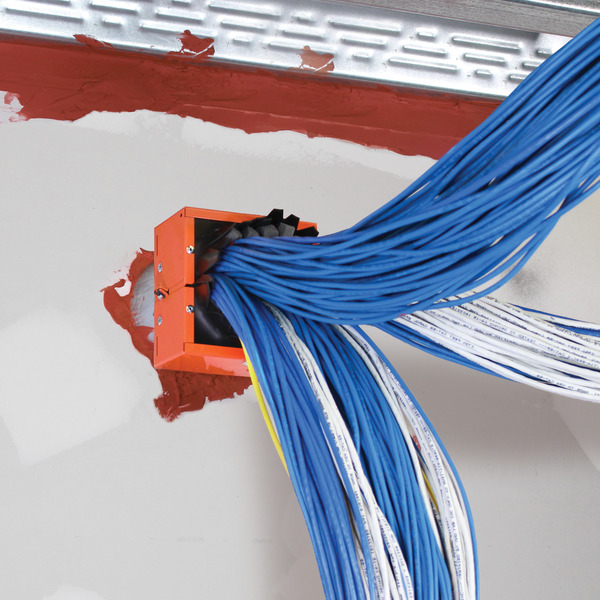

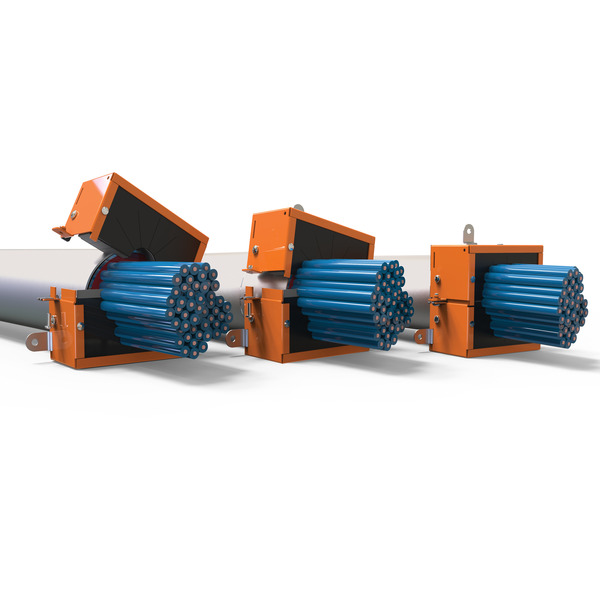

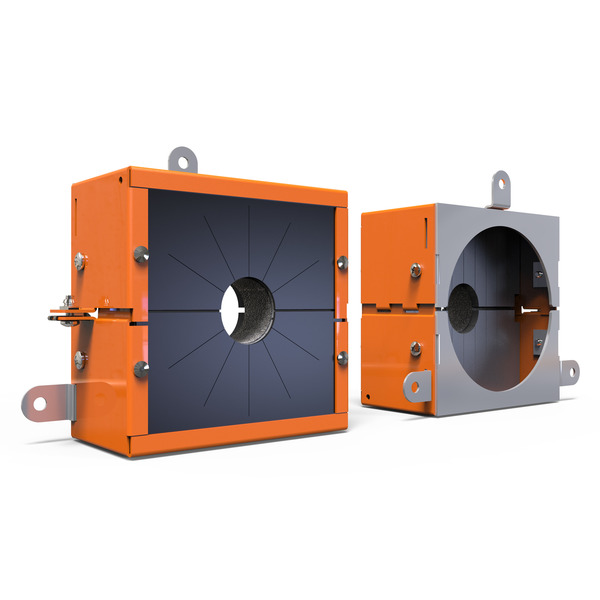

• EZ Path Retrofit Device restores non-compliant overfilled sleeve conditions in walls and floors. Cable capacity ranges from 50 to 100% visual fill. The two-piece split device facilitates installation around existing cable bundles. The steel backplate attaches directly to the end of the steel sleeve. For flush-mounted sleeves, mounting tabs allow for attachment to the substrate.

Specifications

• Country of Origin: USA
• Weight: 2.83 lbs.
• Length: 6.313 in.
• Width: 4.875 in.
• Height: 3.688 in.
• Color: Orange
• Composition: Galvanized Steel, Intumescent
• Material: Galvanized Steel
