EZ-MAX Plus 8 Relay Panel, 120V, 277V and 347V Control Input, (8) 1-Pole (NO /NC) Relay Card with Handle, 30A 120-277VAC, 20A 347VAC, Title 24 Compliant, ASHRAE 90.1 compliant, (0) spaces, with (8) Low Voltage Inputs.
SKU: #35629
Part: #R08BD-L08
UPC: 078477465707
EZ-MAX Plus 8 Relay Panel, 120V, 277V and 347V Control Input, (8) 1-Pole (NO /NC) Relay Card with Handle, 30A 120-277VAC, 20A 347VAC, Title 24 Compliant, ASHRAE 90.1 compliant, (0) spaces, with (8) Low Voltage Inputs.
SKU: #35629
Part: #R08BD-L08
UPC: 078477465707
Description

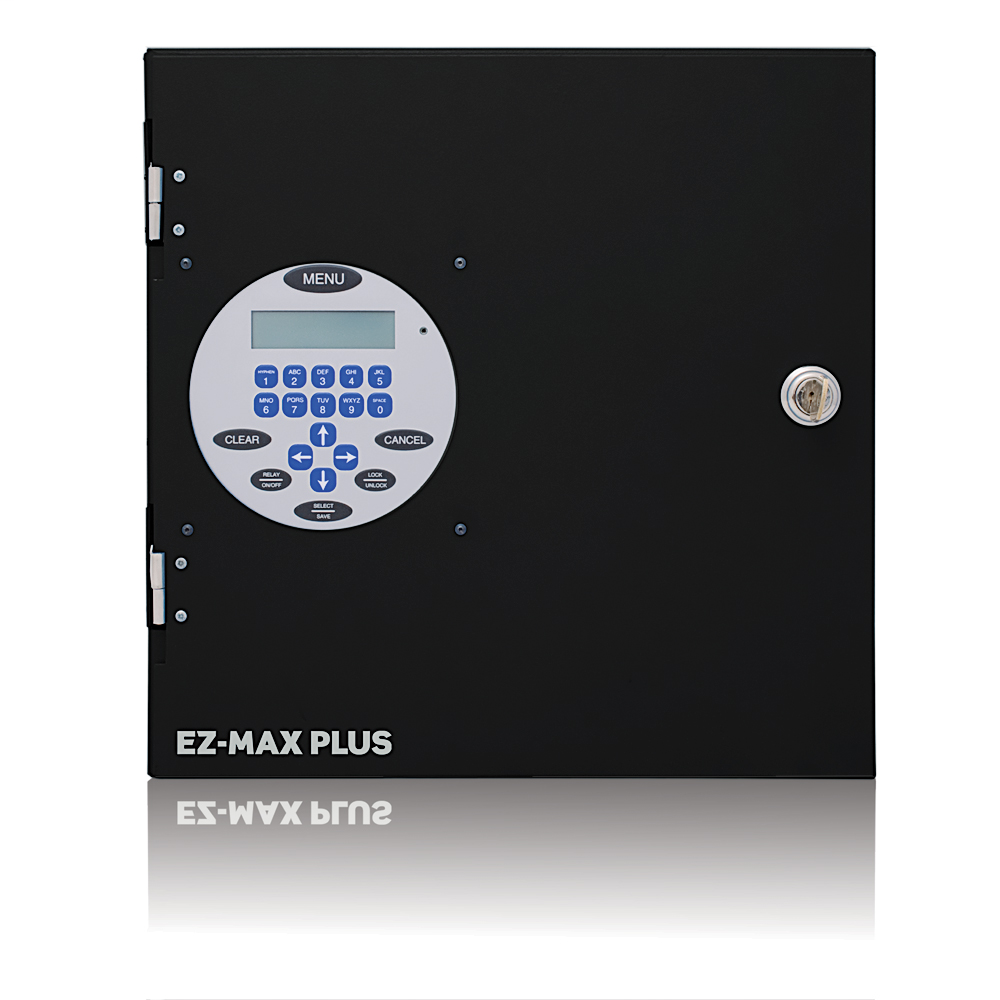

EZ-MAX Plus 8 Relay Panel – Lighting Control Relay Panel
The EZ-MAX Plus 8 Relay Panel is a versatile lighting control relay panel designed for commercial and industrial electrical distribution and lighting solutions. It supports 120V, 277V, and 347V control inputs and includes eight 1-pole (NO/NC) relay cards with handles. This panel is suitable for wire and cable integration within electrical distributor environments and is compliant with Title 24 and ASHRAE 90.1 energy standards, ensuring energy-efficient lighting control. It is designed for flush or surface mounting, making it adaptable to various installation requirements.
Specifications
- Control Input Voltage: 120V, 277V, and 347V
- Relay Cards: 8 (1-Pole, Normally Open/Normally Closed) with handles
- Relay Ratings: 30A at 120-277VAC, 20A at 347VAC
- Low Voltage Inputs: 8
- Mounting Type: Flush or Surface Mount
- Title 24 Compliant
- ASHRAE 90.1 Compliant
- Product Weight: 18.7 lbs
- Manufacturer Part Number: R08BD-L08
Features
- Supports multiple control input voltages (120V, 277V, 347V) for flexible application
- Includes eight relay cards with handles for easy installation and removal
- Compliant with energy efficiency standards Title 24 and ASHRAE 90.1
- Flush or surface mounting options for versatile installation
- Designed for integration with lighting management systems from a reliable switchgear supplier
