EYSEF300, IMC/EMT/Rigid Conduit Sealing Fitting
SKU: #392493
Part: #EYSEF300
UPC: 781381694353
EYSEF300, IMC/EMT/Rigid Conduit Sealing Fitting
SKU: #392493
Part: #EYSEF300
UPC: 781381694353
Description

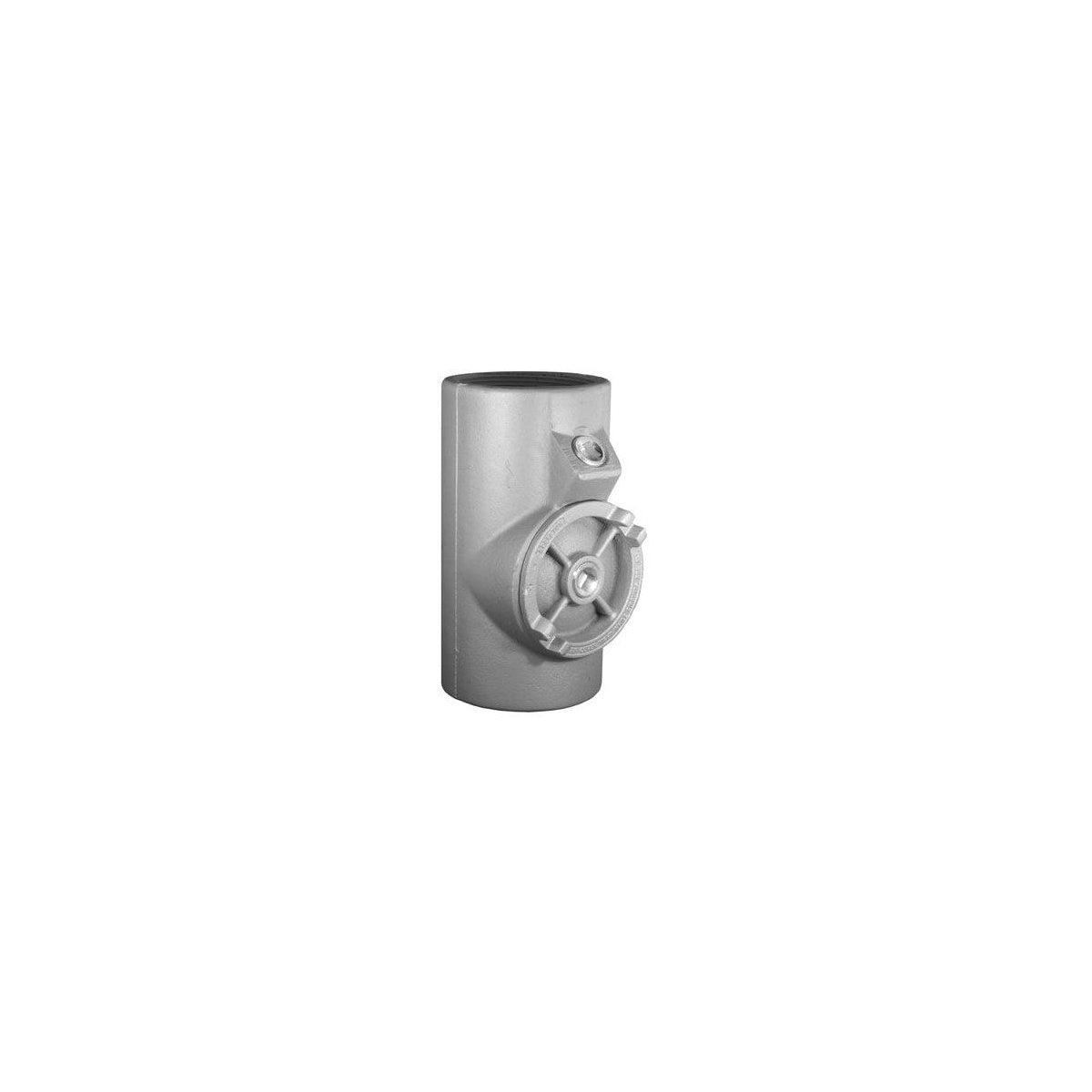

EYSEF300, IMC/EMT/Rigid Conduit Sealing Fitting - Explosionproof Sealing Fitting
The Appleton EYSEF300 is a 40% fill expanded fill sealing fitting designed for use with IMC, EMT, and rigid conduit systems. It is engineered to prevent the passage of gases, vapors, or flames between conduit sections, restricting explosive pressure and accumulation of ignitable gases. Suitable for Class I and II hazardous locations, this sealing fitting is explosionproof, dust-ignitionproof, and rain tight, making it ideal for electrical distributors and switchgear suppliers requiring reliable conduit sealing solutions in demanding environments.
Specifications
- Manufacturer: Appleton
- Manufacturer Part #: EYSEF300
- Material: Chromate finish
- Product Weight: 15.7 lbs
- Conduit Compatibility: IMC, EMT, Rigid Conduit
- Conduit Size: 3 inches (Trade Size)
- UL Listed: Yes (UL Standard 886, UL Listed E10444)
- CSA Certified: Yes (CSA Standard C22.2 No. 30, CSA Certified 065181)
- Explosionproof and Dust-Ignitionproof
- National Electrical Code (NEC) Compliance: Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
Features
- Expanded fill design allowing up to 40% conduit fill in compliance with NEC
- Close turning radius for use in tight conduit runs
- Prevents passage of gases, vapors, or flames within conduit systems
- Restricts accumulation of ignitable gases to confine explosive pressure
- Explosionproof, dust-ignitionproof, and rain tight construction
- Integral smooth, rounded bushing protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Removable nipple for flexible installation in top or bottom hub
