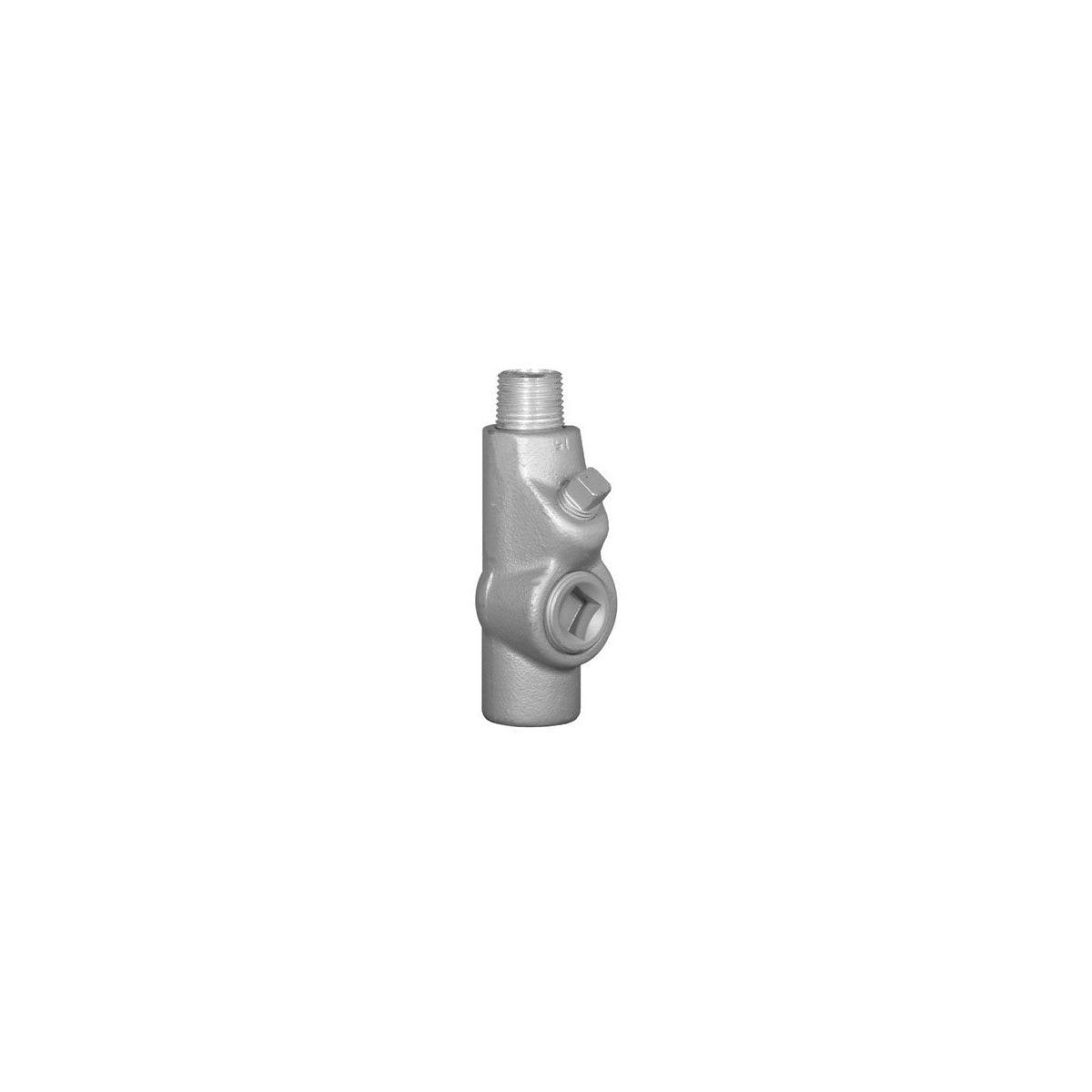

EYM75 IMC/EMT/Rigid Conduit Sealing Fitting for Hazardous Locations

The Appleton EYM75 is a tapered threaded male/female conduit sealing fitting designed for use with threaded IMC, EMT, and rigid metal conduit systems. It is engineered to prevent the passage of gases, vapors, or flames between conduit sections, restricting explosion pressure and ensuring safety in hazardous locations. This fitting is suitable for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers requiring reliable conduit sealing in Class I, II, and III hazardous environments.

Specifications

• Trade Size: 3/4 Inch
• Length: 4.71 Inch
• Turning Radius: 1.19 Inch
• Connection Type: Tapered Threaded Male/Female
• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron
• Mounting Position: Vertical/Horizontal
• Product Weight: 0.93 lb
• Enclosure Classifications: Class I Div 1 and 2 Groups A, B, C, D; Class II Div 1 and 2 Groups E, F, G; Class III
• Applicable Standards: NEC, CEC
• Certifications: UL 886/1203, CSA C22.2

Features

• Explosionproof, dust-ignitionproof, and raintight construction
• Accurately tapped, tapered threads ensure tight, rigid joints and maintain ground continuity
• Removable male nipple allows flexible installation in top or bottom hub
• Designed for sealing vertical or horizontal conduit runs
• Suitable for use in hazardous locations requiring conduit seals within 18 inches of enclosures
• Triple-coat finish for corrosion resistance: zinc electroplate, chromate, and epoxy powder coat
