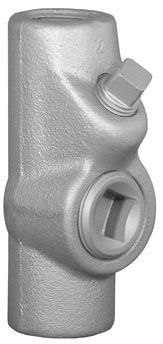

EYA-50 Explosionproof Conduit Seal Fitting

The EYA-50 Explosionproof Conduit Seal Fitting by O-Z Gedney is designed for use with rigid conduit or intermediate metal conduit (IMC) in hazardous locations requiring explosionproof sealing. It is engineered to prevent the passage of gases, vapors, or flames through conduit systems, ensuring safety in classified environments. This fitting is suitable for electrical distributors and lighting solutions providers needing reliable conduit sealing components compatible with wire and cable installations in switchgear applications.

Specifications

• Application: For Rigid Conduit Or IMC
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Connection: Tapered FNPT
• Product Weight: 0.6700 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: EYA-50

Features

• Explosionproof design suitable for hazardous locations
• UL listed for use with Appleton Kwiko A and Crouse-Hinds Chico A sealing compounds
• Compatible with sealing compounds that harden into a dense, water-insoluble mass resistant to petroleum products and heat
• Equipped for vertical conduit runs with proper damming and sealing procedures
• Designed for use with fiber filler to create effective sealing dams preventing gas or flame passage
• Includes tapered female NPT threaded connections for secure conduit attachment
