EXTREME™ Cat 6 QUICKPORT™ Jack QUICKPACK™, 25-pack, Purple – Category 6 Network Jack

The EXTREME™ Cat 6 QUICKPORT™ Jack is designed for high-performance UTP connectivity within QUICKPORT compatible products. Ideal for electrical distributors and lighting solutions providers offering wire and cable and structured cabling systems, this jack supports voice, data, and video applications with Category 6 compliance. It features patented Retention Force Technology™ for consistent performance, rear 180-degree termination, and compatibility with T568A and T568B wiring schemes, making it suitable for commercial and enterprise network installations.

Specifications

• Product Weight: 4.5 lbs
• Color: Purple
• Body Material: High-Impact Fire-Retardant Plastic
• Flammability Class: Rated V-0 Per UL 94
• Country of Origin: United States
• Compliance Standards: ANSI/TIA-568.2-D (Cat 6), ISO/IEC 11801-1 (Class E), EN 50173-1 (Class E), ANSI/TIA-1096-A, c(UL)us Listed (UL 1863), UL 2043 Plenum Certified
• Power over Ethernet Support: IEEE 802.3bt PoE Type 1, 2, 3, 4 (100 watts max), Cisco UPOE/UPOE+ (90 watts max), Power over HDBaseT™ PoH (95 watts max)
• Termination: 110-type insulation displacement connectors (IDC)
• Operating Temperature: -10 ºC to +60 ºC (+14 ºF to +140 ºF)
• Storage Temperature: -40 ºC to +70 ºC (-40 ºF to +158 ºF)
• Maximum Humidity: 95% relative humidity, non-condensing

Features

• Patented Retention Force Technology™ protects tines from damage and increases system longevity
• Unique pair separation towers minimize untwisting and facilitate quicker, easier terminations

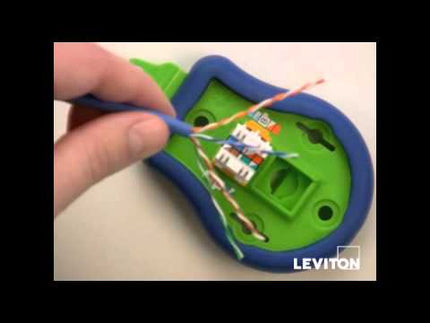

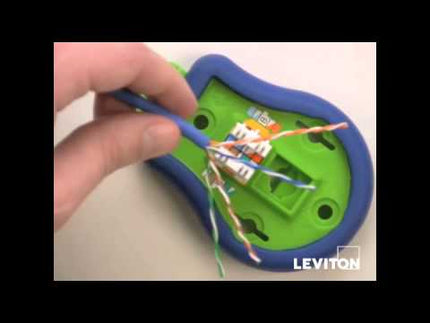

• 180-degree rear punch-down configuration for easy rear termination
• Terminates 26 to 22 AWG solid and stranded conductors, including 26 AWG stranded up to 5 times
• Gas-tight IDC jacks prevent corrosion
• Dual-layer T568B/T568A wiring label simplifies punchdown
• Snap-in style jack with high pullout force dust cap
• Available in 13 ANSI/TIA-606-C compatible colors for color coding and organization
• Available in bulk packages of 25, 150 (with JACKRAPID™ Punchdown Tool), and 200 with Sustainably Smart Packaging (select colors)
• Fire-retardant plastic construction rated UL 94V-0
