Features

• Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
• Terminates 26 AWG stranded conductors up to 5 times
• Capable of multiple re-terminations
• Gas-tight IDC jacks prevent corrosion
• Dual-layer T568B/T568A wiring label simplifies punchdown
• Patented Retention Force Technology protects tines from damage and increases system longevity
• Pair Separation Tower design facilitates separation of conductors and minimizes untwisting
• 180-degree configuration allows for rear termination
• Available in 13 ANSI/TIA-606-C compatible colors for color coding or organization
• Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool
• Select colors available in 200 pack Sustainably Smart Packaging that uses no single-use plastic and is fully recyclable
• Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
• ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications

Patents

• ECD147723-0001
• GB2562884
• HK0410472.5
• MX249737
• MX295578
• TWI285985
• US6786776
• US7547227
• US7980890

Specifications

• Country of Origin: United States
• RoHS Compliant: False

Material Specifications

• Body Color: Crimson Red
• Body Material: High-Impact Fire-Retardant Plastic
• Contact Base Material: Phosphor Bronze
• Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
• Contact Surface Material: 50 microinches thick Gold-Plated

Product Features

• Brand: eXtreme
• Category Rating: Cat 6
• Color: Crimson
• Flammability: Rated V-0 per UL 94
• Module Style: Connector
• Ordering Notes: Bulk Package of 25
• Packaging: QuickPack 25/bag
• Shielding: UTP
• Standards and Certifications: TIA/EIA cULus Listed
• Warranty: 1 Year Limited

Standards and Certifications

• CSA: Certified
• FCC: Part 68 Compliant
• NEC: Article 800 Compliant
• TIA/EIA: TIA-568-B
• UL: cULus Listed

Mechanical Specifications

• Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
• Connector Feature: Channel/Component Rated
• Position / Conductor: 8P8C
• Product ID: Permanently laser-engraved
• Style Name: eXtreme
• Termination Type: 110 Punchdown
• Wiring Standard: T568A T568B

Performance Specifications

• Module Type: Category 6

Downloads

Product Specification

Instruction Sheet

Dimensional Drawing

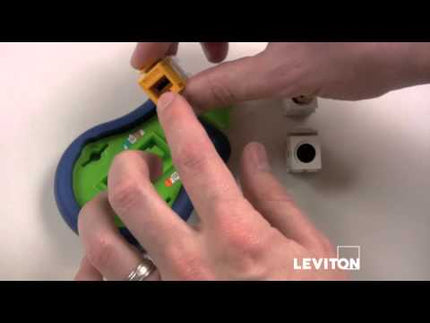

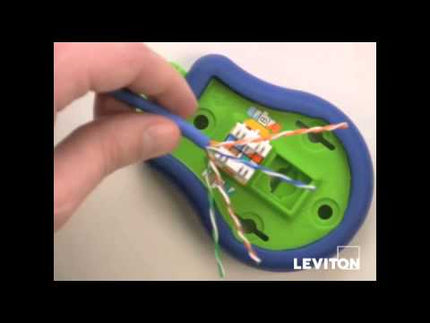

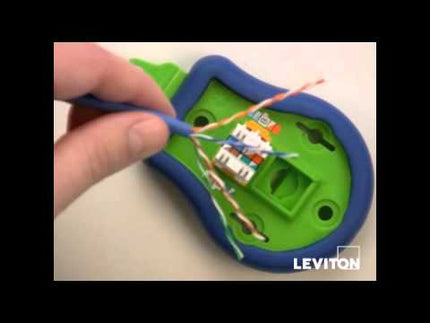

Videos
