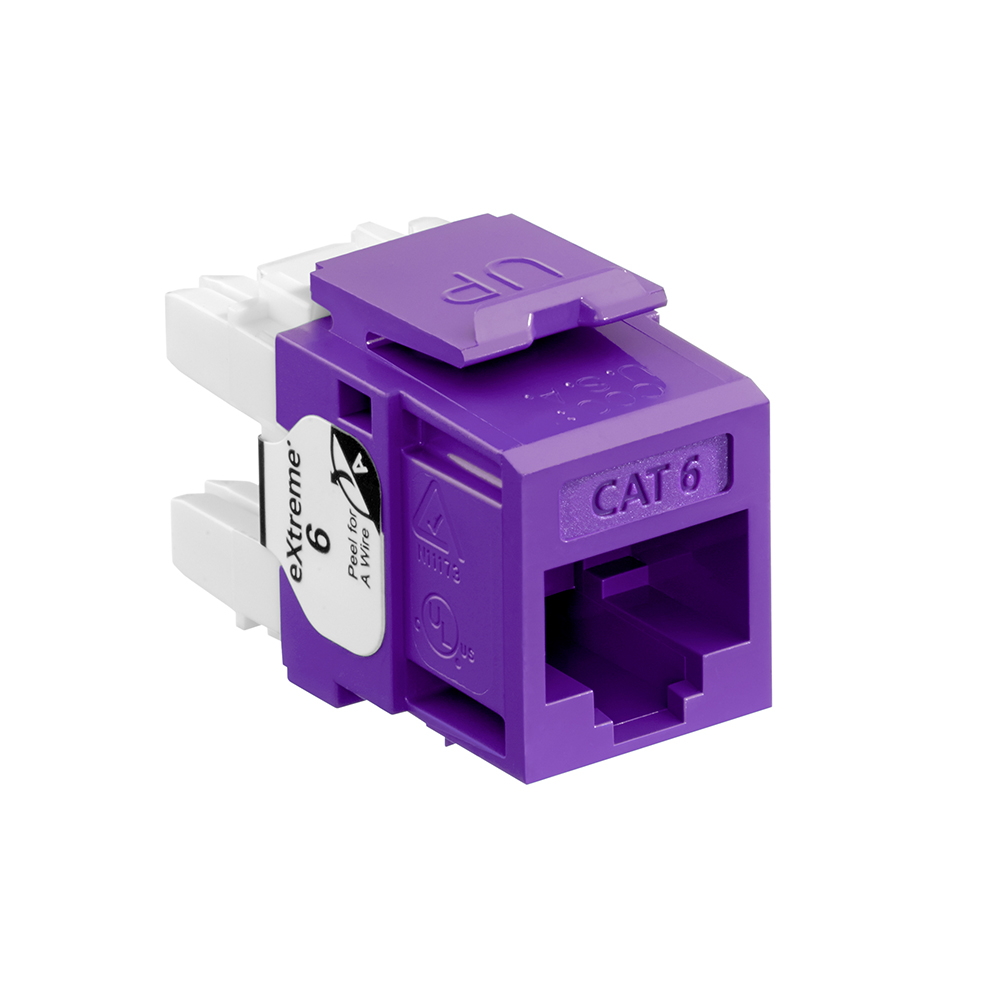

EXTREME™ Cat 6 QUICKPORT™ Jack, Purple – Category 6 Network Jack

The EXTREME™ Cat 6 QUICKPORT™ Jack, Purple, is designed for use with QUICKPORT compatible products, providing reliable UTP connectivity for voice, data, and network applications. This jack incorporates patented Retention Force Technology™ to ensure consistent performance and durability over the system's lifetime. Its 180-degree rear termination configuration and unique pair separation towers facilitate quick, easy, and efficient wiring terminations, making it suitable for electrical distributors and switchgear suppliers managing structured cabling solutions.

Specifications

• Product Weight: 1.06 lbs
• Body Material: High-Impact Fire-Retardant Plastic
• Color: Purple
• Flammability Class: Rated V-0 Per UL 94
• Country of Origin: United States
• Compliance Standards: ANSI/TIA-568.2-D (Cat 6), ISO/IEC 11801-1 (Class E), EN 50173-1 (Class E), ANSI/TIA-1096-A, c(UL)us Listed (UL 1863), UL 2043 Plenum Certified
• Power over Ethernet Support: IEEE 802.3bt PoE Type 1, 2, 3, 4 (up to 100 watts)
• Termination: 110-type insulation displacement connectors (IDC)
• Operating Temperature: -10 ºC to +60 ºC (+14 ºF to +140 ºF)
• Storage Temperature: -40 ºC to +70 ºC (-40 ºF to +158 ºF)
• Maximum Humidity: 95% relative humidity, non-condensing
• Dimensions: 30.6 mm (1.21 in) length, 22.5 mm (0.88 in) width, 22.4 mm (0.88 in) height

Features

• Patented Retention Force Technology™ protects contact tines and increases system longevity
• Unique pair separation towers minimize untwisting and facilitate faster terminations
• 180-degree rear termination configuration with punch field in the back for easy access
• Gas-tight IDC jacks prevent corrosion
• Dual-layer T568A/T568B wiring labels simplify punchdown and support universal wiring schemes
• Compatible with 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
• Capable of multiple re-terminations, including up to 5 times for 26 AWG stranded conductors
• Snap-in style jack compatible with a variety of wallplates, outlets, and field-configurable patch panels
• Available in 13 ANSI/TIA-606-C compatible colors for color coding and organization
• Includes snap-on dust cap with high pullout force to protect terminations
• Supports high megabit and shared-sheath applications
• Compliant with IEEE 802.3bt PoE standards, Cisco UPOE, UPOE+, and Power over HDBaseT™ PoH
