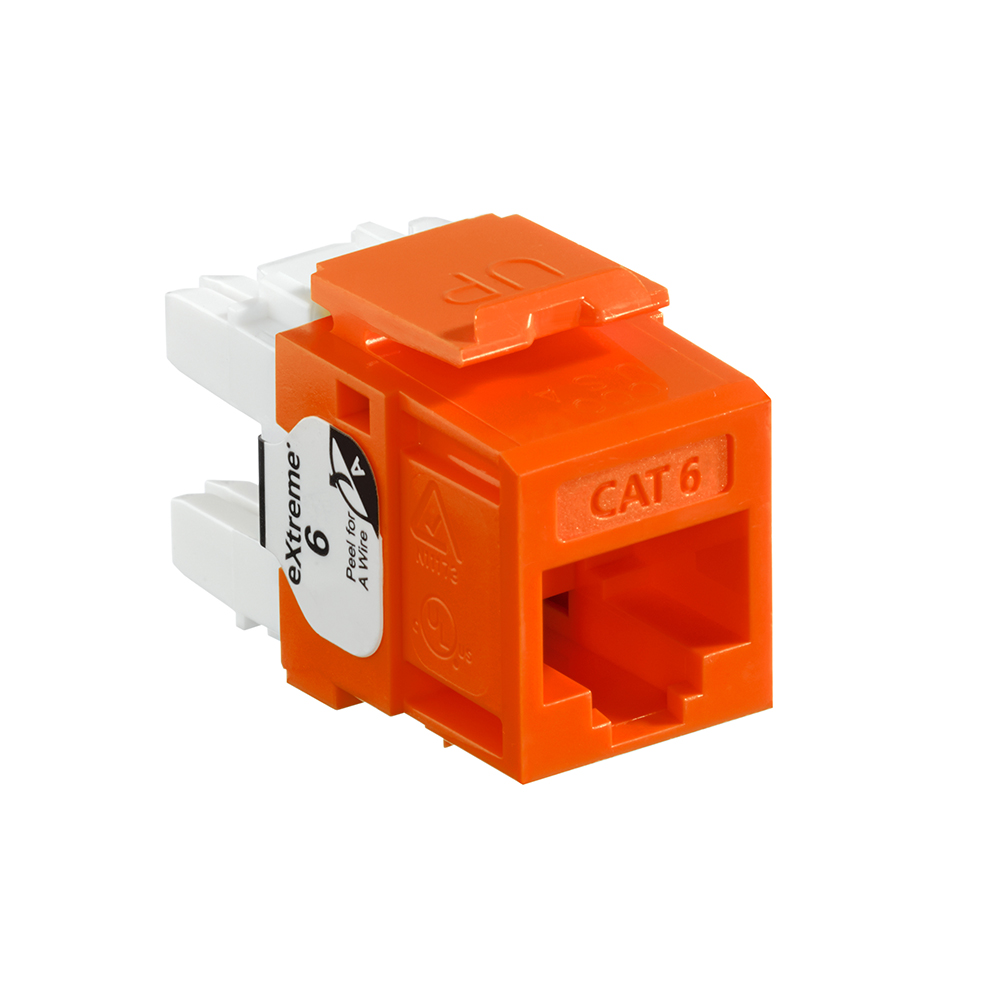

EXTREME™ Cat 6 QUICKPORT™ Jack, Orange - Category 6 Jack

The EXTREME™ Cat 6 QUICKPORT™ Jack, Orange, is designed for use with all QUICKPORT compatible products, providing reliable Category 6 UTP connectivity. Ideal for electrical distributors and switchgear suppliers focusing on structured cabling and networking solutions, this jack features patented Retention Force Technology™ for consistent system performance. Its 180-degree rear punch-down termination and pair separation towers enable quicker, easier terminations suitable for voice, data, and network applications.

Specifications

• Product Weight: 1.0600 lbs
• Body Material: High-Impact Fire-Retardant Plastic
• Color: Orange
• Flammability Class: Rated V-0 Per UL 94
• Country of Origin: United States
• Compliance: ANSI/TIA-568.2-D (Cat 6), ISO/IEC 11801-1 (Class E), EN 50173-1 (Class E)
• Listings: c(UL)us Listed (UL 1863), UL 2043 Plenum Certified
• Power over Ethernet: IEEE 802.3bt PoE Type 1, 2, 3, 4 (100 watts max)
• Termination: 110-type insulation displacement connectors (IDC), rear termination
• Operating Temperature: -10 ºC to +60 ºC (+14 ºF to +140 ºF)
• Storage Temperature: -40 ºC to +70 ºC (-40 ºF to +158 ºF)
• Maximum Humidity: 95% relative humidity, non-condensing

Features

• Patented Retention Force Technology™ protects tines from damage and increases system longevity
• Unique pair separation towers facilitate conductor separation and minimize untwisting
• 180-degree configuration allows for rear punch-down termination
• Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
• Capable of multiple re-terminations
• Gas-tight IDC jacks prevent corrosion
• Dual-layer T568B/T568A wiring label simplifies punch-down wiring
• Snap-on dust cap with high pullout force for protection
• Available in 13 ANSI/TIA-606-C compatible colors for color coding and organization
• Supports high megabit and shared-sheath applications
• Compliant with IEEE 802.3 PoE Type 1, 2, 3, 4 (100 watts max), Cisco UPOE and UPOE+ (90 watts max), Power over HDBaseT™ PoH (95 watts max)
