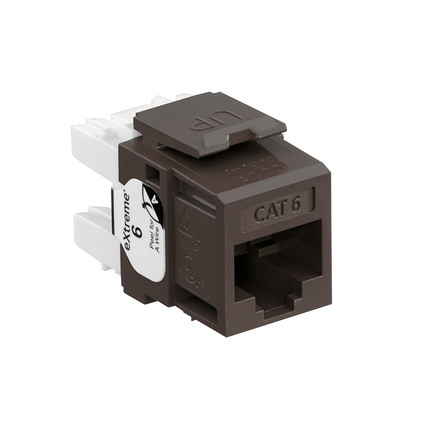

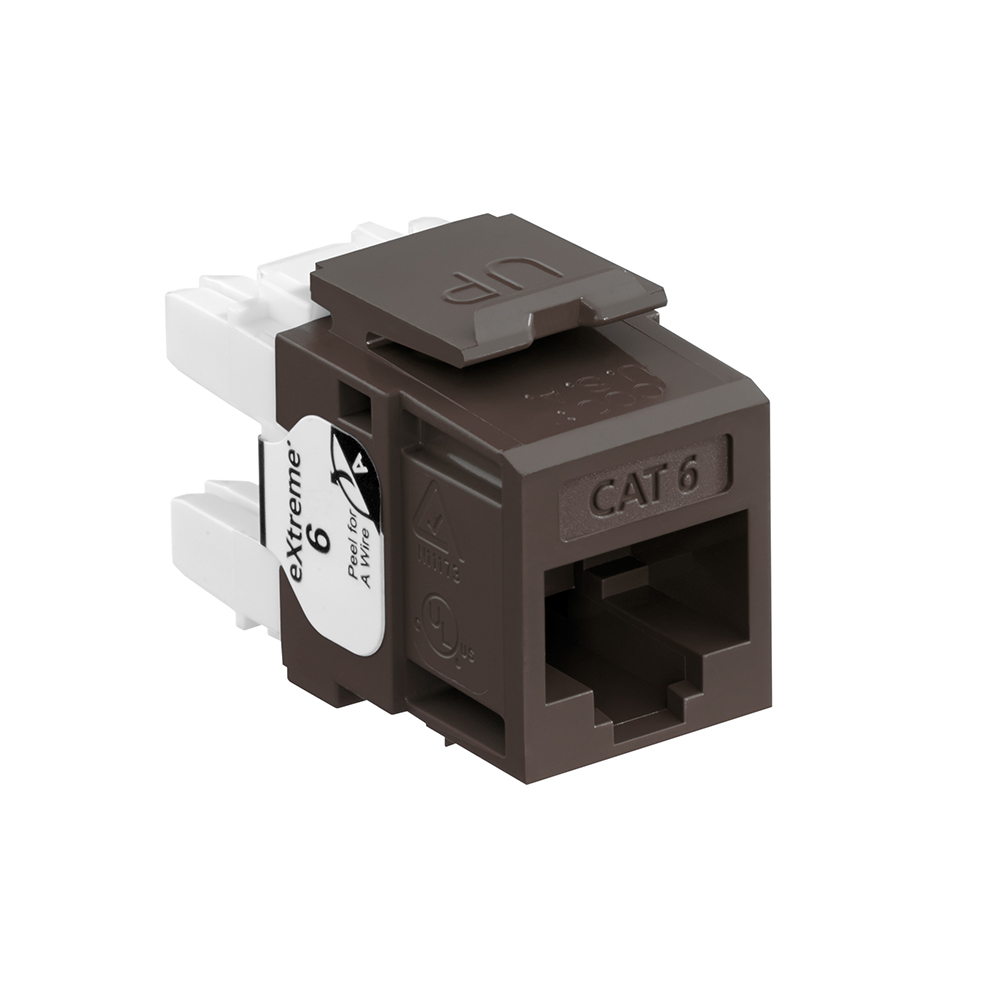

EXTREME™ Cat 6 QUICKPORT™ Jack, Brown - Category 6 Network Jack

The EXTREME™ Cat 6 QUICKPORT™ Jack is engineered for use with all QUICKPORT compatible products, providing reliable connectivity for voice, data, fax, and internet applications. This Category 6 jack features patented Retention Force Technology™ to ensure consistent performance throughout the system's lifespan. Designed with a 180-degree rear termination punch field and unique pair separation towers, it allows for quicker, easier wire terminations. Ideal for electrical distributors and switchgear suppliers supporting structured cabling and networking solutions.

Specifications

• Product Weight: 1.0600 lbs
• Color: Brown
• Body Material: High-Impact Fire-Retardant Plastic
• Flammability Class: Rated V-0 Per UL 94
• Country of Origin: United States
• Compliance: ANSI/TIA-568.2-D (Cat 6), ISO/IEC 11801-1 (Class E), EN 50173-1 (Class E)
• Certifications: c(UL)us Listed (UL 1863), UL 2043 Plenum Certified, ETL Verified for IEEE 802.3 PoE Type 1-4 (100 watts max)
• Termination: 110-type insulation displacement connectors (IDC)
• Operating Temperature Range: -10 °C to +60 °C (14 °F to 140 °F)
• Storage Temperature Range: -40 °C to +70 °C (-40 °F to 158 °F)
• Humidity: 95% relative humidity, non-condensing
• Dimensions: 30.6 mm (L) x 22.5 mm (W) x 22.4 mm (H)

Features

• Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
• Supports multiple re-terminations for flexible installations
• Gas-tight IDC jacks prevent corrosion, ensuring long-term reliability
• Dual-layer T568B/T568A wiring label simplifies punchdown and wiring scheme selection
• Patented Retention Force Technology protects tines from damage and enhances system longevity
• Pair Separation Tower design facilitates conductor separation and minimizes untwisting
• 180-degree rear termination configuration allows easy access and installation
• Snap-on dust cap with high pullout force protects terminations
• Fits in a variety of telecommunications wallplates, outlets, and field-configurable patch panels
• Compliant with IEEE 802.3bt PoE Type 1, 2, 3, 4 (up to 100 watts)
• Available in 13 ANSI/TIA-606-C compatible colors for color coding or organization
• Manufactured in the USA with high-impact, fire-retardant plastic rated UL 94V-0
