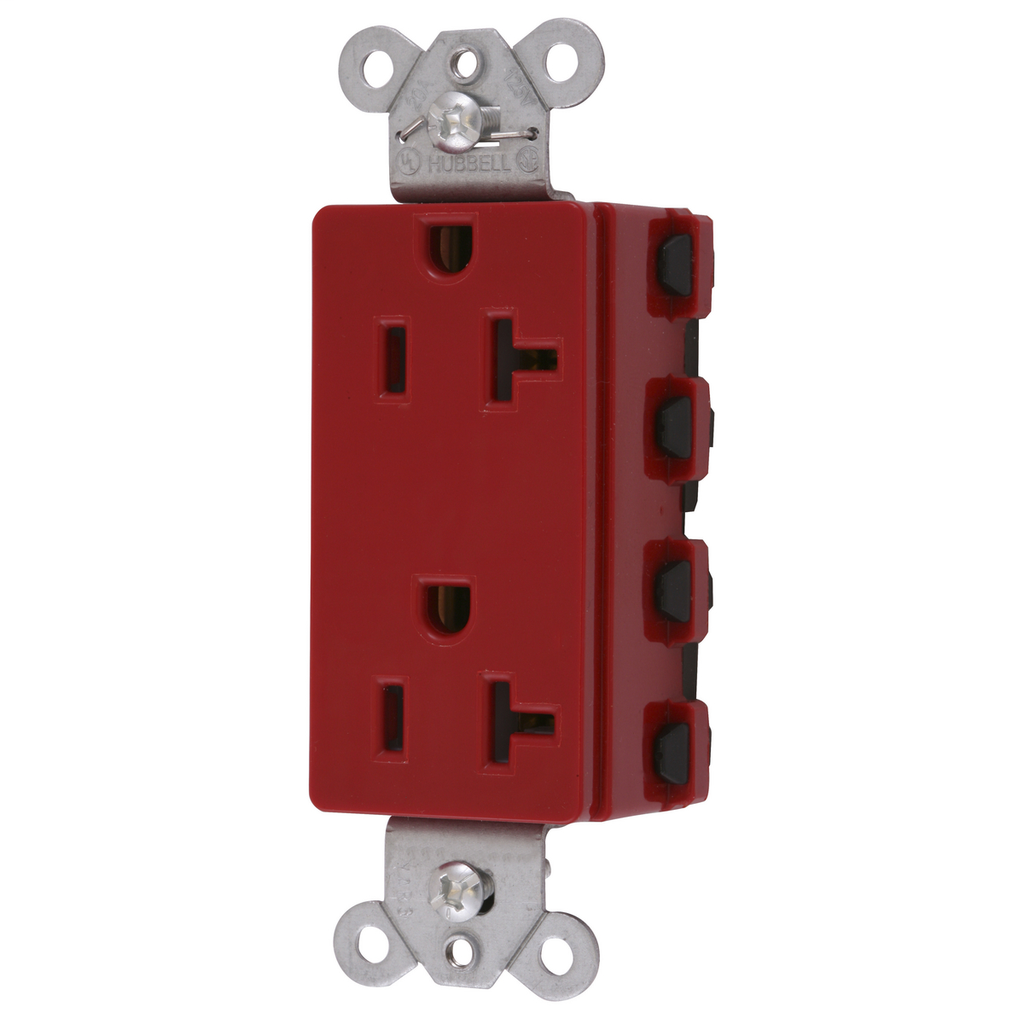

Extra Heavy Duty SNAPConnect Decorator Receptacles
SKU: #153255
Part: #SNAP2162RA
UPC: 783585248035
Extra Heavy Duty SNAPConnect Decorator Receptacles
SKU: #153255
Part: #SNAP2162RA
UPC: 783585248035
Next day delivery
Description
Extra Heavy Duty SNAPConnect Decorator Receptacles - Specification Grade Electrical Distributor
The Extra Heavy Duty SNAPConnect Decorator Receptacles by Hubbell Wiring Device-Kellems are specification grade, Style Line® decorator duplex receptacles designed for demanding electrical applications. These modular receptacles feature a flush nylon face and require a SNAPConnect® pigtailed connector for installation, providing efficient and safe wiring solutions ideal for commercial construction, hospitality, education, and OEM applications. The receptacles support 20 amperes at 125 volts, conform to NEMA 5-20R standards, and are suitable for indoor dry environments unless additional protection is applied. Their design incorporates SNAPConnect® technology to eliminate exposed live terminals, enhancing safety during installation and maintenance.
Specifications
- Application: Extra Heavy Duty Specification Grade
- Amperage: 20 amperes
- Current: 20 amperes
- Voltage Rating: 125 volts
- NEMA Rating: 5-20R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Number of Phases: 1
- Material: Nylon
- Mounting: Screw Mount
- Connection: Connectorized
- Dimensions (L x W x H): 3.28 in x 1.64 in x 1.1 in
- Product Weight: 2.0000 lbs
- Dielectric Strength: Withstands 2,000V minimum
- Operating Temperature: -40 degrees Celsius minimum
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Color: Red
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: SNAP2162RA
Features
- Available in standard, tamper-resistant, and LED power indicating versions
- Abuse resistant nylon construction for extra heavy use applications
- Stainless steel auto-ground for reliable grounding
- SNAPConnect® technology eliminates exposed live terminals for safer installation
- Complies with NEC® 406.12 and NEC® 517.18(c) for tamper resistance and emergency circuit identification
- Compatible with SNAPConnect® right angle pigtailed connectors
- Designed for commercial, healthcare, education, hospitality, and OEM environments
- Assembled in USA
