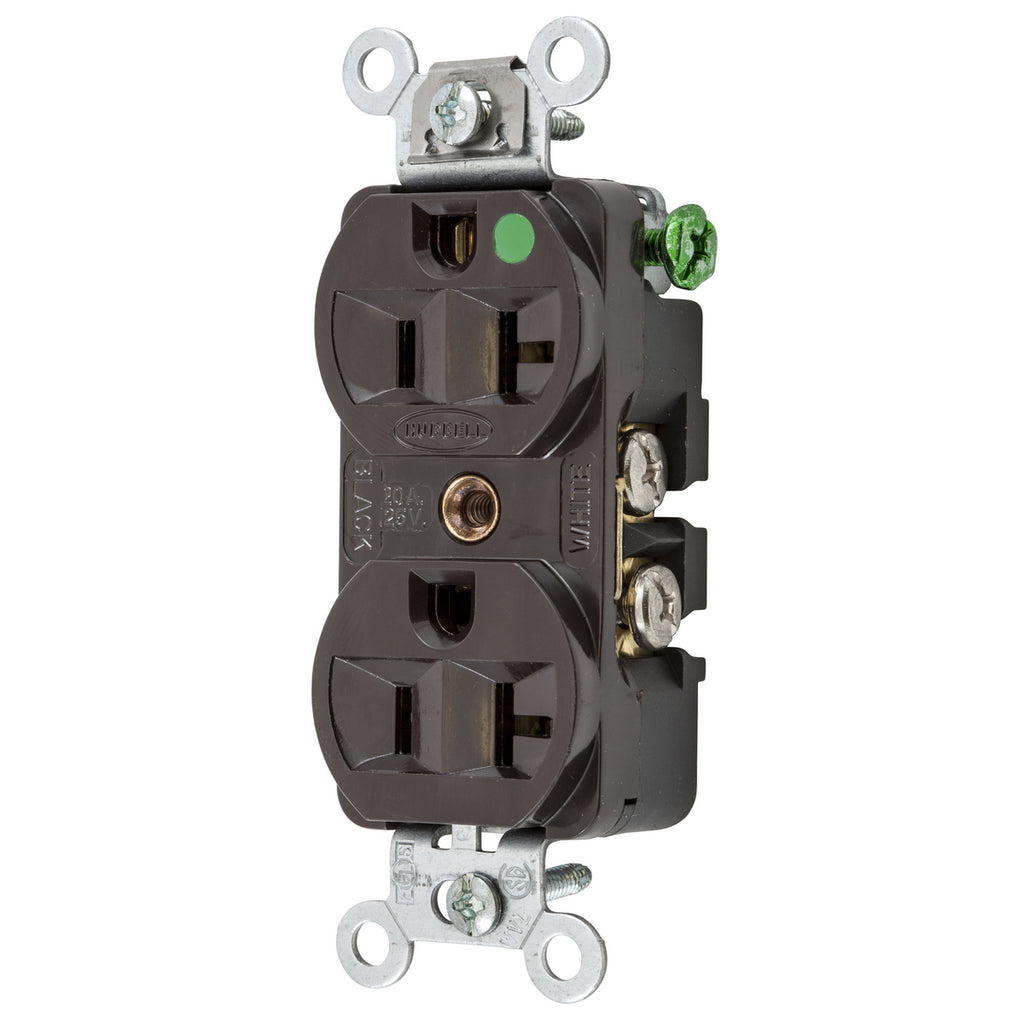

Extra Heavy Duty HBL8300H Hospital Grade Receptacle

The Hubbell Extra Heavy Duty HBL8300H is a compact, hospital-grade duplex receptacle designed for reliable electrical connections in demanding environments. It is suitable for use by electrical distributors and switchgear suppliers in healthcare and other commercial applications requiring durable and compliant wiring devices. This 2-pole, 3-wire grounding receptacle supports 20 amperes at 125 volts with a NEMA 5-20R configuration. Constructed from thermoplastic material and finished in brown, it offers robust performance and compatibility with standard wiring practices.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL8300H
• Amperage: 20 amperes
• Current: 20 amperes
• Voltage: 125V
• NEMA Configuration: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Number of Phases: 1
• Material: Thermoplastic
• Color: Brown
• Dimensions (L x W x H): 3.28 in x 1.33 in x 1.05 in
• Operating Temperature: -40 degrees Celsius
• Product Weight: 0.25 lbs
• UPC: 07835851589

Features

• Compact hospital grade duplex receptacle designed for reliable grounding and electrical safety
• Flush thermoplastic polyester face with back and side wiring options for flexible installation
• Complies with NEC requirements for hospital-grade devices
• Suitable for use in healthcare, commercial, and industrial electrical wiring systems
• Durable thermoplastic construction for long service life
• Supports 20A, 125V electrical loads with NEMA 5-20R configuration
