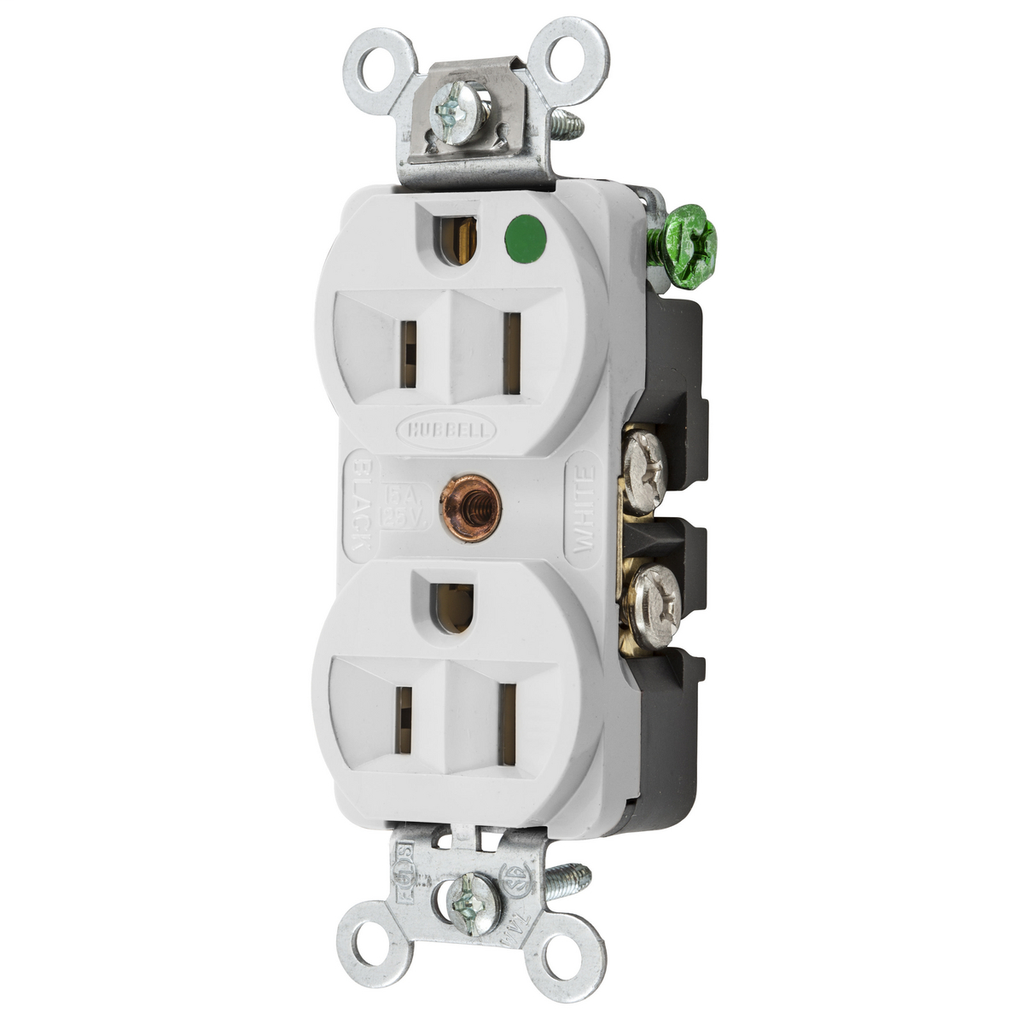

Features

• Slender/compact design
• Impact-resistant finder groove face
• Triple wipe contacts

Specifications

General

• Application: Slender/Compact Hospital Grade
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 0.5
• Item Type: Traditional Duplex
• Material: Thermoplastic
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: Hospital Grade
• Style: Finder Groove Face
• Type: Receptacle
• UPC: 783585016207

Dimensions

• Dimensions: 3.28 in x 1.33 in x 1.05 in
• Display Size: Slender/Compact
• Height: 1.05 in
• Length: 3.28 in
• Weight: 0.2 lb
• Width: 1.33 in

Electrical Ratings

• Amperage Rating: 15 A
• Connectivity: Back and Side Wired Screw Terminals
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 1875 W

Conductor Related

• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

• Nema Rating: 5-15R

Logistics

• Carton Quantity: 10 EA

Performance

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-0
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Industry Standard(s)

• CSA Certified, C22.2, No. 42 File 285
• Fed. Spec. W-C-596
• NEMA® WD-6 Compliant
• UL Listed to UL498 File No. E2186
