Extra Heavy Duty HBL8200HRED Hospital Grade Receptacle

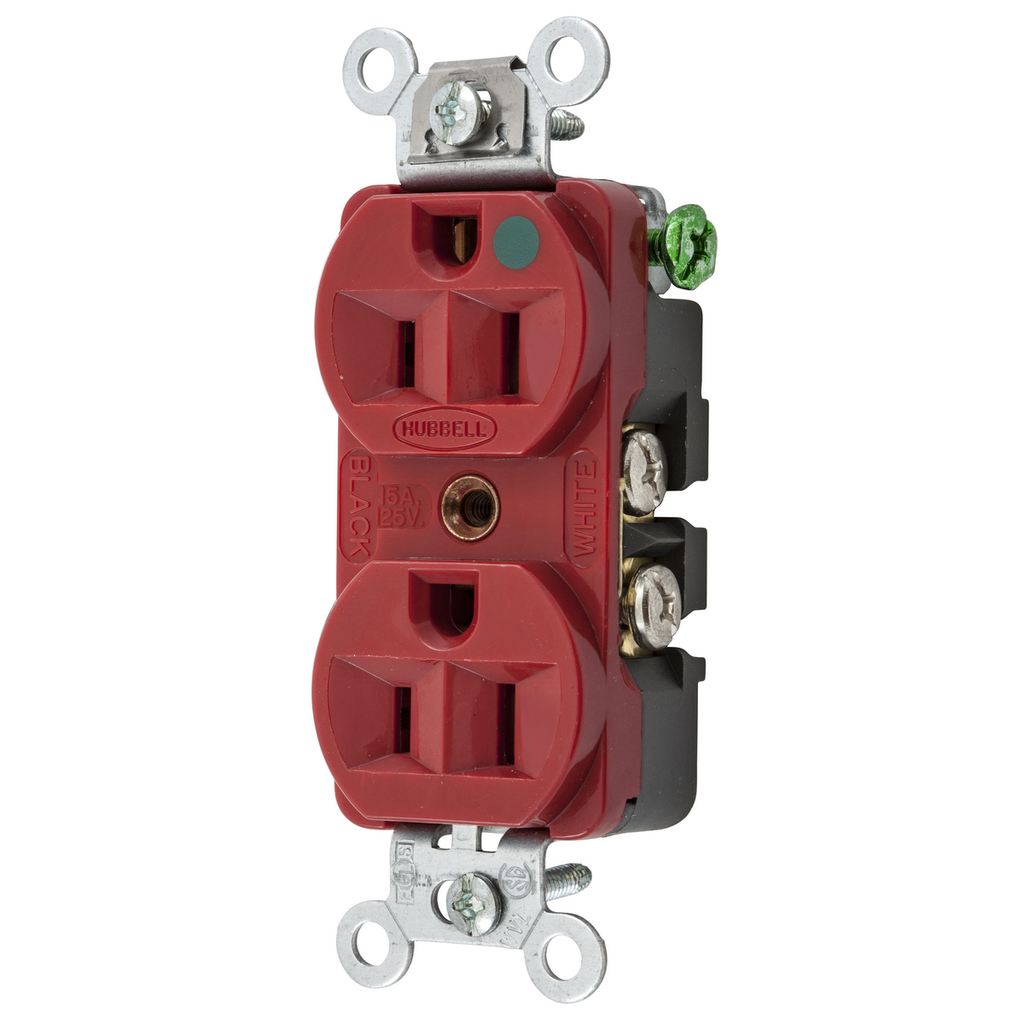

This Hubbell Wiring Device-Kellems Extra Heavy Duty HBL8200HRED is a hospital grade straight blade duplex receptacle designed for reliable electrical distribution in medical and commercial environments. It supports 15 amperes at 125 volts and is suitable for use in indoor dry locations unless protected by additional means. This receptacle is ideal for electrical distributors and lighting solutions providers requiring durable, high-quality wire and cable termination devices and switchgear components.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL8200HRED
• Application: Hospital Grade
• Amperage Rating: 15 A
• Current: 15 amperes
• NEMA Rating: 5-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Number of Phases: 1
• Material: Nylon
• Color: Red
• Mounting: Screw Mount
• Connection: Screw Terminals
• Dimensions (L x W x H): 3.28 in x 1.33 in x 1.05 in
• Product Weight: 2.55 lbs
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40 degrees Celsius
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means

Features

• Compact hospital grade design for medical and commercial electrical systems
• Straight blade duplex receptacle configuration
• Red nylon construction for durability and easy identification
• Designed for 2-pole, 3-wire grounding connection
• Screw terminal connection ensures secure wiring
• Mounts with screws for stable installation
• Withstands high dielectric voltage for safety and reliability
• Suitable for use in indoor dry environments
