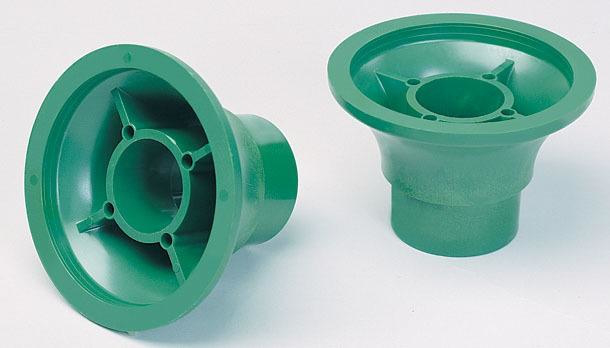

Expandable Roller Half by Greenlee – Cable Tray Roller Component

The Expandable Roller Half is a component designed for use in cable tray roller systems, enabling adjustable roller widths from 8 inches (203.2 mm) to 48 inches (1219.2 mm). It is part of a highly economical system that utilizes 1-1/2 inch steel conduit spindles combined with high-impact ABS plastic rollers and simple mounting clips. This product is suitable for electrical distributors and switchgear suppliers seeking reliable components for wire and cable management and lighting solutions installations.

Specifications

• Manufacturer Part #: 31925
• UPC: 783310319252
• Product Weight: 0.67 lbs
• Roller Width Range: 8" (203.2 mm) to 48" (1219.2 mm) adjustable
• Material: High-impact ABS plastic
• Compatible Spindle Size: 1-1/2" steel conduit

Features

• Rollers snap in and out of clips quickly for easy installation and maintenance
• Mounting clips fit onto the top of most I-Beam and C-Channel cable trays without disturbing existing wiring
• Expandable design allows customization of roller width using the roller halves and 3" PVC conduit
• Compatible with Greenlee Cable-Cream lubricant, which is safe for all cable insulation types
