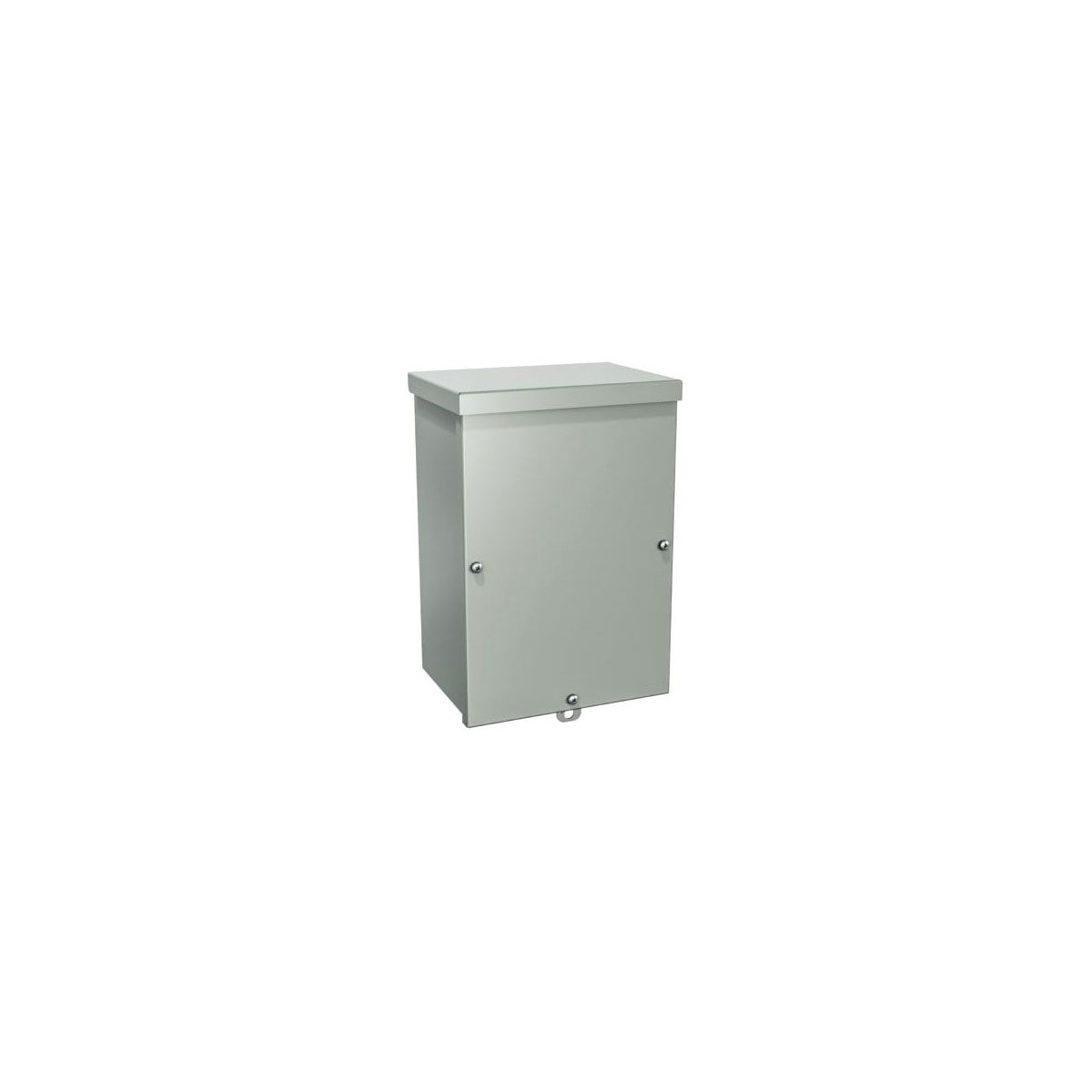

EXM MANF. 1300101006 Weatherproof Junction Boxes 3R

The EXM 1300101006 weatherproof junction box is designed for outdoor and indoor electrical installations where protection against rain, sleet, snow, or dripping water is required. Suitable for use by electrical distributors and switchgear suppliers, this enclosure safeguards electrical equipment in demanding environments, providing reliable protection in lighting solutions, wire and cable installations, and general electrical distribution systems.

Specifications

• Material: High quality steel
• Finish: Powder paint, electrostatically applied on a pretreated base
• Paint Color: ANSI/ASA 61 smooth gray
• Certification: CSA Certified, UL Listed
• Standards: NEMA / EEMAC 3R, IP32
• Weight: 9 lbs
• Mounting: Four internal mounting holes provided
• Cover: Slips on and fastened by screws
• Design Feature: Top of enclosure serves as a dripshield

Features

• Weatherproof protection for outdoor and indoor use where moisture is present
• Durable powder-coated finish resists corrosion
• Knock-outs available for pole mounting options
• Compact and robust construction suitable for various electrical applications
