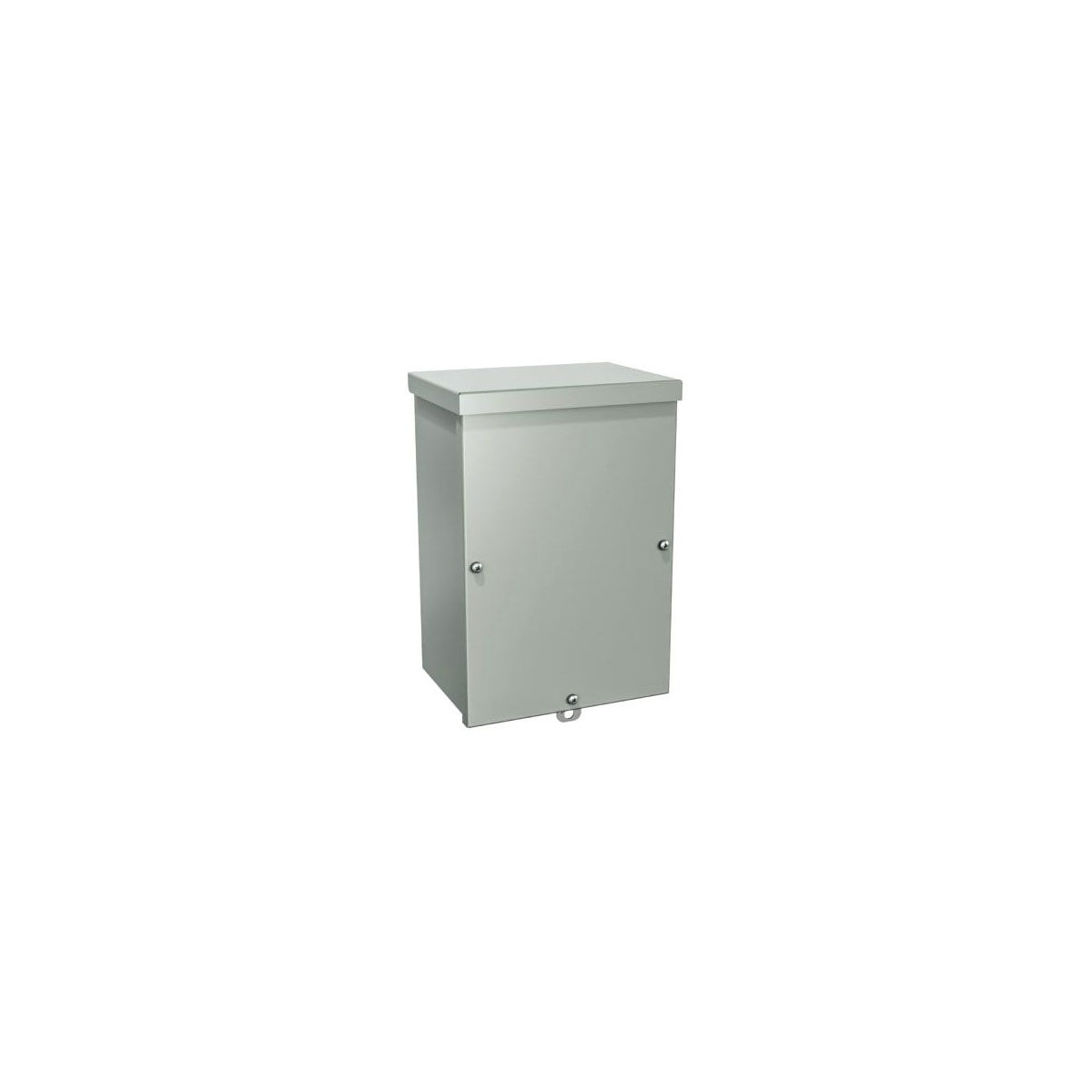

EXM MANF. 1300080806 Weatherproof Junction Boxes 3R

The EXM MANF. 1300080806 is a weatherproof junction box designed for outdoor installations or indoor environments where dripping water is a concern. This enclosure protects electrical equipment against rain, sleet, and snow, making it suitable for electrical distributors and lighting solutions requiring durable wire and cable protection. It complies with CSA certification, UL listing, and meets NEMA/EEMAC 3R and IP32 standards.

Specifications

• Material: High quality steel
• Finish: Powder paint, electrostatically applied on a pretreated base
• Paint Color: ANSI/ASA 61 smooth gray
• Weight: 7 lbs
• Mounting: Four internal mounting holes provided
• Cover: Slips on and fastened by screws
• Top Design: Serves as a dripshield
• Certifications: CSA Certified, UL Listed, NEMA/EEMAC 3R, IP32
• Manufacturer Part Number: 1300080806
• UPC: 717678008213

Features

• Weatherproof design suitable for harsh outdoor conditions
• Protects electrical components from rain, sleet, and snow
• Durable powder-coated finish for corrosion resistance
• Easy access cover secured by screws for maintenance
• Knock-outs available for pole mounting options

Downloads & Links

• Spec Sheet
