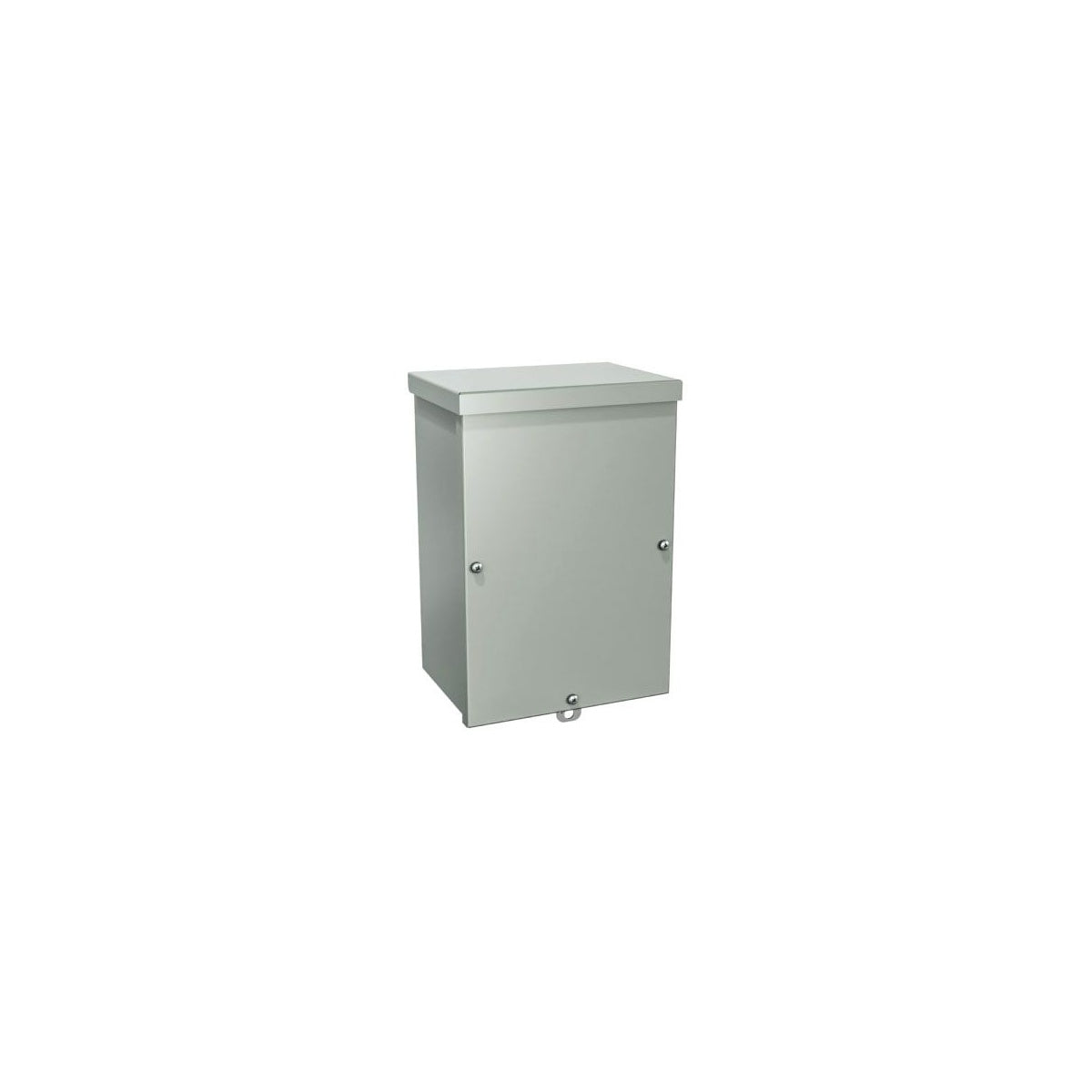

EXM MANF. 1300080804 Weatherproof Junction Boxes 3R

The EXM 1300080804 weatherproof junction box is designed for outdoor and indoor electrical installations where protection against rain, sleet, and snow is required. Suitable for use by electrical distributors and switchgear suppliers, this enclosure safeguards wiring and components in environments exposed to dripping water. It is ideal for applications demanding reliable weatherproof protection in lighting solutions and wire and cable management systems.

Specifications

• Material: High quality steel
• Finish: Powder paint, electrostatically applied on a pretreated base
• Paint Color: ANSI/ASA 61 smooth gray
• Certification: CSA Certified, UL Listed, NEMA / EEMAC 3R / IP32
• Weight: 6 lbs
• Manufacturer Part #: 1300080804

Features

• Top of enclosure serves as a dripshield to prevent water ingress
• Cover slips on and is fastened by screws for secure closure
• Four internal mounting holes provided for easy installation
• Knock-outs available for pole mounting option

Downloads & Links

• Spec Sheet
