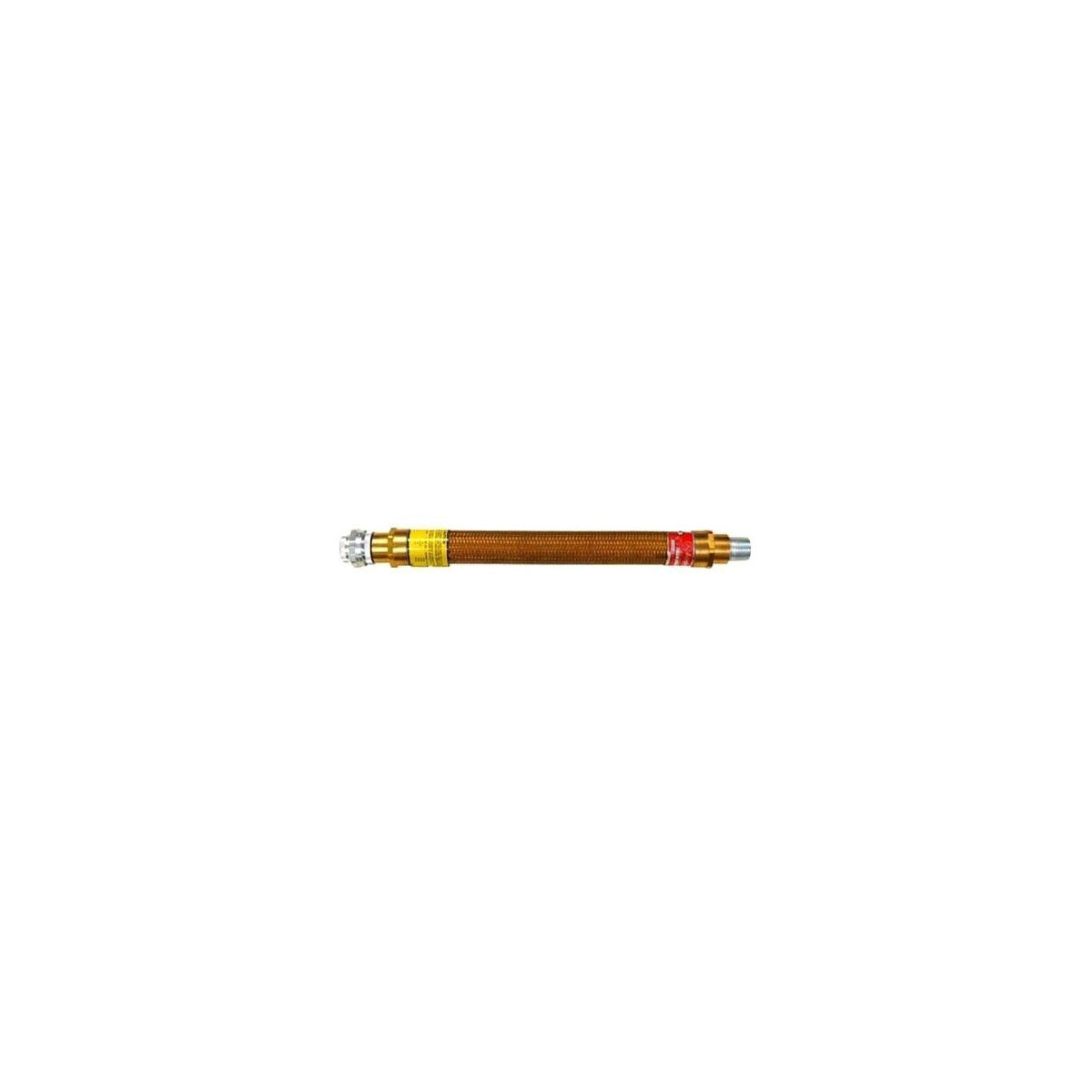

EXLK133 Explosionproof Flexible Conduit Coupling

The EXLK133 is an explosionproof flexible conduit coupling designed for hazardous and wet location applications. It is suitable for use with threaded rigid metal conduit and intermediate metal conduit (IMC), providing a secure and durable connection in environments requiring strict electrical safety compliance. This product is ideal for electrical distributors and switchgear suppliers seeking reliable conduit fittings that meet rigorous standards for explosion and dust ignition protection.

Specifications

• Trade Size: 1/2 Inch
• Fitting Material: Brass (End), Zinc Plated Steel (Union/Nipple)
• Material: Bronze (Outer Braid), Brass with Insulating Liner (Inner Core)
• End Type: (2) Female
• Length: 33 Inch
• Enclosure Class: Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class I Zone 1 and 2 Group IIA IIB IIC, Class III
• Approval: UL 886/1203, CSA C22.2
• Type: Heavy Duty
• Constructional Feature: Explosionproof/Dust Ignitionproof, Water Tight
• Bending Radius: 10 Inch
• Ambient Temperature Rating: -40 to 302 ¬∞F
• Finish: Natural
• Application: Hazardous/Wet Location
• Applicable Standard: NEC/CEC
• Product Weight: 1.6 lbs

Features

• Includes one removal male nipple and one removal union for ease of installation and maintenance
• Designed for heavy-duty use in hazardous environments
• Water-tight construction ensures protection against moisture ingress
• Complies with NEC and CEC standards for electrical installations
