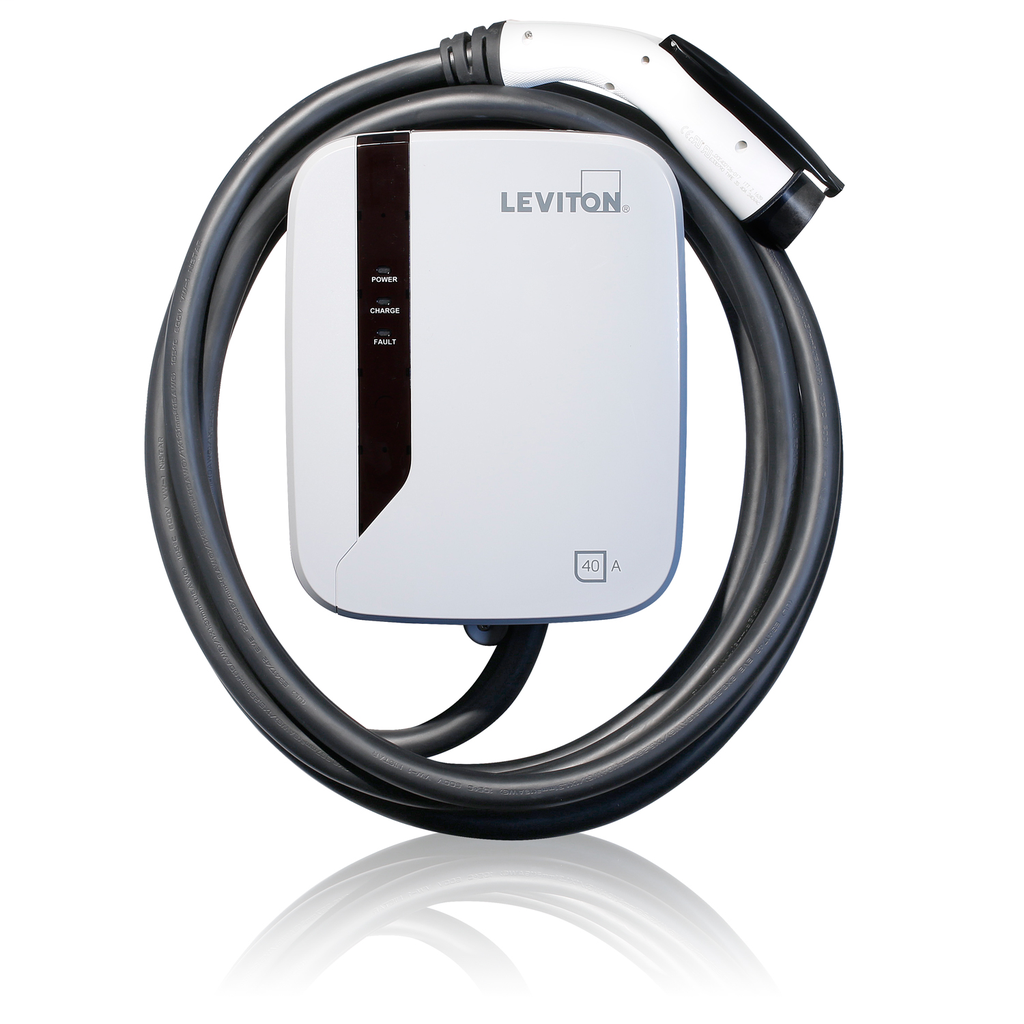

Evr-Green e40 Electric Vehicle Charging Station, 40A, 208-240VAC, 9.6kW Output, NEMA Type 3R Enclosure, 25' Charging Cable, Hardwired, Includes Mounting Bracket
SKU: #29891
Part: #EVR40-B25
UPC: 078477788813
Evr-Green e40 Electric Vehicle Charging Station, 40A, 208-240VAC, 9.6kW Output, NEMA Type 3R Enclosure, 25' Charging Cable, Hardwired, Includes Mounting Bracket
SKU: #29891
Part: #EVR40-B25
UPC: 078477788813
Description
Specifications
Material Specifications
- Enclosure Cover Material: Thermoplastic
- Charge Connector Cord: UL Type EV
Warranty
- Warranty: 1-Year Limited
Electrical Specifications
- Amperage: 40 A
- Breaker: 50A
- Output Power: 9.6kW(40A@240VAC)
- Charge Connector: SAEJ1772™ Charge Connecor on 25' Cable
- Voltage: 100 VDC
Environmental Specifications
- Operating Humidity: 0 Pct to 95 Pct Relative, Non-Condensing
- Operating Temperature: -30°C to 50°C
- Storage Temperature: -40°F to +176°F (-40°C to +80°C)
Downloads
Product BulletinProduct Bulletin - French
Installation Manual
Electric Vehicle Charge Time Comparison
