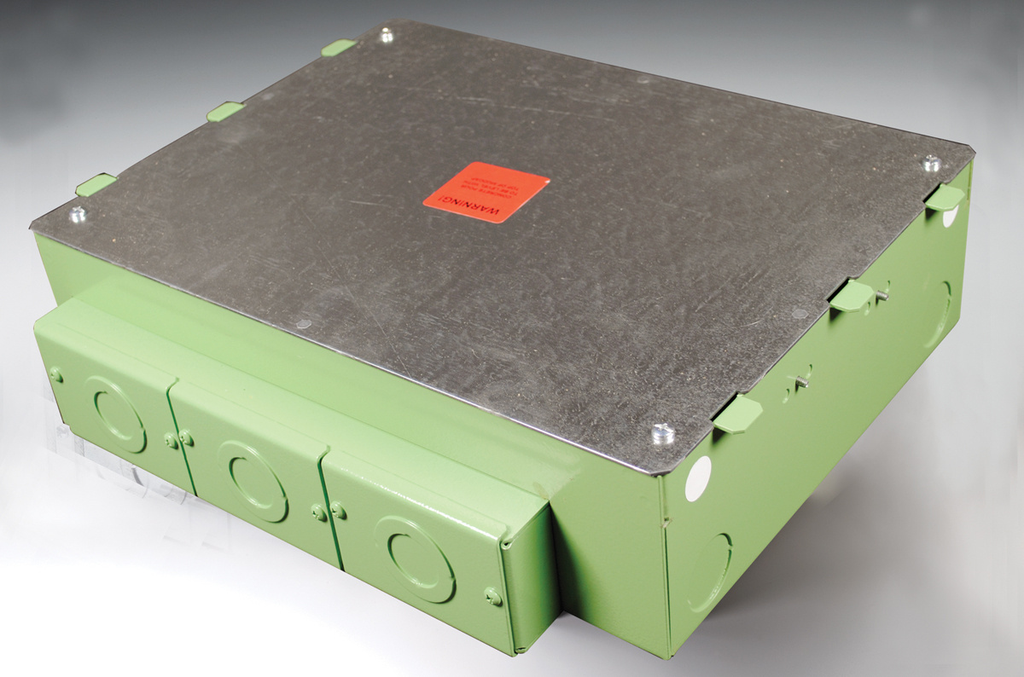

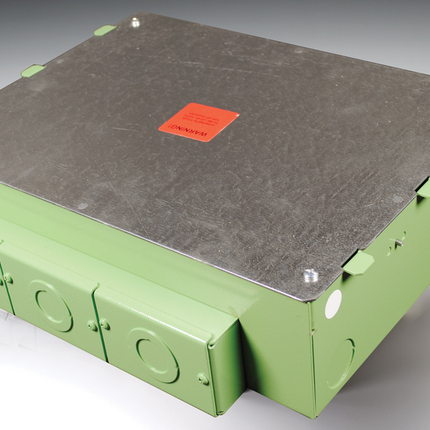

Evolution™ Series Six Gang On-Grade Floor Box - Floor Box Solutions

The Evolution™ Series Six Gang On-Grade Floor Box by Wiremold is designed for versatile electrical and communication wiring needs in commercial office spaces, conference rooms, stages, and entertainment venues. This floor box supports large capacity audio/video, power, and communication services, making it an ideal solution for evolving service requirements. Suitable for on-grade floor applications, it features a durable steel construction with a finished interior and removable modules for easy service reconfiguration. The product supports efficient installation in multiple floor types including wood, concrete, and raised floors, and is engineered to be compatible with a wide range of device plates.

Specifications

• Name: Evolution™ Series Six Gang On-Grade Floor Box
• Manufacturer Part #: EFB6S-OG
• Material: Steel
• Color: Green
• Dimensions: Width 13.75 in, Depth 16.13 in, Height 4.13 in
• Cubic Capacity: 32 in³
• Cable Entry: Knockouts
• Construction: Assembled
• Made in USA: Yes
• Country of Origin: United States
• Product Weight: 18.03 lbs
• Order Minimum: 1 unit

Features

• Multi-functional capabilities supporting large capacity audio/video, power, and communication services
• Removable modules for easy access and reconfiguration of services without disconnecting wiring
• Finished white painted interior for professional appearance
• Compatible with standard size device plates including Pass & Seymour® TradeMaster plates
• Adjustable pre- and post-concrete pour installation with TopGuard™ protection to keep out water, dirt, and debris
• Built-in cable management guides to organize cables and free hands during device activation
• Sliding doors with auto-close feature reduce trip hazards and wrap cables when closed
• High capacity furniture feed designed for concrete, wood, and raised floor applications
• Wide range of knockout sizes from ¾" to 2" trade size for flexible cable entry
• Compatible with a wide range of communications and A/V devices from leading manufacturers
• Supports plug load control up to 30 feet when used with compatible wireless RF receptacles
• Fire classified for up to two hours in fire-rated applications
