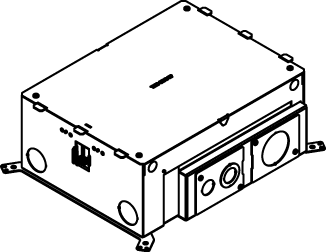

Evolution™ Series Eight Gang Floor Box – Floor Box for Electrical and Communication Wiring

The Evolution‚Ñ¢ Series Eight Gang Floor Box by Wiremold is designed to provide a high-capacity, multi-functional floor solution ideal for commercial offices, conference rooms, stages, and entertainment venues. This floor box supports large capacity audio/video, power, and communication services with a fully finished interior and removable modules for easy access and reconfiguration of services. Suitable for installation in concrete, raised, and wood floor applications, it is compatible with standard size wall plates and Wiremold Walkerflex Modular Wiring System, making it a versatile option for evolving electrical distributor and lighting solutions.

Specifications

• Product Name: Evolution‚Ñ¢ Series Eight Gang Floor Box
• Manufacturer: Wiremold
• Manufacturer Part #: EFB8S
• Material: Steel
• Color: White
• Dimensions: Width 12.75 in, Height 6.0 in, Depth 16.13 in
• Cubic Capacity: 27.5 in¬≥
• Cable Entry: Knockouts (multiple trade size knockouts ranging from 3/4" to 2")
• Construction: Assembled
• Weight: 21.24 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• High capacity floor box with 8-gang size to accommodate power, communication, and A/V devices
• Fully finished interior with removable modules providing easy access for reconfiguring services
• Designed for use in concrete, raised, and wood floor applications; fully adjustable pre- and post-concrete pour
• Accepts standard single-, double-, and triple-gang wall plates from leading manufacturers
• Durable 180¬∞ articulating hinge allows covers to open fully and lie flat, reducing tripping hazards
• Includes cable management guides for organized cable routing and protection
• Features a tunnel system allowing cable pass-through between compartments
• Meets ADA Accessibility Guidelines, with trim flange designed for floor surface level changes
• Suitable for use in air handling spaces per NEC Section 300-22(c)
• TopGuard‚Ñ¢ Protection on covers meets UL scrub water exclusion requirements for various floor coverings
• Compatible with Wiremold Walkerflex Modular Wiring System
