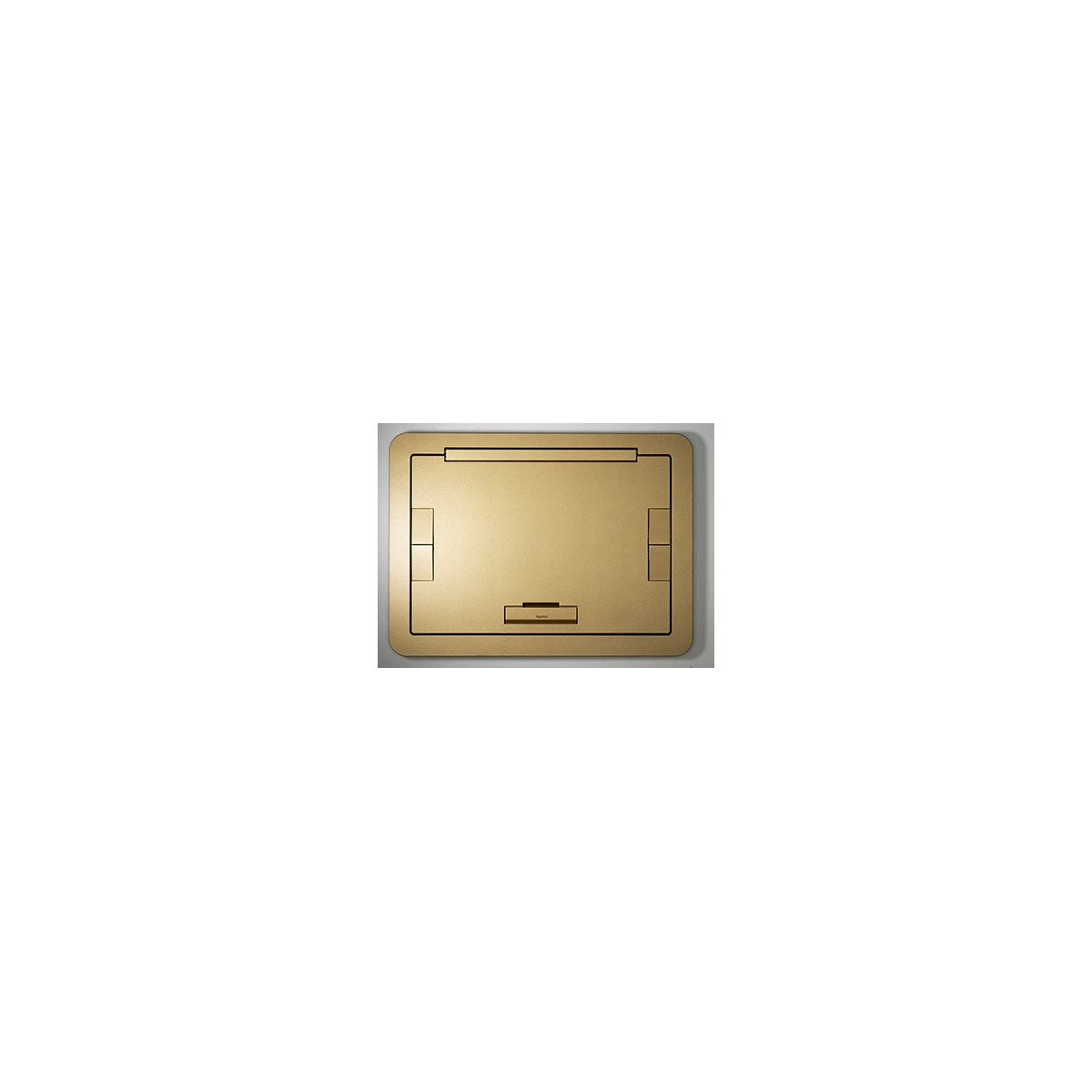

Evolution Series EFB6, EFB8, EFT10 Floor Box Flush Style Cover with Solid Lid – Floor Box Solutions

The Evolution Series Floor Boxes by Wiremold represent the latest advancement in floor box technology, designed for use in concrete, raised, and wood floor applications. These floor boxes provide high capacity and multifunctional capabilities, making them ideal for commercial offices, conference rooms, stages, and entertainment venues where large capacity audio/video, power, and communication services are required. The series supports 6-, 8-, and 10-gang configurations with fully finished interiors and removable modules for easy service reconfiguration. Suitable for electrical distributors and switchgear suppliers, these floor boxes offer flexibility and durability in lighting solutions and wire and cable management.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: EFB610BTBS
• Country of Origin: India
• Construction: Assembled
• Order Minimum: 1 unit
• Product Weight: 10.3 lbs
• Floor Box Capacity: 6, 8, and 10 gang options available
• Depth Behind Plates: Approximately 3 1/2" to 3 7/8" (89mm to 98mm) depending on model
• Compatible with standard single-, double-, and triple-gang wall plates
• Trade Size Knockouts: Multiple sizes from 3/4" to 2" for power, communications, and A/V devices
• Cover Material: Die cast aluminum with powder coat finishes (black, gray, bronze) and durable finishes (brushed aluminum, satin brass, satin nickel)
• Cover Styles: Surface solid, surface cutout (carpet insert), flush solid, flush cutout (carpet insert)
• Load Capacity of Cover: Up to 300 lbs static load
• Product UPC: 786564077589

Features

• Unique design allows the same floor box to be used across multiple floor types including wood, concrete, raised, carpet, tile, terrazzo, and bare concrete floors
• Fully adjustable pre- and post-concrete pour installation
• Removable modules and dividers allow easy access for moves, adds, and changes without disconnecting services
• Durable 180¬∞ articulating hinge enables covers to open fully and lie flat to reduce tripping hazards
• High wiring capacity behind each device plate (3 1/2" to 3 7/8") suitable for leading A/V manufacturers‚Äô devices including Extron¬Æ and Crestron¬Æ
• Auto-close cable egress doors protect cabling and reduce trip hazards
• TopGuard‚Ñ¢ protection meets UL scrub water exclusion requirements for tile, carpet, wood, bare concrete, and terrazzo floor coverings
• Finished interior improves visibility and ease of plugging/unplugging devices
• Accepts industry standard device plates for power, communications, and A/V
• Furniture feed options available for large capacity feeds up to 2" trade size
• Meets ADA Accessibility Guidelines for floor and ground surface levels
