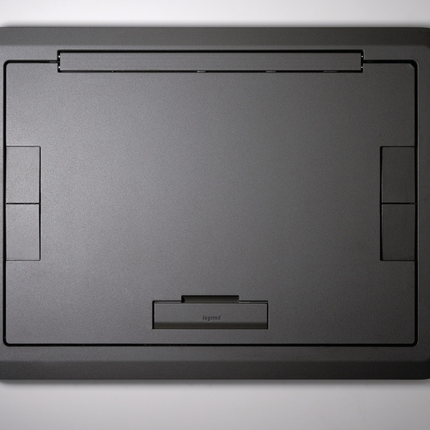

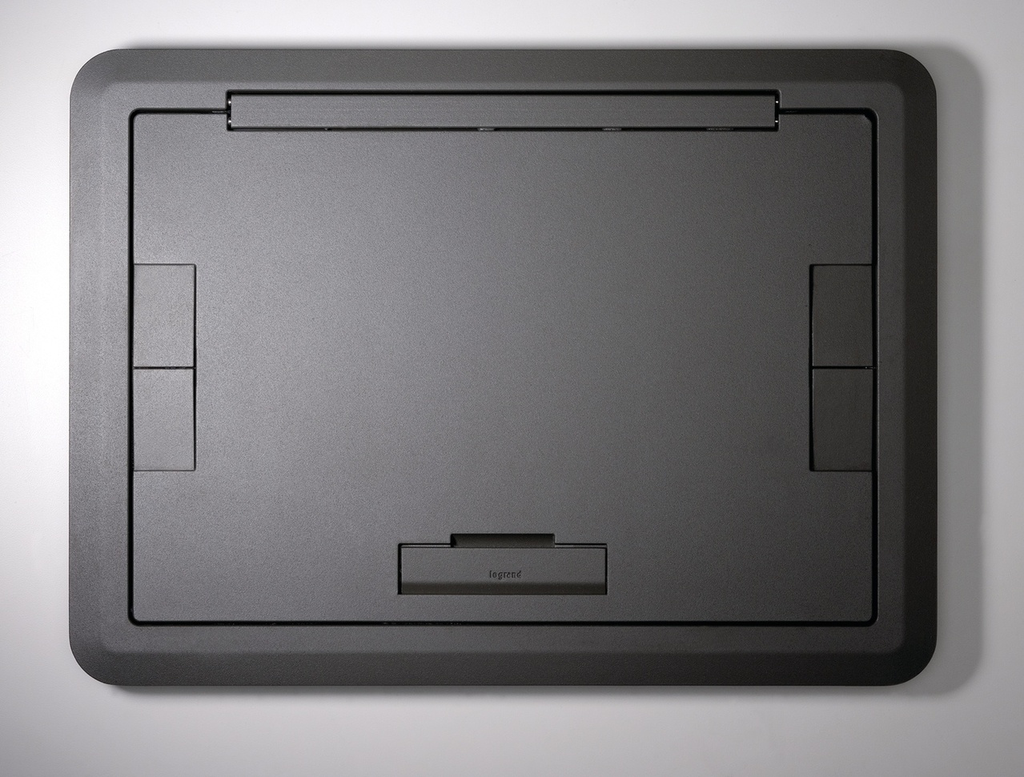

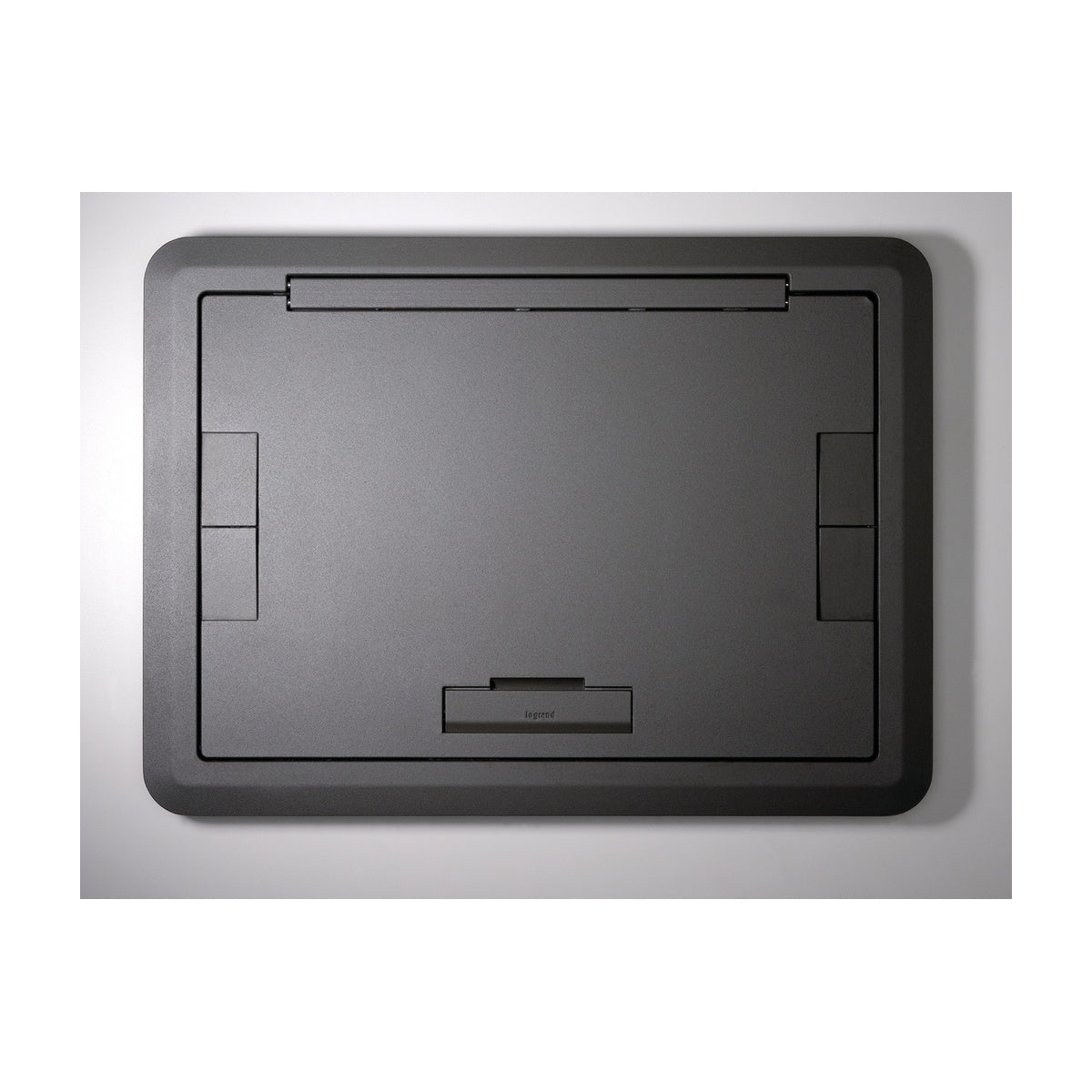

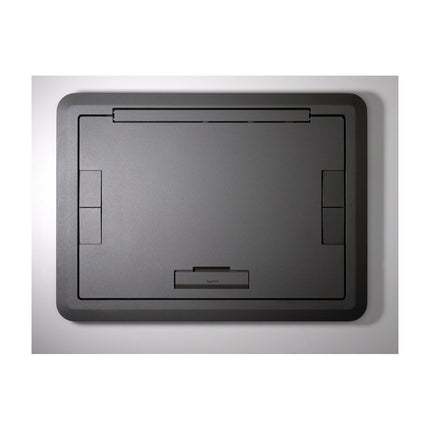

Evolution Series EFB6, EFB8, EFB10 Floor Box Surface Style Cover with Solid Lid – Floor Box Cover

The Evolution Series Floor Box Surface Style Cover with Solid Lid by Wiremold is a durable, low-profile cover designed to attach to Evolution Series 6, 8, and 10-gang floor boxes (models EFB6, EFB8, and EFB10). Manufactured from die-cast aluminum, this cover is engineered for use in commercial electrical distributor and lighting solutions applications involving wire and cable management. It is suitable for finished floors such as carpet tile and wood, providing a robust solution for floor box protection and cable egress.

Specifications

• Material: Die-Cast Aluminum
• Color: Gray
• Finish: Powder Coat
• Width: 12.5 inches
• Manufacturer: Wiremold
• Manufacturer Part #: EFB6810BTCGY
• Country of Origin: India
• Product Weight: 10 lbs
• Compatible Floor Boxes: Evolution Series 6, 8, and 10 Gang Floor Boxes (EFB6, EFB8, EFB10)

Features

• Durable die-cast aluminum construction provides strength and longevity for floor box applications.
• Equipped with a durable hinge allowing the cover to rotate open 180° and lie flat on the floor surface, enhancing access and reducing tripping hazards.
• Two slide egress doors lock in the open position and automatically close around cables when the cover is closed, protecting cabling and ensuring neat cable management.
• Designed to work with finished floors including carpet tile and wood.
• Flush installation with polished concrete or terrazzo floors is possible when used with the EFB45-CTR concrete/terrazzo ring (sold separately).
• Available in multiple powder coat finishes: black, gray, bronze, and durable finishes including satin brass, satin nickel, and brushed aluminum for aesthetic flexibility.
• Supports electrical distributor and switchgear supplier needs by providing a secure, professional floor box cover solution for power, communications, and A/V device installations.

Downloads & Links

• Spec Sheet
• EFB6810BTCXX_LINEART CAD Drawings
• EFB6810CTXX_R1 CAD Drawings
• EFB6810BTCXXTR_R1 CAD Drawings
• EFB6810CTCXXTR_R1 CAD Drawings
• EFB6810CTCXX_LINEART CAD Drawings
• Spec Sheet
• EFB6810BTCXX_R1 CAD Drawings
• EFB6810CTXX_LINEART CAD Drawings
• EFB6810CTXXTR_R1 CAD Drawings
• EFB6810BTXXTR_LINEART CAD Drawings
• Evolution Series Floor Box Div 26
• EFB6810BTCXXTR_LINEART CAD Drawings
• EFB6810BTXX_R1 CAD Drawings
• EFB Series Evolution Floor Boxes
• EFB6810BTXX_LINEART CAD Drawings
• Evolution Series Floor Box Activation Covers
• Evolution Series Floor Box Div 16
• EFB6810CTCXX_R1 CAD Drawings
• EFB6810BTCXX_R1 CAD Drawings
• EFB6810CTCXXTR_LINEART CAD Drawings
• EFB6810BTXXTR_R1 CAD Drawings
• Wiremold Evolution Series EFB6, 8 & 10 Covers"
