Evolution Series EFB6, EFB8, EFB10 Floor Box Flush Style Cover with Carpet Insert - Durable Finish Floor Box Cover

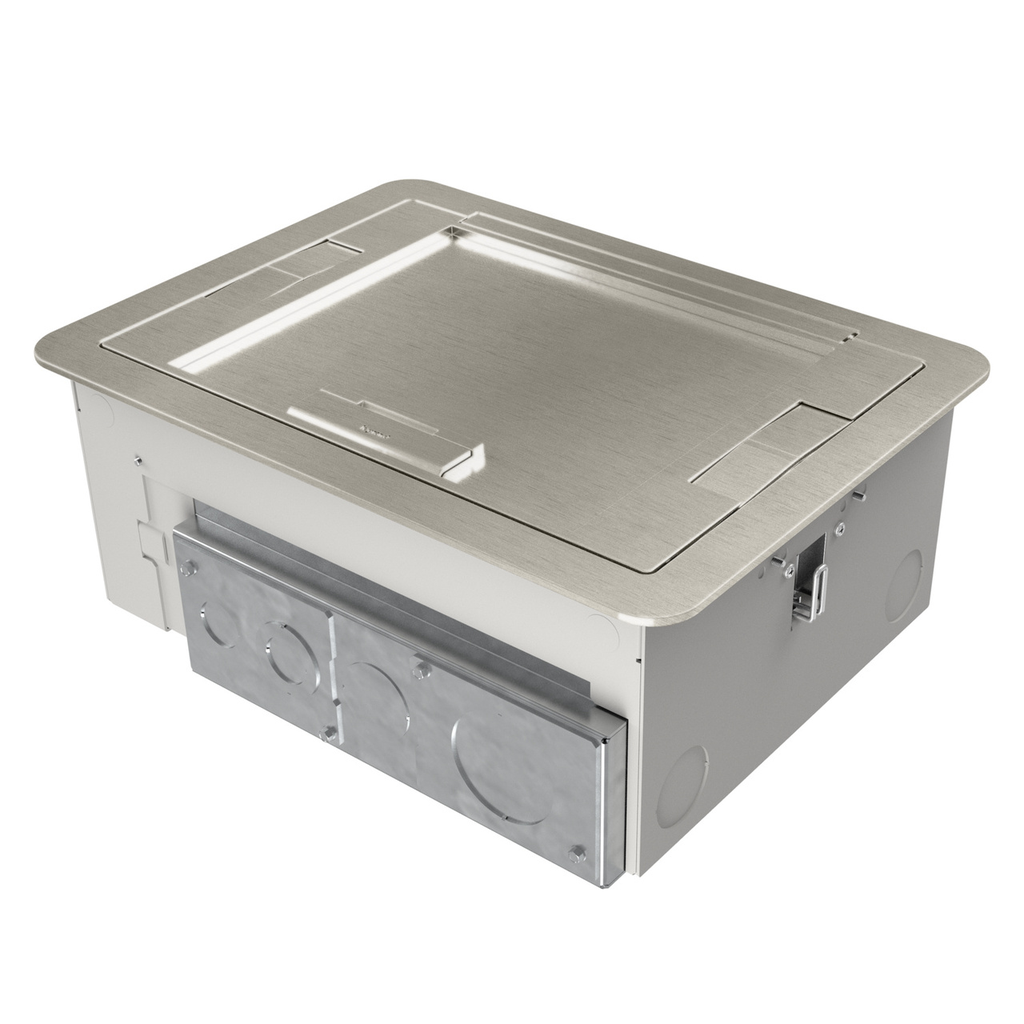

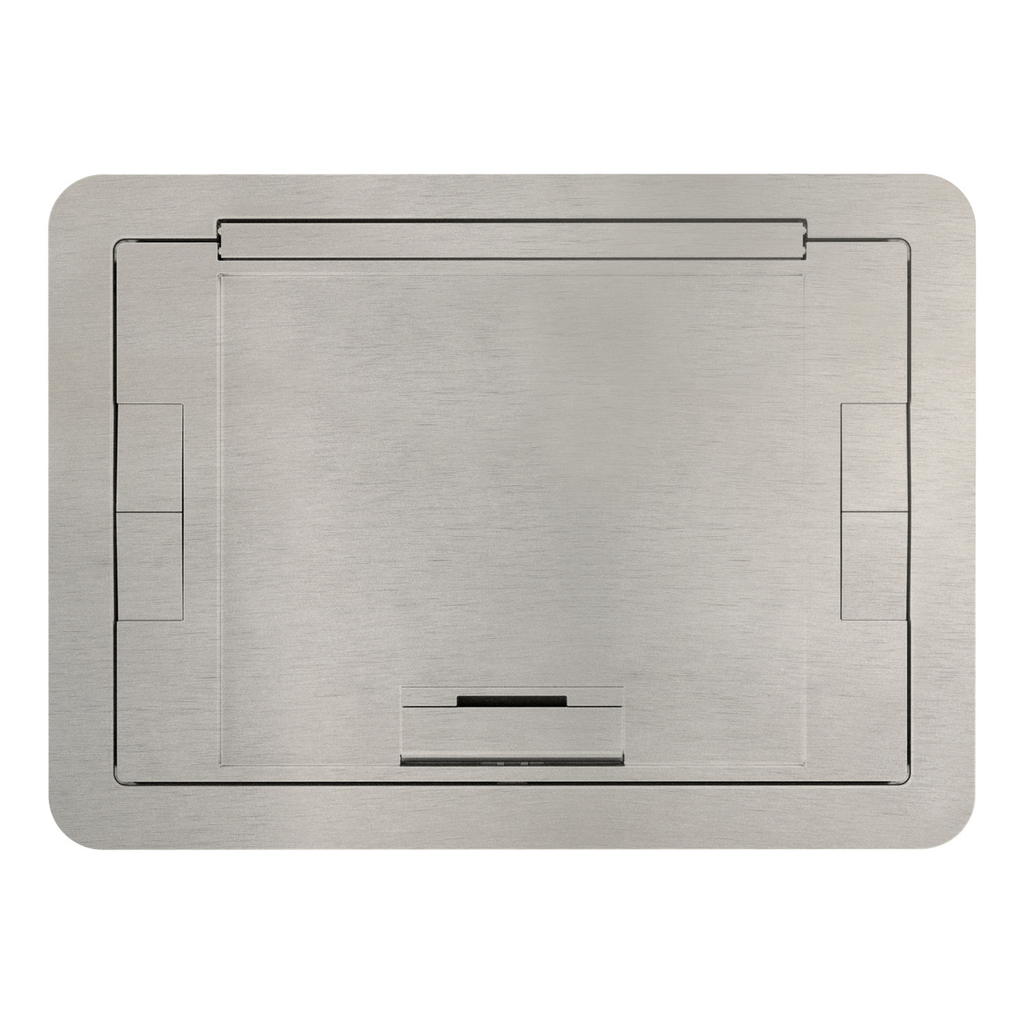

The Evolution Series Floor Box Flush Style Cover with Carpet Insert is a low profile, die-cast aluminum cover designed for use with the Evolution Series 6, 8, and 10-gang floor boxes (EFB6, EFB8, and EFB10). It is engineered for electrical distributors and lighting solutions providers requiring durable, adaptable floor box covers compatible with wire and cable management systems. The cover is suitable for finished floors such as carpet tile and wood and can be made flush with polished concrete or terrazzo floors when used with the separately sold EFB45-CTR ring. This cover features a robust hinge allowing 180° rotation and two slide egress doors that lock open and close automatically around cables, enhancing cable management and reducing trip hazards.

Specifications

• Material: Die-Cast Aluminum
• Color: Nickel
• Finish: Plated
• Width: 12.5 inches
• Compatible Floor Boxes: Evolution Series EFB6, EFB8, EFB10
• Country of Origin: India
• Manufacturer: Wiremold
• Manufacturer Part #: EFB6810CTSN
• Order Minimum: 1 unit
• Product Weight: 10 lbs

Features

• Durable die-cast aluminum construction for strength and longevity
• Low profile design with a carpet insert for seamless integration with carpeted floors
• Equipped with a durable hinge enabling 180¬∞ rotation and flat laying for easy access
• Two slide egress doors that lock in open position and automatically close around cables
• Designed to work with finished floors including carpet tile and wood
• Flush installation option available for polished concrete or terrazzo floors using the EFB45-CTR ring (sold separately)
• Available in multiple powder coat finishes and durable finishes for aesthetic and functional versatility (black, gray, bronze, satin brass, satin nickel, brushed aluminum)
