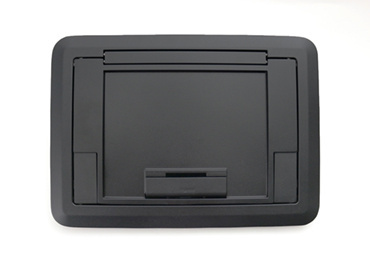

Evolution Series EFB45 Floor Box Surface Style Cover with Carpet Insert - Floor Box Cover

The Evolution Series EFB45 Floor Box Surface Style Cover with Carpet Insert is a low-profile cover designed for use with EFB45S style floor boxes. Manufactured by Wiremold, this cover is engineered for electrical distributors and lighting solutions providers seeking durable and functional wire and cable management in floor box applications. It is constructed of die-cast aluminum with a powder coat finish and is suitable for finished floors such as carpet, tile, wood, polished concrete, and terrazzo (with the appropriate trim ring).

Specifications

• Material: Aluminum
• Finish: Powder Coat
• Color: Black
• Dimensions (L x W x H): 13.875 in x 9.938 in x 1.188 in
• Depth: 13.75 inches
• Construction: Assembled
• Country of Origin: India
• Manufacturer: Wiremold
• Manufacturer Part #: EFB45CTCBK
• Order Minimum: 1 unit
• Product Weight: 7 lbs

Features

• Low profile design to maintain floor aesthetics and functionality
• Durable die-cast aluminum construction for long-lasting performance
• Equipped with a hinge allowing 180¬∞ rotation for easy access
• Two slide egress doors that lock open and automatically close around cables when the cover is closed
• Compatible with finished floors such as carpet, tile, wood, polished concrete, and terrazzo (requires EFB45-CTR ring for concrete/terrazzo)
• Available in multiple powder coat finishes including black, gray, and bronze, as well as satin brass, satin nickel, and brushed aluminum finishes

Downloads & Links

• Evolution Series Floor Box Div 16
• Evolution 4_5 Gang BIM Model
• Evolution Series Floor Box Activation Covers
• Evolution Floor Box Cover Flip Chart
• Spec Sheet
• Wiremold Evolution Series EFB45 Floorbox Covers
• Evolution Series Sell Sheet
• Evolution Series Floor Box Terrazzo/Concrete Trim Ring - EFB610-CTR, EFB610-TS"
• Evolution Floor Boxes
• Evolution Series Floor Box Div 26
• Evolution Series Fire Classified Floor Boxes
• Evolution Series Floor Box Part List - COO
• Sell Sheet Durable Finish Covers and Heavy-Duty Covers for Poke-Thru Devices and Floor Boxes
• Evolution Series Floor Boxes
• Wiremold Evolution Series Floor Box Abandonment
• Evolution Series Floor Boxes Fire Classified
• Evolution Series 4- and 5-Gang Floor Box
• Evolution Series Floor Box
