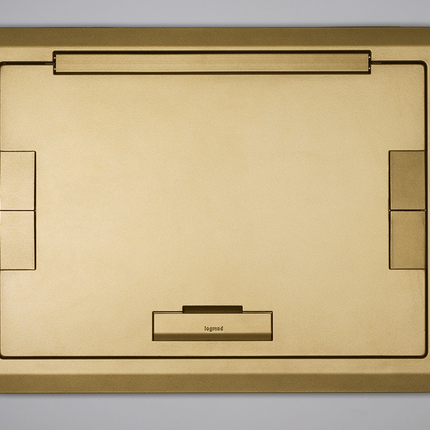

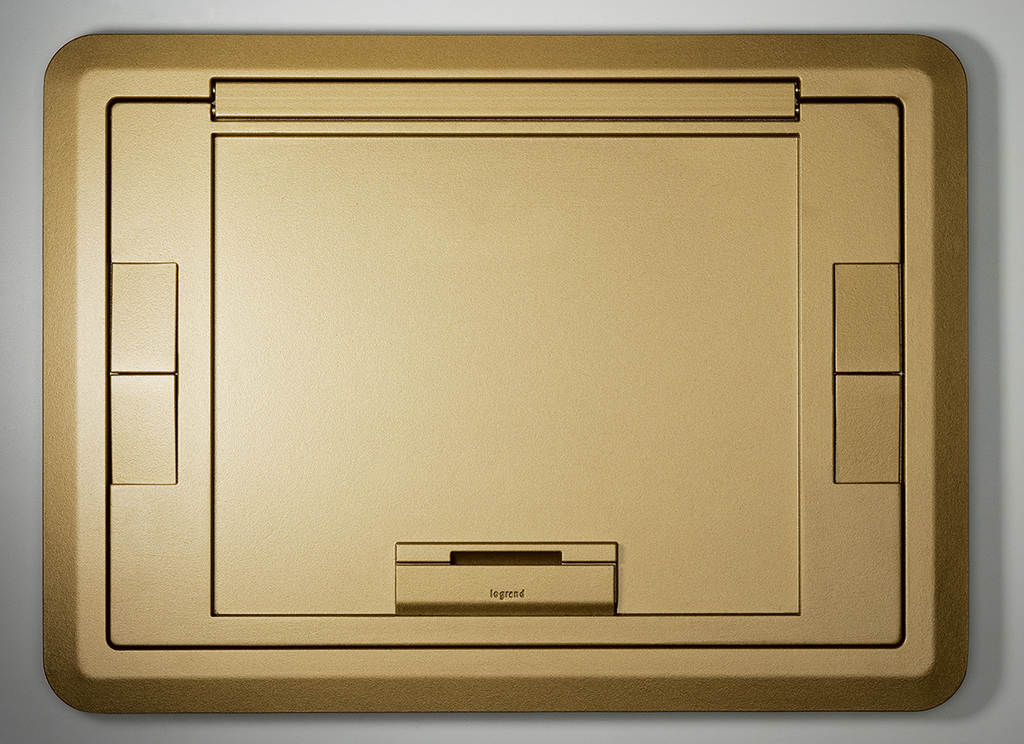

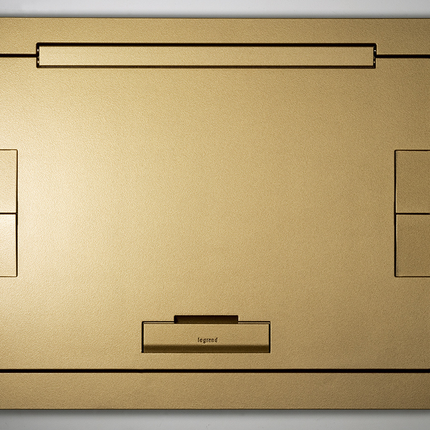

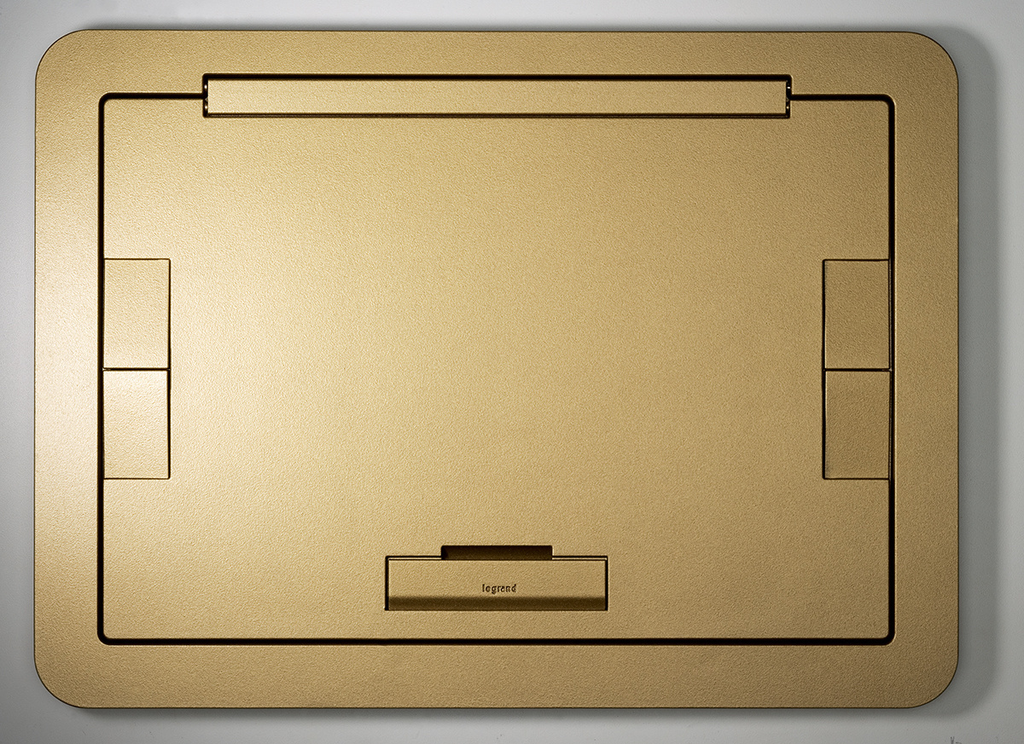

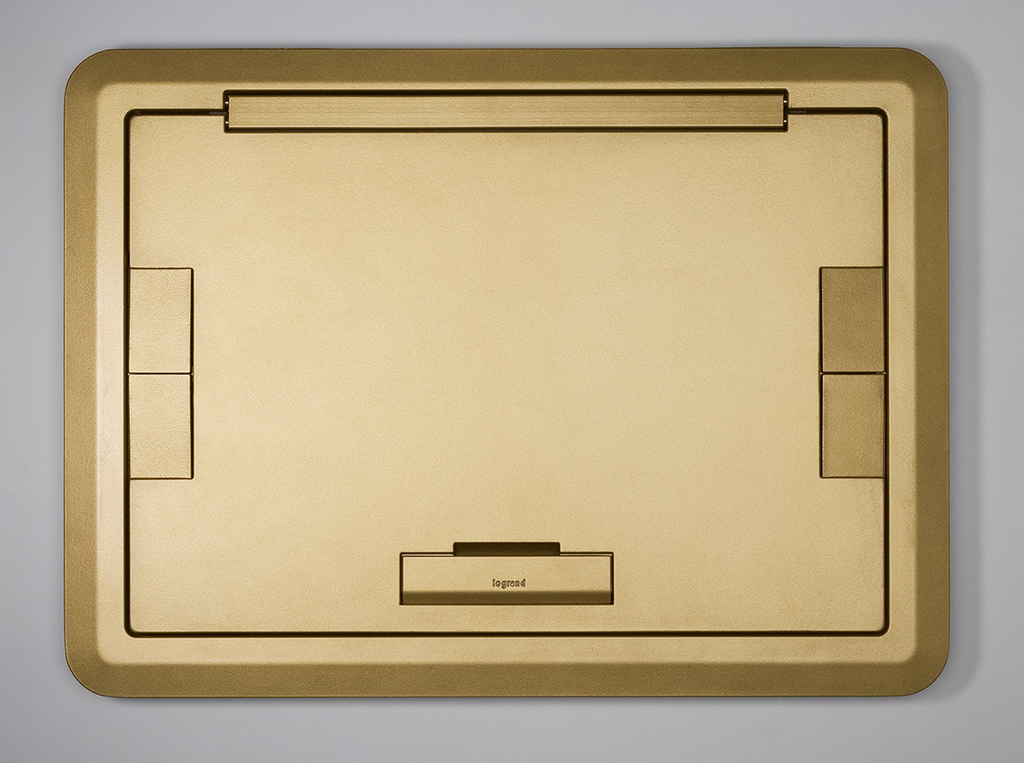

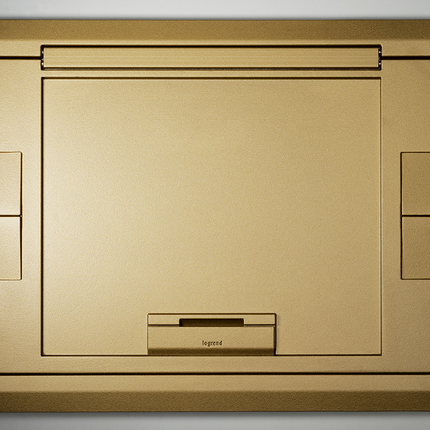

Evolution Series EFB45 Floor Box Flush Style Cover with Solid Lid TR – Floor Box Cover

The Evolution Series EFB45 Floor Box Flush Style Cover with Solid Lid TR is a low profile floor box cover designed to attach to the EFB45S style floor boxes. It is engineered for use in various finished floor applications including carpet, tile, and wood, making it suitable for electrical distributors and lighting solutions requiring durable and adaptable floor access. The cover is constructed from die-cast aluminum with a powder coat finish in bronze, providing strength and corrosion resistance. It features a durable hinge allowing the cover to rotate open 180°, and two slide egress doors that lock open and automatically close around cables when the cover is closed, ensuring cable management and reducing trip hazards. For installations on polished concrete or terrazzo floors, the EFB45-CTR concrete/terrazzo ring (sold separately) must be used to achieve a flush finish.

Specifications

• Material: Aluminum
• Finish: Powder Coat
• Color: Bronze
• Dimensions: Length 13.875 in, Width 9.938 in, Height 1.188 in
• Construction: Assembled
• Manufacturer: Wiremold
• Manufacturer Part #: EFB45BTBZTR
• Country of Origin: India
• Product Weight: 7.4 lbs

Features

• Low profile design to sit flush with finished floors such as carpet, tile, and wood
• Durable die-cast aluminum construction for strength and style
• Durable hinge enables 180° rotation of the cover
• Two slide egress doors that lock open and automatically close around cables
• Compatible with EFB45S style floor boxes
• Designed for cable management and trip hazard reduction
• Suitable for use in electrical distributor applications requiring floor access
• Powder coat finish in bronze for durability and aesthetic integration
• Flush installation with polished concrete or terrazzo floors requires EFB45-CTR ring (sold separately)
