Evolution Series EFB45 Floor Box Flush Style Cover with Solid Lid – Floor Box Cover

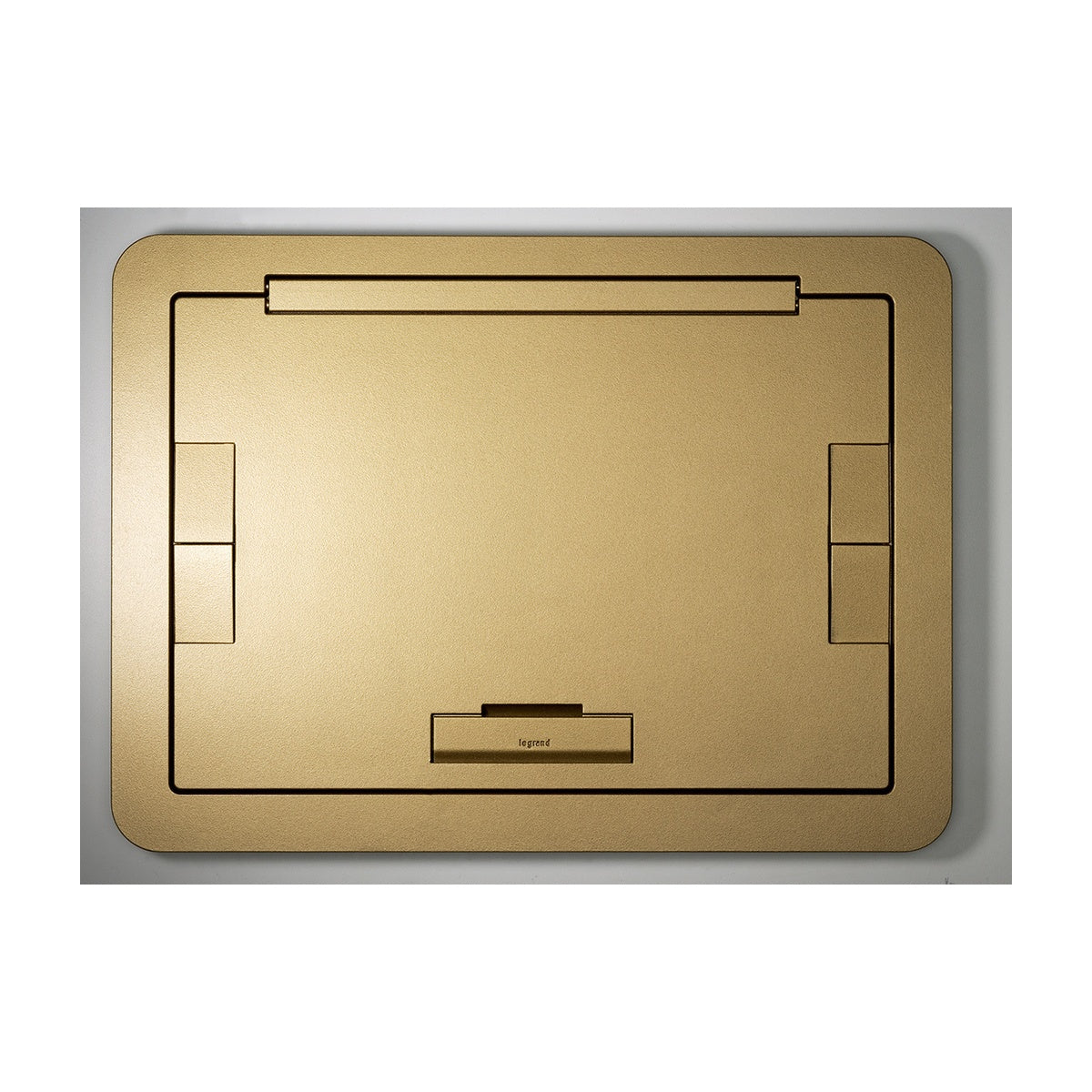

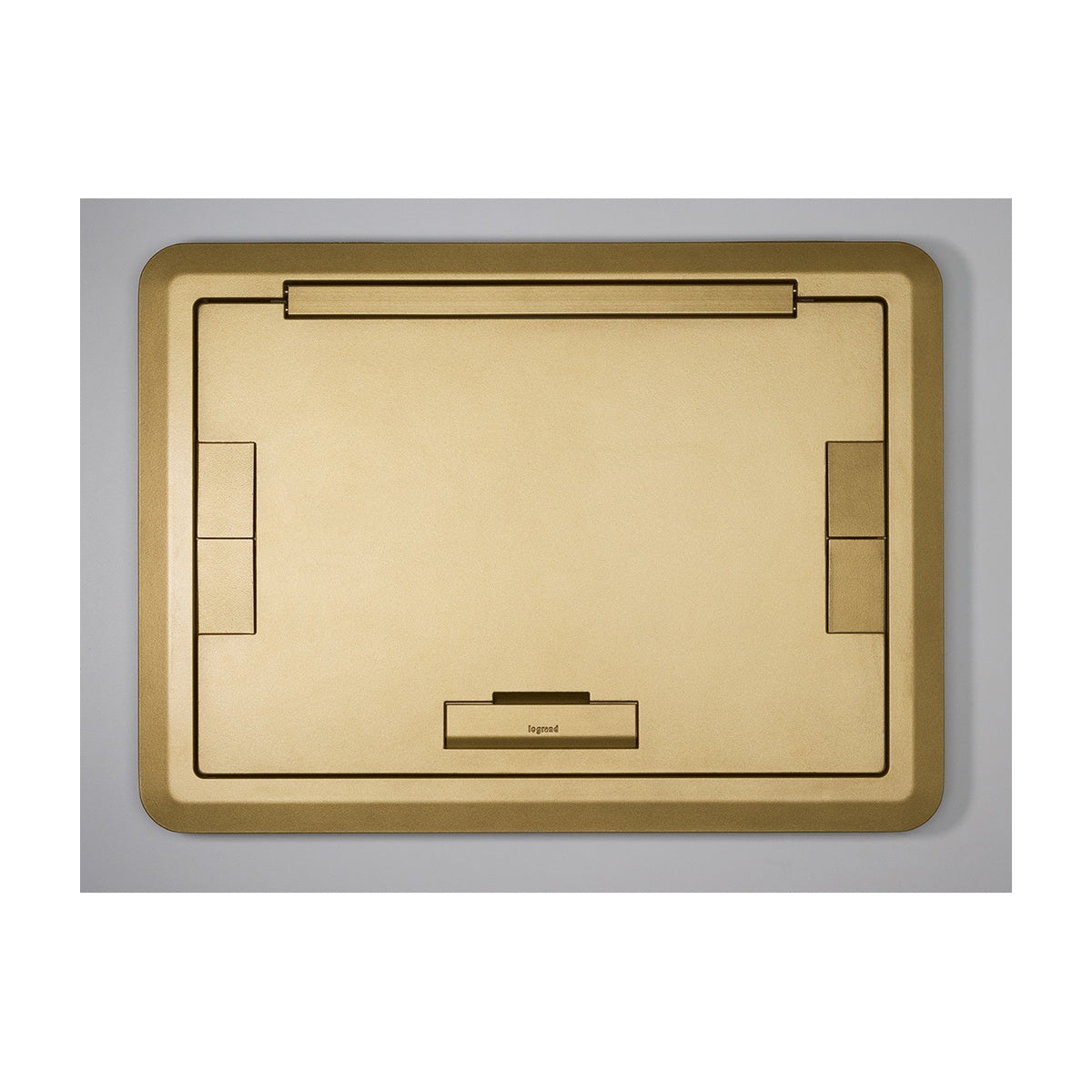

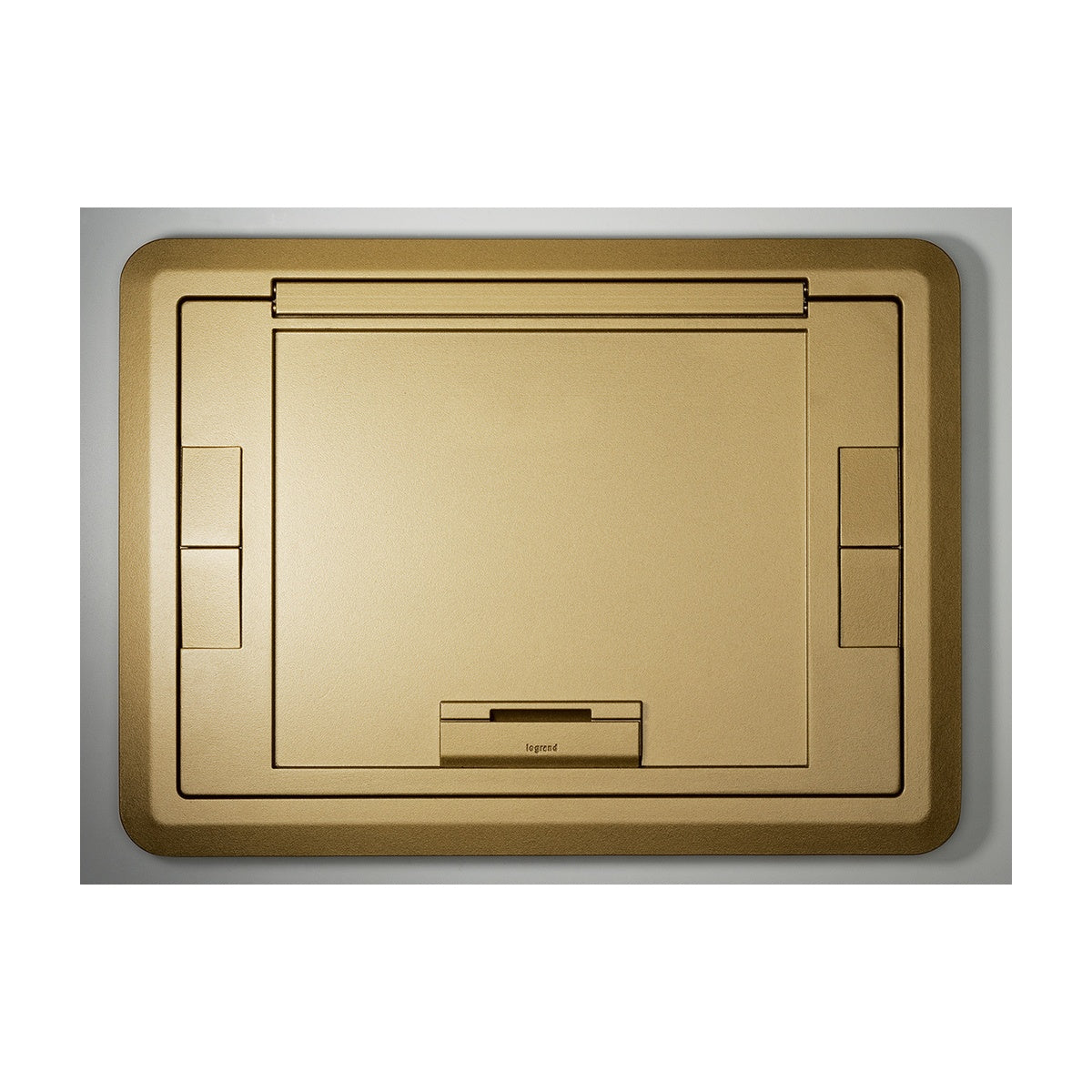

The Evolution Series EFB45 Floor Box Flush Style Cover with Solid Lid by Wiremold is a low profile cover designed for use with EFB45S style floor boxes. It is engineered to provide a flush finish with various floor types including carpet, tile, and wood, making it suitable for electrical distributors and lighting solutions requiring discreet wire and cable management. The cover is constructed from die cast aluminum, featuring a durable hinge that allows 180° rotation, two slide egress doors that lock open, and automatic cable closure when shut. For polished concrete or terrazzo floors, a separate concrete/terrazzo ring (EFB45-CTR) is required to maintain flush installation. This cover supports the needs of switchgear suppliers and electrical contractors looking for reliable floor box accessories.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: EFB45BTBS
• Construction: Assembled
• Material: Die cast aluminum
• Weight: 7.4 lbs
• Country of Origin: India
• Order Minimum: 1 unit
• UPC: 786564086536
• Finish Options: Powder coat finishes in black, gray, brass, nickel, aluminum, and bronze

Features

• Low profile design for flush installation with finished floors such as carpet, tile, and wood
• Durable hinge enabling 180° rotation of the cover
• Two slide egress doors that lock open and automatically close around cables
• Die cast aluminum construction for strength and durability
• Compatible with concrete/terrazzo floors using a separate ring (sold separately)
