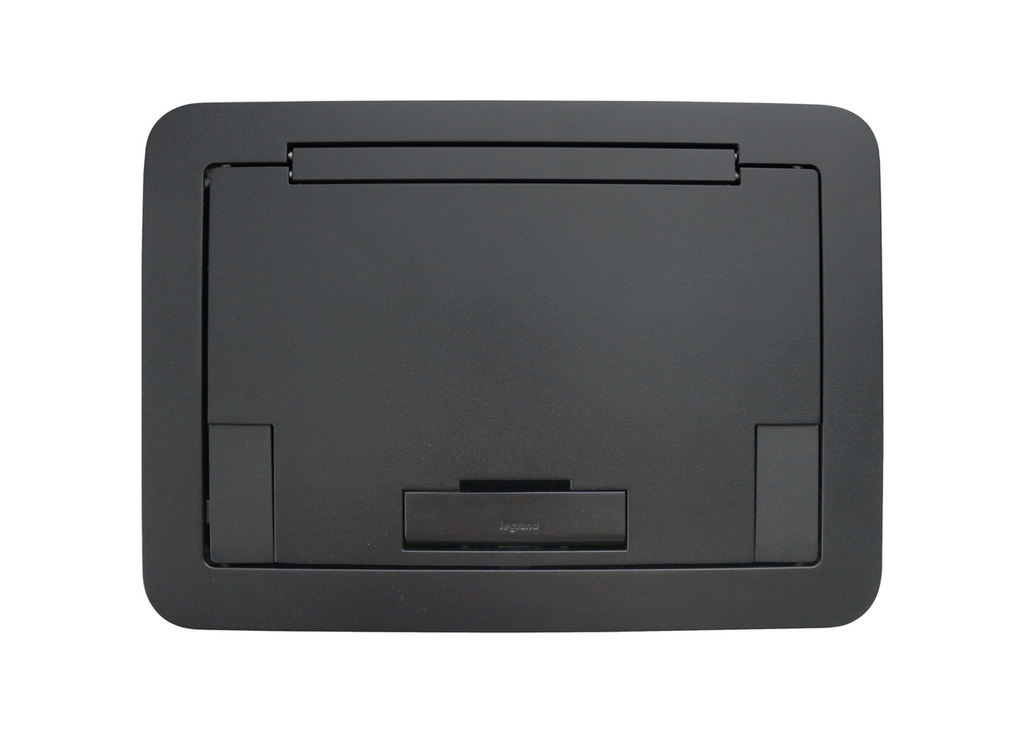

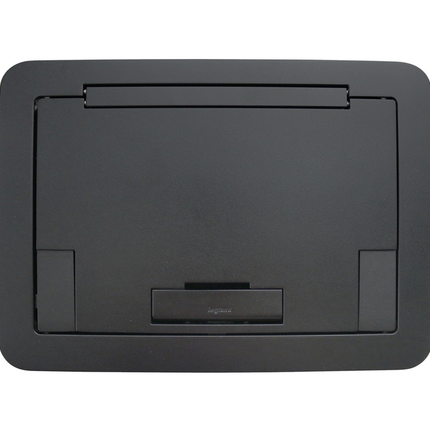

Evolution Series EFB45 Floor Box Flush Style Cover with Solid Lid - Floor Box Cover

The Evolution Series EFB45 Floor Box Flush Style Cover with Solid Lid is a low-profile cover designed to attach to EFB45S style floor boxes, providing a durable and functional solution for electrical distributors and switchgear suppliers. This cover is ideal for finished floors such as carpet, tile, and wood, ensuring a flush and secure installation that integrates seamlessly with lighting solutions and wire and cable management systems.

Specifications

• Material: Aluminum
• Finish: Powder Coat
• Color: Black
• Dimensions: 13.875 in (Length) x 9.938 in (Width) x 1.188 in (Height)
• Construction: Assembled
• Product Weight: 7.4 lbs
• Country of Origin: India
• Manufacturer Part #: EFB45BTBK

Features

• Die-cast aluminum construction for durability and corrosion resistance.
• Equipped with a durable hinge allowing the cover to rotate open 180¬∞.
• Two slide egress doors that lock in the open position and automatically close around cables when the cover is closed.
• Designed to work with finished floors including carpet, tile, and wood.
• Flush installation capability with polished concrete or terrazzo floors when used with the EFB45-CTR concrete/terrazzo ring (sold separately).
• Available in multiple powder coat finishes including black, gray, and bronze, as well as satin brass, satin nickel, and brushed aluminum finishes.
