Evolution Series EFB45 Floor Box Flush Style Cover with Solid Lid - Floor Box Cover

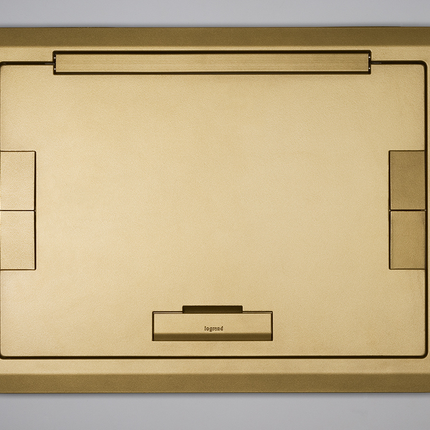

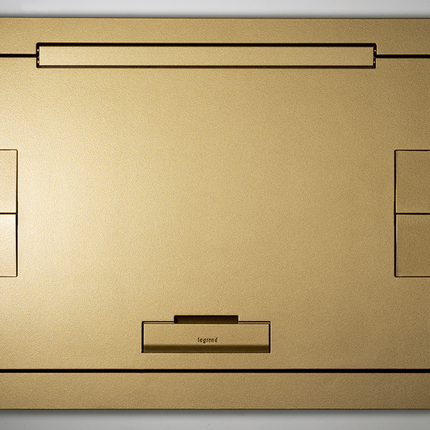

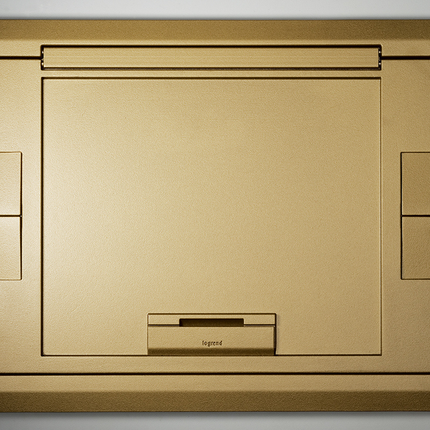

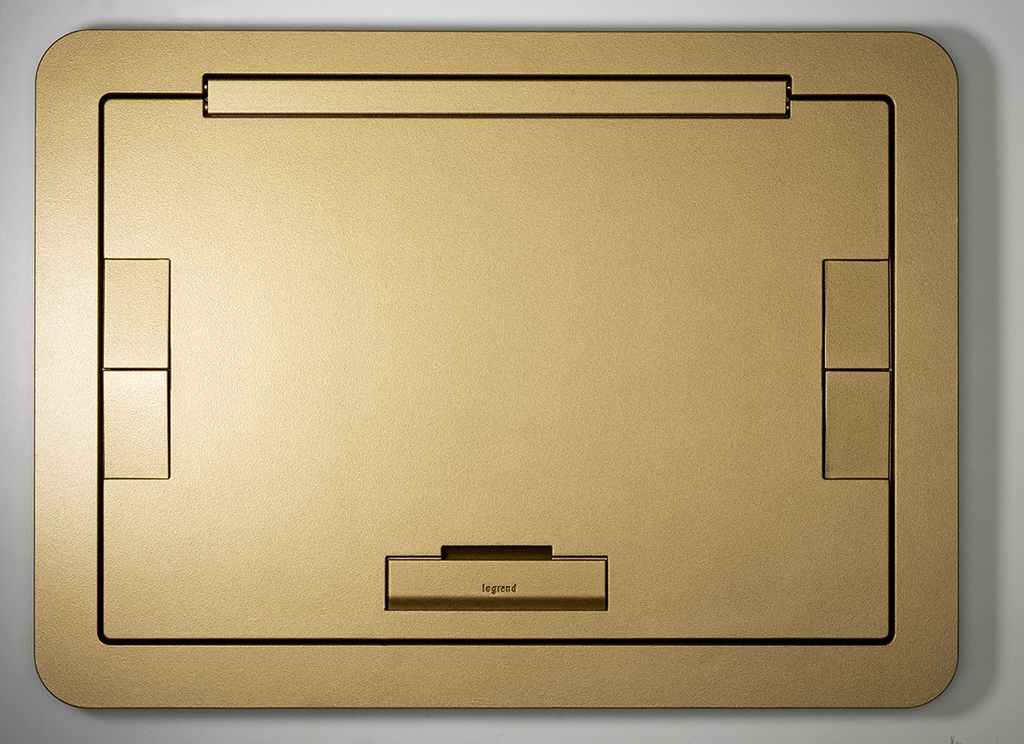

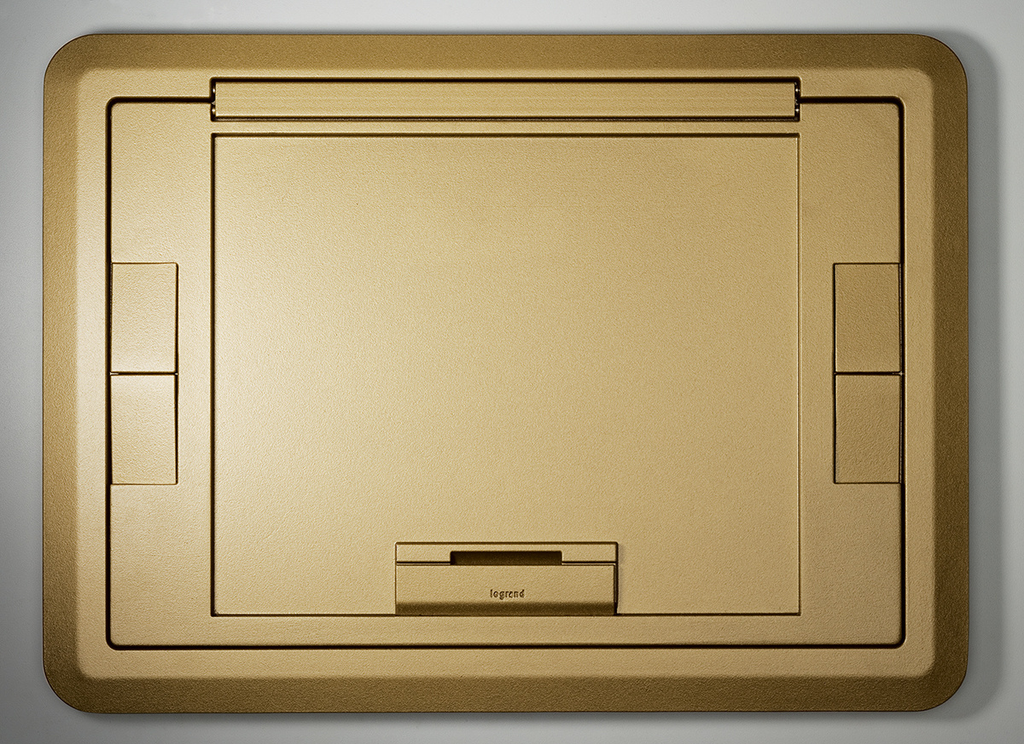

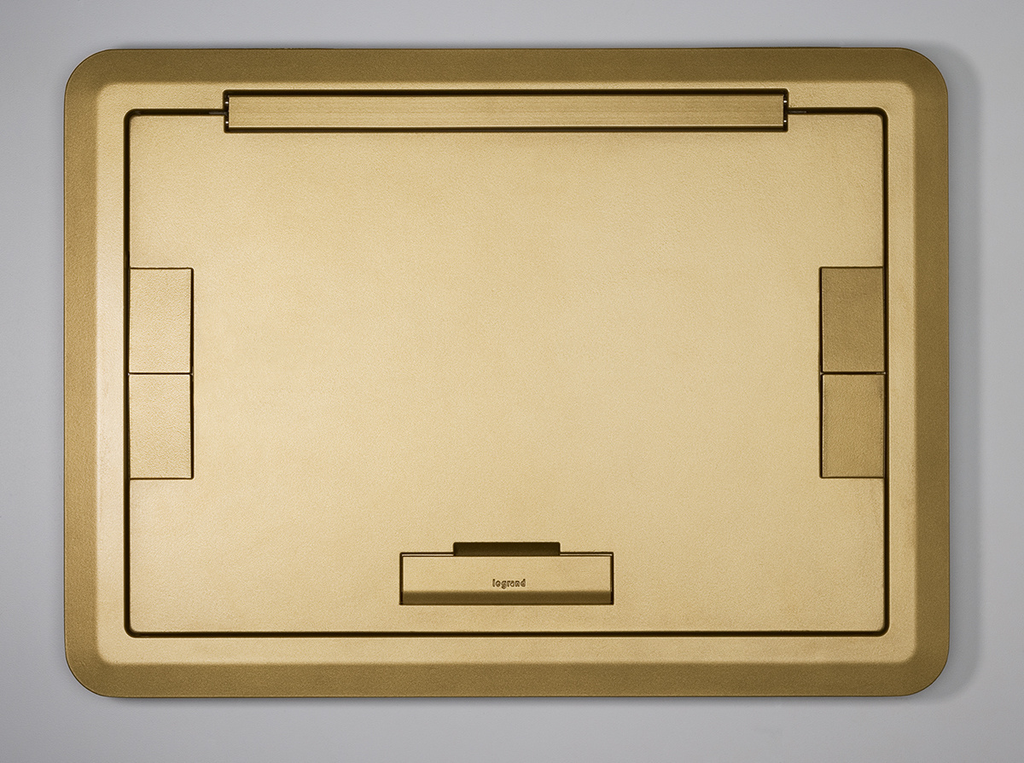

The Evolution Series EFB45 Floor Box Flush Style Cover with Solid Lid is a low profile cover designed for use with EFB45S style floor boxes, ideal for electrical distributors and switchgear suppliers requiring durable and adaptable floor solutions. Manufactured by Wiremold in India, this cover is made of die cast aluminum and features a robust hinge that allows the cover to rotate open 180°. It includes two slide egress doors that lock open and automatically close around cables when the cover is closed, providing effective cable management and reducing trip hazards. The cover assemblies are designed to sit flush with finished floors such as carpet, tile, and wood. For bare polished concrete or terrazzo floors, the EFB45-CTR concrete/terrazzo ring (sold separately) is required to achieve a flush installation. Available in six powder coat finishes, this cover supports versatile lighting solutions and wire and cable management applications in commercial and institutional environments.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: EFB45BTNKTR
• Country of Origin: India
• Construction: Assembled
• Product Weight: 7.4 lbs
• Order Minimum: 1 unit
• UPC: 786564086840
• Compatible with EFB45S style floor boxes
• Available powder coat finishes: Black, Gray, Brass, Nickel, Aluminum, Bronze

Features

• Die cast aluminum construction for strength and durability
• Durable hinge allows 180° rotation and flat opening
• Two slide egress doors lock open and close automatically around cables
• Flush style design to sit flush with carpet, tile, and wood floors
• Compatible with concrete/terrazzo floors using EFB45-CTR ring (sold separately)
• Designed to reduce trip hazards and protect cabling
• Suitable for use in commercial electrical distribution and lighting solutions

Downloads & Links

• Evolution Series Floor Boxes Fire Classified
• Evolution Floor Box Cover Flip Chart
• Evolution Series Floor Box Activation Covers
• Evolution Series Floor Box Div 16
• Evolution Series 4- and 5-Gang Floor Box
• Wiremold Evolution Series Floor Box Abandonment
• Sell Sheet Durable Finish Covers and Heavy-Duty Covers for Poke-Thru Devices and Floor Boxes
• Evolution Series Floor Box Part List - COO
• Evolution Series Floor Box Terrazzo/Concrete Trim Ring - EFB610-CTR, EFB610-TS"
• Evolution Floor Boxes
• Evolution Series Fire Classified Floor Boxes
• Evolution Series Floor Boxes
• EFB45BT_R0 CAD Drawings
• Evolution Series Floor Box
• Evolution 4_5 Gang BIM Model
• Spec Sheet
• Evolution Series Floor Box Div 26
• Evolution Series Sell Sheet
• EFB45BTxxTR_R0 CAD Drawings
