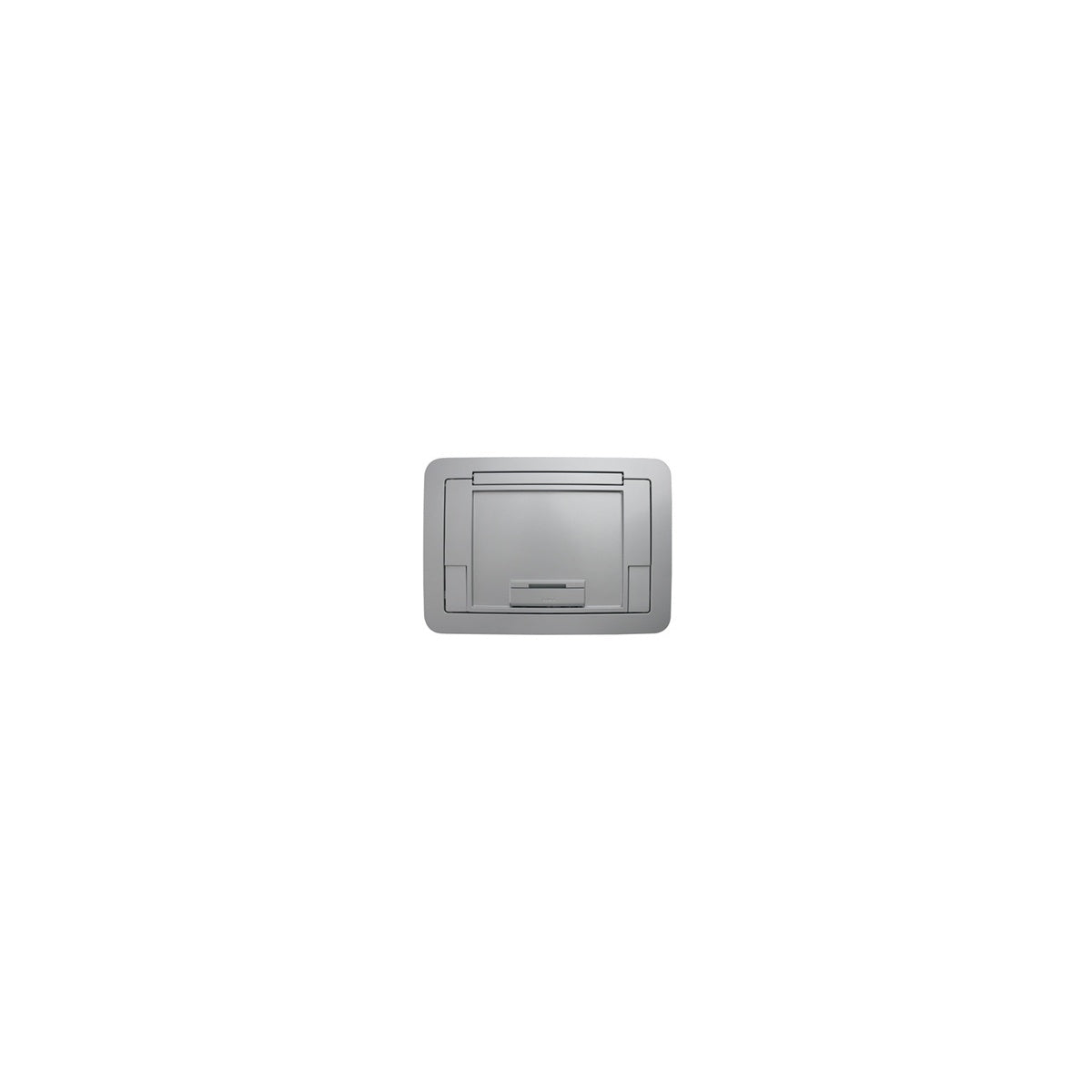

Evolution Series EFB45 Floor Box Flush Style Cover with Floor Insert - Floor Box Cover

The Evolution Series EFB45 Floor Box Flush Style Cover with Floor Insert is a low profile, durable cover designed for use with EFB45S style floor boxes. Manufactured by Wiremold, this cover is engineered for electrical distributors and lighting solutions providers requiring reliable, flush-mounted floor box covers suitable for commercial and institutional applications. It is ideal for finished floors such as carpet, tile, and wood, with an option to achieve flush mounting on polished concrete or terrazzo floors using a separate concrete/terrazzo ring (EFB45-CTR).

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: EFB45CTAL
• Country of Origin: India
• Construction: Assembled
• Product Weight: 7.2 lbs
• Order Minimum: 1 unit
• UPC: 786564086505
• Material: Die cast aluminum
• Dimensions: 16 3/8" x 12 1/2" (416mm x 318mm)
• Color/Finish: Powder coat finishes available in black, gray, brass, nickel, aluminum, and bronze
• Hinge: Durable hinge allowing 180¬∞ rotation
• Recessed Floor Insert Depth: 1/4" (6.35mm)

Features

• Low profile flush style cover designed to sit flush with finished floors such as carpet, tile, and wood
• Equipped with two slide egress doors that lock in the open position and automatically close around cables when the cover is closed
• Durable die cast aluminum construction for strength and long-lasting performance
• Beveled flange edge meets ADA guidelines to reduce tripping hazards
• Compatible with polished concrete or terrazzo floors using the EFB45-CTR ring (sold separately)
• Designed for easy cable management and protection of power and communication outputs
• Suitable for commercial, retail, hospitality, education, financial, and entertainment vertical markets
