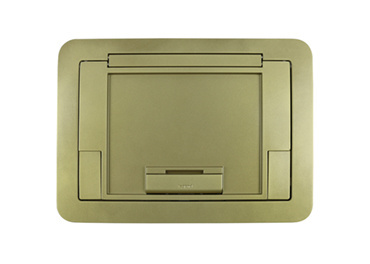

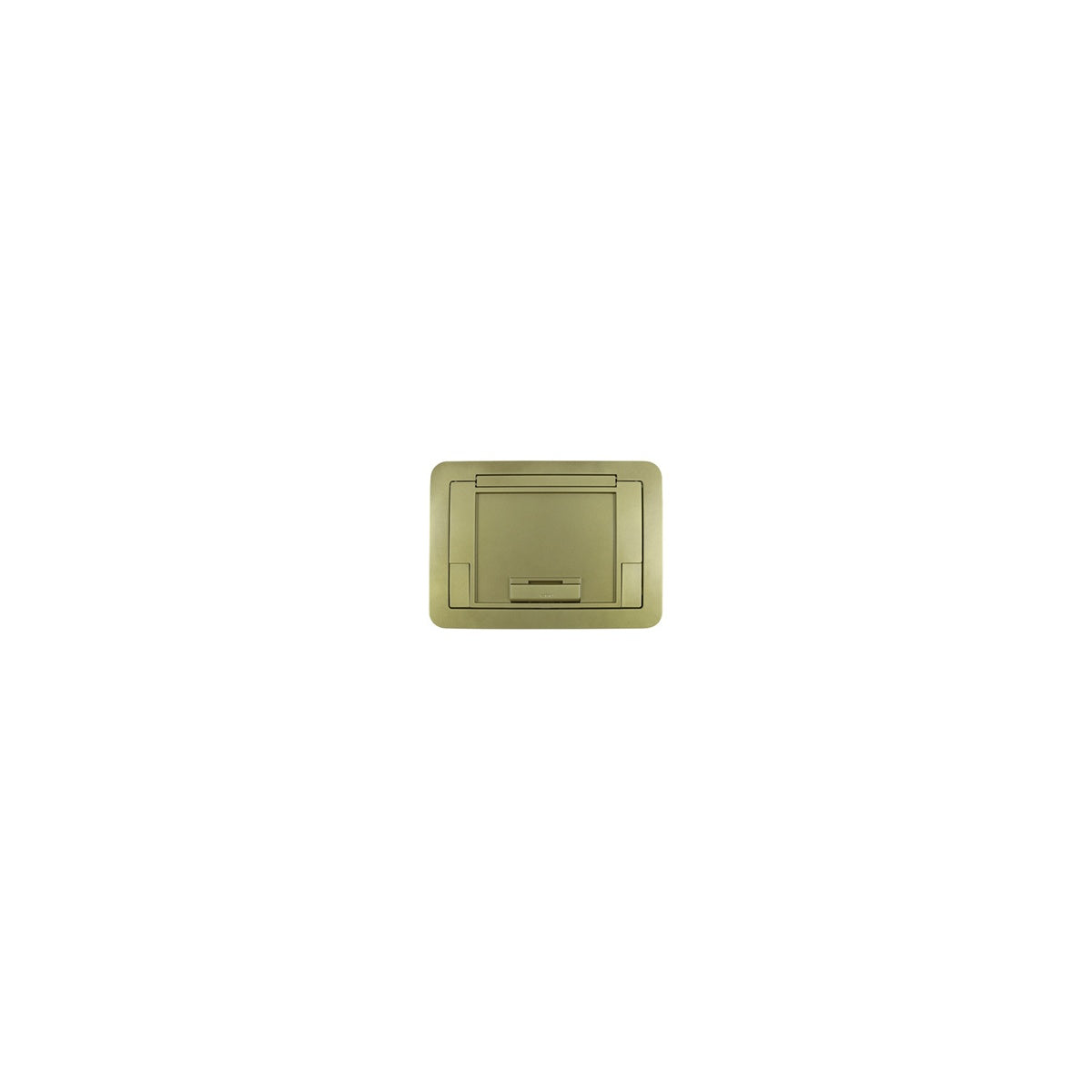

Evolution Series EFB45 Floor Box Flush Style Cover with Floor Insert

The Evolution Series EFB45 Floor Box Flush Style Cover with Floor Insert by Wiremold is a low-profile, die-cast aluminum cover designed to provide access and protection for power and communication outputs in 4-gang floor boxes. Ideal for electrical distributors and lighting solutions providers, this cover is engineered to sit flush with finished floors such as carpet, tile, and wood, ensuring a seamless integration in commercial and residential installations. It features durable hinges allowing 180-degree rotation, recessed areas to accommodate finished floor coverings, and slide egress doors that lock open and close automatically around cables. For polished concrete or terrazzo floors, a separate concrete/terrazzo trim ring (EFB45-CTR) is required to achieve a flush installation.

Specifications

• Material: Die cast aluminum
• Construction: Assembled
• Weight: 7.2 lbs
• Country of Origin: India
• Manufacturer: Wiremold
• Manufacturer Part Number: EFB45CTBS
• Order Minimum: 1 unit
• Finish Options: Six powder coat finishes available - black (BK), gray (GY), brass (BS), nickel (NK), aluminum (AL), bronze (BZ)
• Designed to fit EFB45S style floor boxes

Features

• Low-profile design sits flush with finished floors including carpet, tile, and wood
• Durable hinge allowing 180¬∞ rotation for ease of access
• 1/4" deep recessed area to accept finished floor covering
• Two slide egress doors that lock in open position and close automatically around cables
• Compatible with concrete/terrazzo trim ring (EFB45-CTR) for flush installation on polished concrete or terrazzo floors (ring sold separately)
• Available in multiple powder coat finishes for aesthetic versatility
