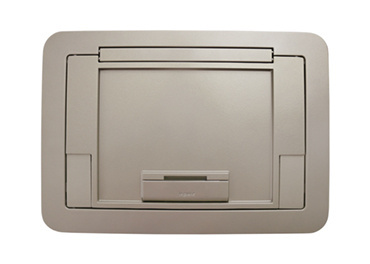

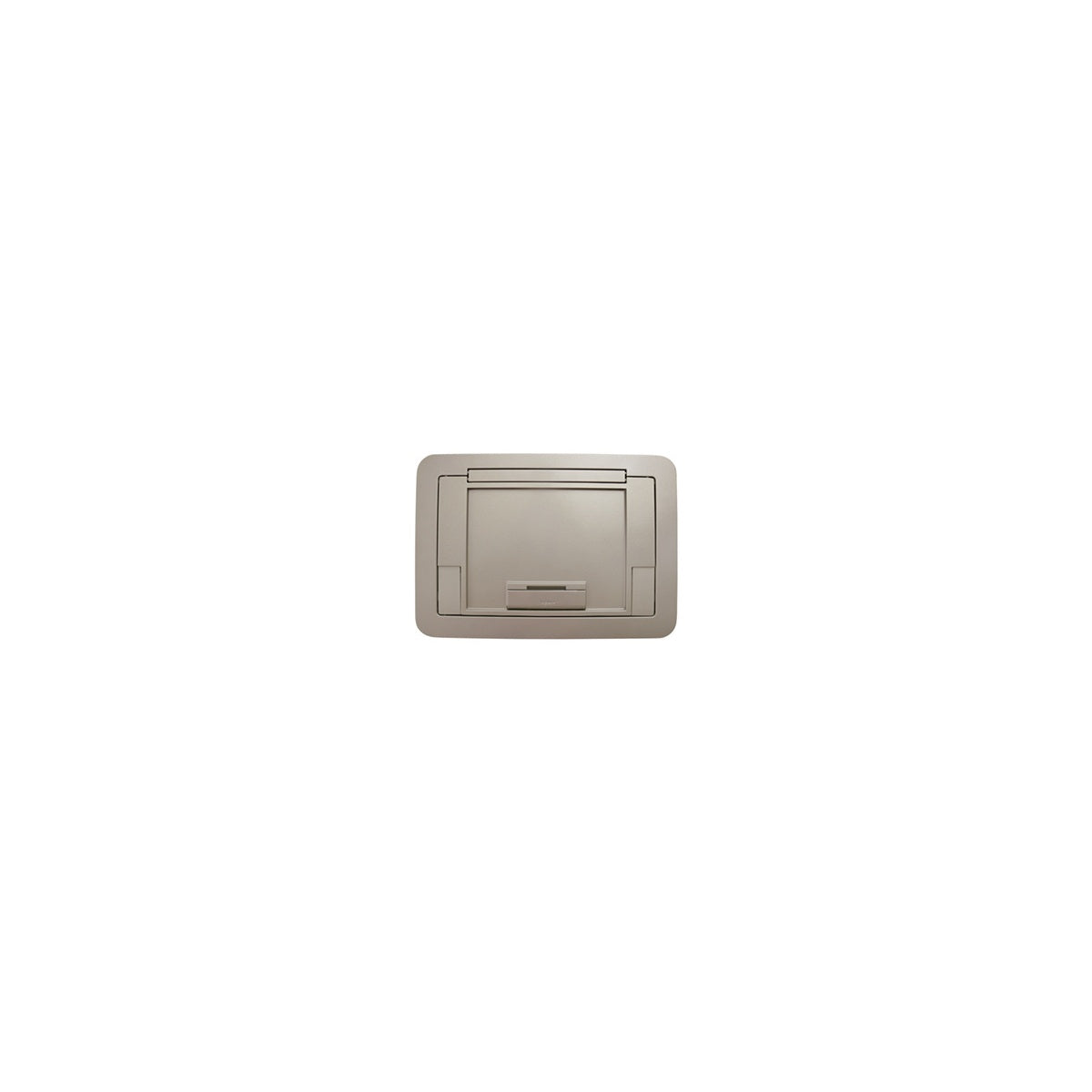

Evolution Series EFB45 Floor Box Flush Style Cover with Floor Insert - Floor Box Cover

The Evolution Series EFB45 Floor Box Flush Style Cover with Floor Insert by Wiremold is a low-profile cover designed for use with EFB45S style floor boxes. Engineered for electrical distributors and lighting solutions providers, this cover ensures seamless integration with finished floors such as carpet, tile, and wood, providing access and protection for power and communication outputs in commercial and residential wiring and cable management applications. For polished concrete or terrazzo floors, a separate concrete/terrazzo ring (EFB45-CTR) is required for flush installation.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: EFB45CTNK
• Country of Origin: India
• Construction: Assembled
• Material: Die cast aluminum
• Cover Rotation: 180 degrees hinge rotation
• Weight: 7.2 lbs
• Order Minimum: 1 unit
• Finish Options: Six powder coat finishes available - Black (BK), Gray (GY), Brass (BS), Nickel (NK), Aluminum (AL), Bronze (BZ)
• Recessed Floor Insert: 1/4" deep recessed area to accept finished floor covering
• Slide Egress Doors: Two slide doors lock in open position and automatically close around cables when cover is closed

Features

• Flush mount design sits flush with finished floors for aesthetic and functional integration
• Durable die cast aluminum construction for long-lasting performance
• Durable hinge mechanism allows smooth 180-degree rotation for easy access
• Slide egress doors provide cable management and protection
• Compatible with various floor types including carpet, tile, wood, concrete, and terrazzo (with separate ring)
• Designed for use in wire and cable management systems and electrical floor box applications
