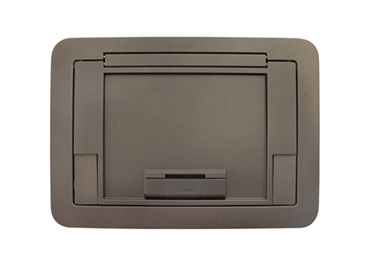

Evolution Series EFB45 Floor Box Flush Style Cover with Carpet Insert - Floor Box Cover

The Evolution Series EFB45 Floor Box Flush Style Cover with Carpet Insert is a low profile cover designed for use with EFB45S style floor boxes. Manufactured by Wiremold, this cover is ideal for electrical distributors and lighting solutions providers seeking durable, flush-mounted floor box covers suitable for finished floors including carpet tile and wood. It features a robust die-cast aluminum construction with a powder coat finish in bronze, providing reliable protection while maintaining aesthetic integration with floor surfaces. The cover assembly includes a hinge allowing 180° rotation and two slide egress doors that lock open and automatically close around cables when shut.

Specifications

• Material: Aluminum
• Finish: Powder Coat
• Color: Bronze
• Dimensions: 13.875 in (Length) x 9.938 in (Width) x 1.188 in (Height)
• Construction: Assembled
• Country of Origin: India
• Product Weight: 7.2 lbs
• Manufacturer: Wiremold
• Manufacturer Part Number: EFB45CTBZ

Features

• Low profile design for flush installation with finished floors such as carpet tile and wood
• Die-cast aluminum cover with durable powder coat finish for enhanced longevity
• Durable hinge enables cover to rotate open 180¬∞ for easy access
• Two slide egress doors lock in open position and automatically close around cables when cover is closed
• Compatible with EFB45S floor boxes
• Flush installation with polished concrete or terrazzo floors requires separate EFB45-CTR ring (sold separately)
• Available in multiple powder coat and durable satin finishes for versatile aesthetic matching
