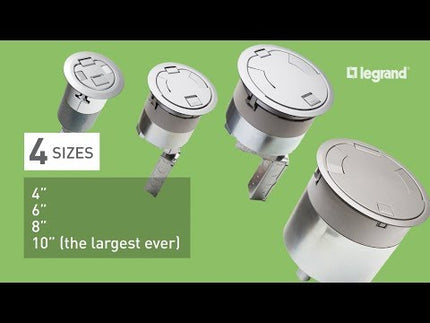

Evolution 6AT2 Series Recessed Assembly with Flush Style Cover - Poke-Thru Device

The Evolution 6AT2 Series Recessed Assembly with Flush Style Cover is a 3-hour fire-classified poke-thru device designed for retrofit and new construction in concrete floors. It provides recessed access to power, communications, and audio/video services below floor level, ensuring maximum device protection. With 3 gangs of capacity, this device allows flexible configuration to meet the specific needs of your space. The flush style cover is engineered to sit flush with finished floor coverings such as carpet, tile, or wood, making it suitable for commercial buildings, healthcare facilities, classrooms, meeting rooms, and open-space architectures requiring fire-rated floors. The device is UL Listed and classified to maintain up to a 3-hour fire rating, meeting U.S. and Canadian safety standards.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 6AT2GY
• Country of Origin: United States
• Made in USA: Yes
• Cubic Capacity: 24 in¬≥
• Construction: Assembled
• Cable Entry: Conduit
• Product Weight: 9.35 lbs
• Order Minimum: 1
• UPC: 786564088714

Features

• 3 gangs of recessed compartments for power, communications, and A/V devices recessed 5" (127mm) below floor level for maximum protection and device longevity
• Flush style die-cast aluminum cover designed to sit flush with finished floor coverings including carpet, tile, and wood
• Available in multiple powder-coated finishes including brushed aluminum, satin brass plated, and satin nickel plated
• Auto-close sliding egress doors that lock in open position and close around cables to minimize trip hazards and protect wiring
• UL Listed and UL Fire Classified for up to 3-hour rated floors, maintaining fire classification of the floor assembly
• Pre-pour sleeve option for cast-in-place core hole installation, reducing labor and cost
• TopGuard‚Ñ¢ protection exceeding UL scrub water exclusion requirements for tile, carpet, and wood covered floors
• Meets ADA Accessibility Guidelines with beveled trim flange to minimize floor level changes
• Compatible with Legrand AVIP Series, Extron Electronics MAAP and AAP Series devices, as well as most A/V manufacturer 1-gang decorator style devices
• Suitable for use in air handling spaces per NEC Sec 300-22(C)
