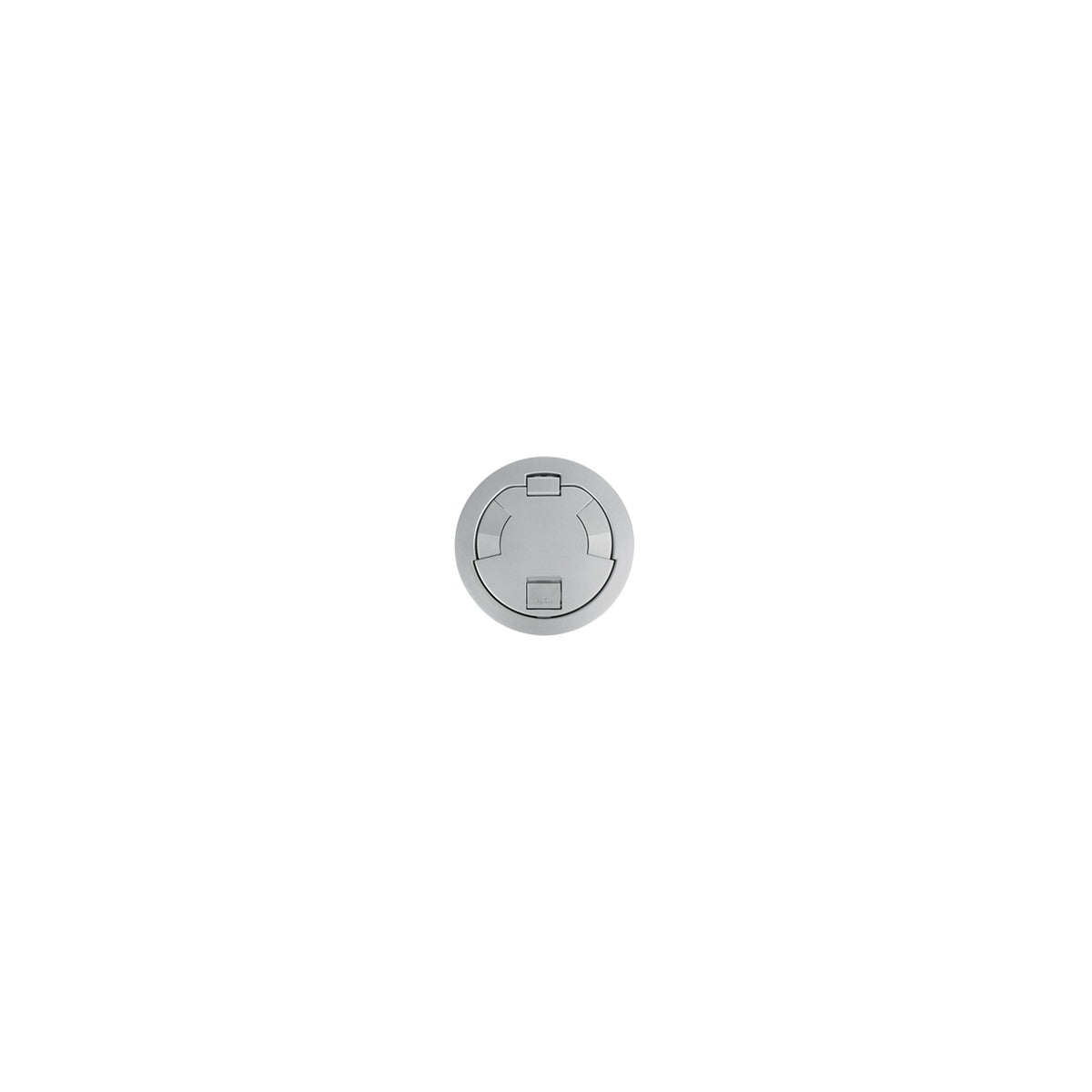

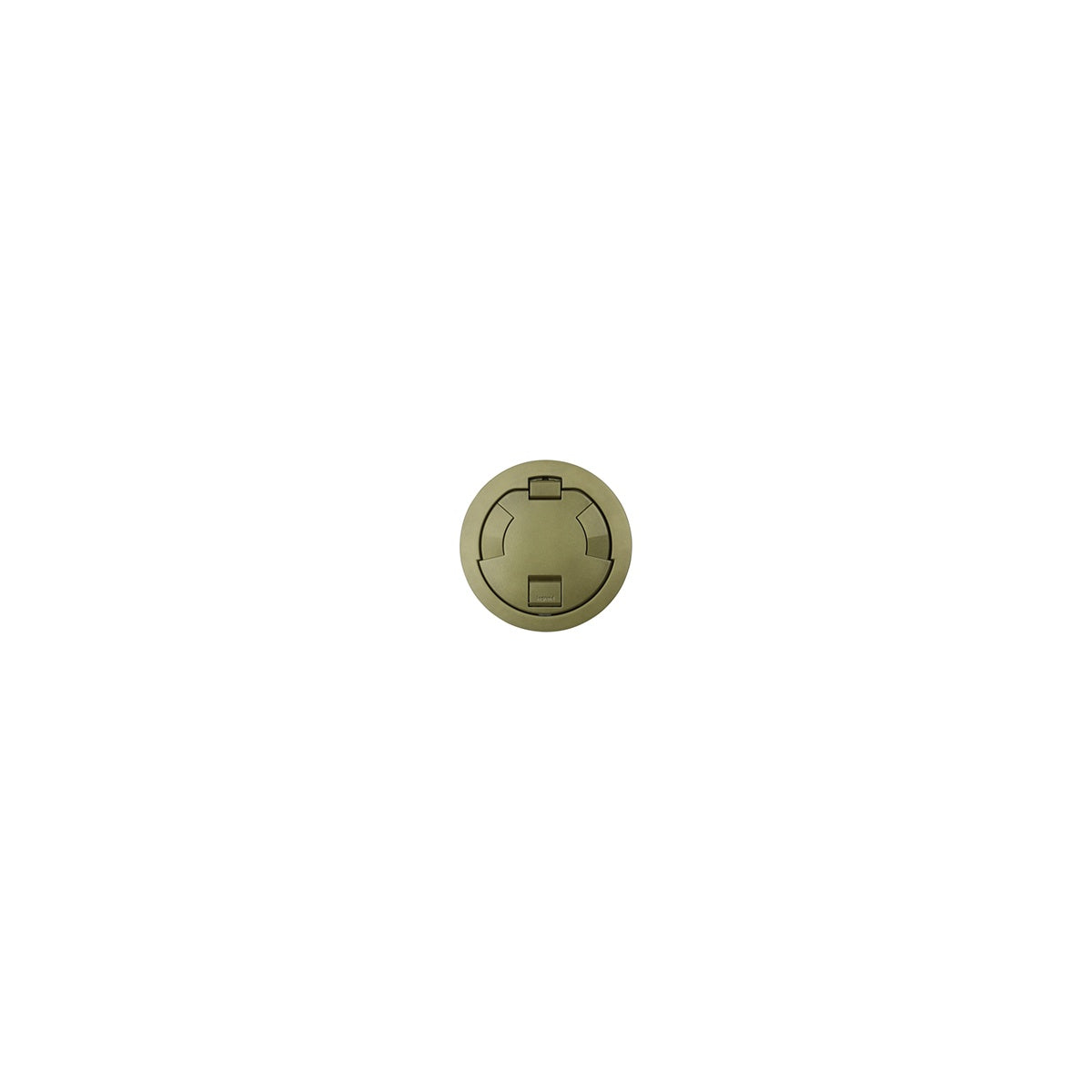

Evolution 6AT Series Flush Style Cover Assembly – Poke-Thru Cover

The Evolution 6AT Series Flush Style Cover Assembly by Wiremold is a durable die-cast aluminum cover designed for commercial and office applications. It is engineered to provide a flush, tamper-resistant or standard cover solution for poke-thru stem assemblies, facilitating power, communications, and A/V wiring access through floors. This cover assembly is suitable for use with 6STCP, 6STC, and 6STCPAV poke-thru stem assemblies, making it an essential component for electrical distributors and switchgear suppliers looking to deliver reliable floor access solutions within lighting and wire and cable infrastructure.

Specifications

• Material: Aluminum Cover
• Color: Black
• Dimensions: 11.5 in (Length) x 11.5 in (Width) x 2 in (Height)
• Hole Size: 6 inches
• Mounting: Screw On
• Product Weight: 2.3 lbs
• Construction: Not Assembled
• Component Type: Cover Assemblies
• Manufacturer: Wiremold
• Manufacturer Part #: 6CTBK
• Application: Commercial, Office

Features

• Die-cast aluminum cover with powder coated finishes available in black, gray, nickel, brass, and bronze
• Designed for use with 6STCP, 6STC, and 6STCPAV poke-thru stem assemblies
• Includes one 6TS Tile Shim for tile floor applications
• Tamper-resistant option available with a tamper-resistant screw for added security
• Flush style cover suitable for high-traffic areas
• Compatible with a range of floor coverings including carpet, tile, wood, polished concrete, and terrazzo (as per Evolution Series features)
• Meets ADA Standard 4.5 for accessibility
• Cover opens 180° with a built-in, easy-to-use handle
• Slide doors provide cable protection and safety
• Intumescent material maintains a two-hour fire rating for floor integrity
