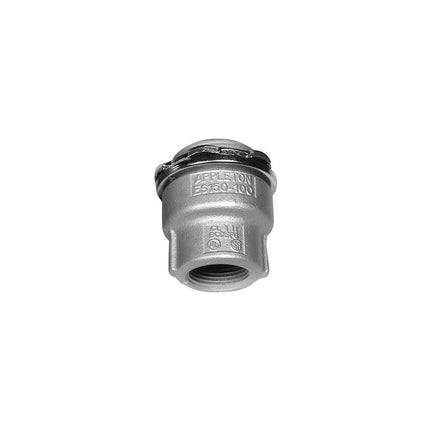

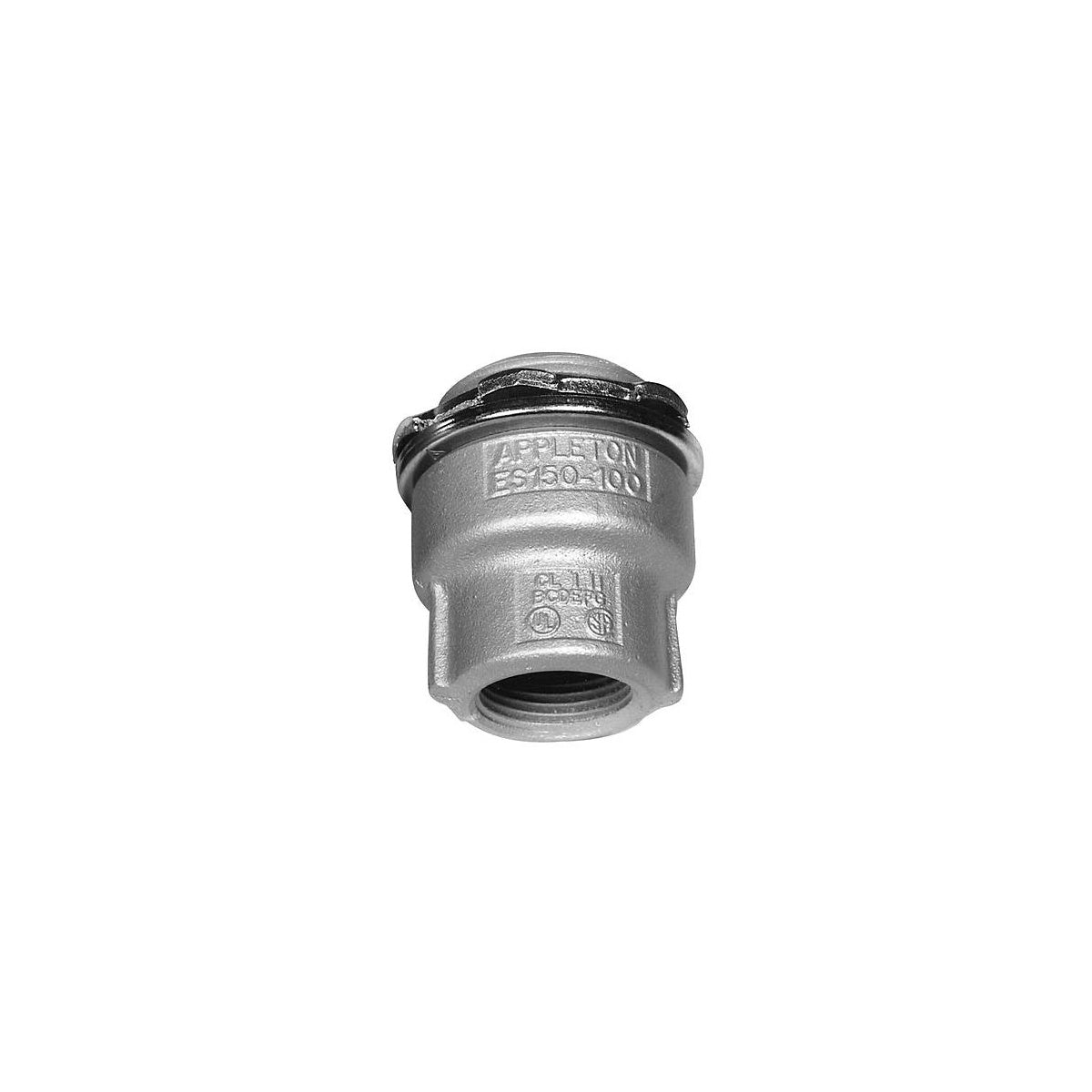

ES600500, IMC/Rigid Conduit Sealing Hub - Explosionproof Conduit Sealing Solution

The ES600500 IMC/Rigid Conduit Sealing Hub by Appleton is designed for sealing vertical conduit risers in hazardous locations, ensuring the prevention of gas, vapor, or flame passage through conduit systems. Suitable for use on IMC and threaded rigid conduit, this sealing hub is ideal for applications in switchgear, motor control centers, sheet metal structures, cast boxes, and enclosures. It meets rigorous standards for explosionproof and dust ignitionproof construction, making it a reliable component for electrical distributors and switchgear suppliers serving classified environments.

Specifications

• Type: Tapered Male/Female Threaded
• Trade Size: 6 Inch (Male Hub), 5 Inch (Female Hub)
• Dimensions: 7.63 Inch Diameter x 7.5 Inch Length
• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron
• Weight: 17.74 lbs
• Internal Volume: 143.73 Cubic Inch
• Approvals: UL 886, CSA C22.2
• Enclosure Rating: Class I Division 1 and 2 Group C D, Class II Division 1 and 2 Group E F G, Class III
• Applicable Standards: NEC/CEC

Features

• Explosionproof and dust ignitionproof construction suitable for hazardous locations
• Grounding type: Grounding
• Compatible with IMC and threaded rigid conduit systems
• Coated for corrosion resistance with zinc electroplating, chromate, and epoxy powder coating
• Designed to comply with NEC Article 501 requirements for sealing hubs in Class I, Division 1 and 2 locations
• UL Listed for use with Appleton Kwiko¬Æ, Kwiko A‚Ñ¢, and Crouse-Hinds Chico A¬Æ sealing cement compounds
• Ensures secure sealing to prevent passage of gases, vapors, or flames through conduit
