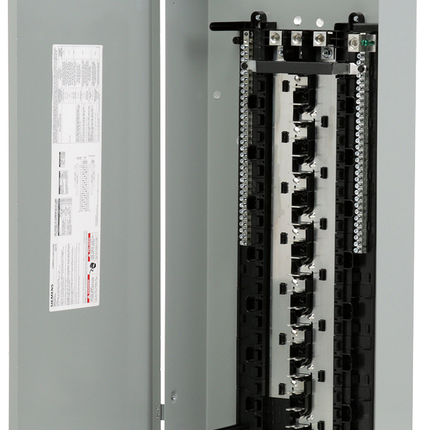

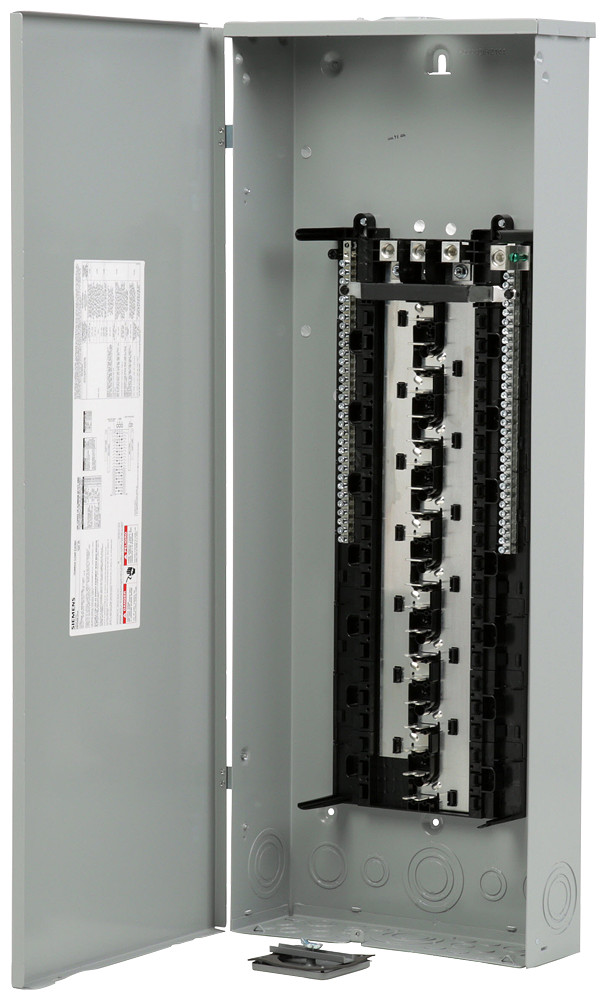

ES LC ML 42S/60C 3PH 225A N3R Load Center

The Siemens ES LC ML 42S/60C 3PH 225A N3R is a low voltage load center designed for residential and light commercial electrical distribution. It supports a 3-phase, 4-wire system rated for 120/240V or 120/208V, with a main lug configuration allowing up to 42 spaces and 60 circuits. This load center features an aluminum bus and is enclosed in a NEMA Type 3R rated enclosure suitable for outdoor use. It provides reliable circuit control and overcurrent protection, making it a suitable choice for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers serving residential and light commercial markets.

Specifications

• Application: Residential and Light Commercial Electric Distribution
• Amperage Rating: 225 A
• Interrupt Rating: 100 kA
• Number of Spaces: 42
• Number of Feeders (Circuits): 60
• Bus Rating: Aluminum Bus
• Enclosure Type: NEMA Type 3R (Outdoor Use)
• Mounting: Flush/Surface
• Dimensions (WxHxL): 15.5 in x 5 in x 39.63 in
• Country of Origin: Mexico
• Manufacturer Part #: SW4260L3225

Features

• Main lug load center with 42 1-inch spaces allowing up to 60 circuits
• 3-phase, 4-wire system rated for 120/240V or 120/208V
• 100 kA interrupt rating for enhanced safety and protection
• Durable aluminum bus for reliable electrical conductivity
• Gray trim with NEMA Type 3R enclosure suitable for outdoor installation
• Versatile mounting options: flush or surface mount
• Designed for residential and light commercial electrical distribution applications
