Description

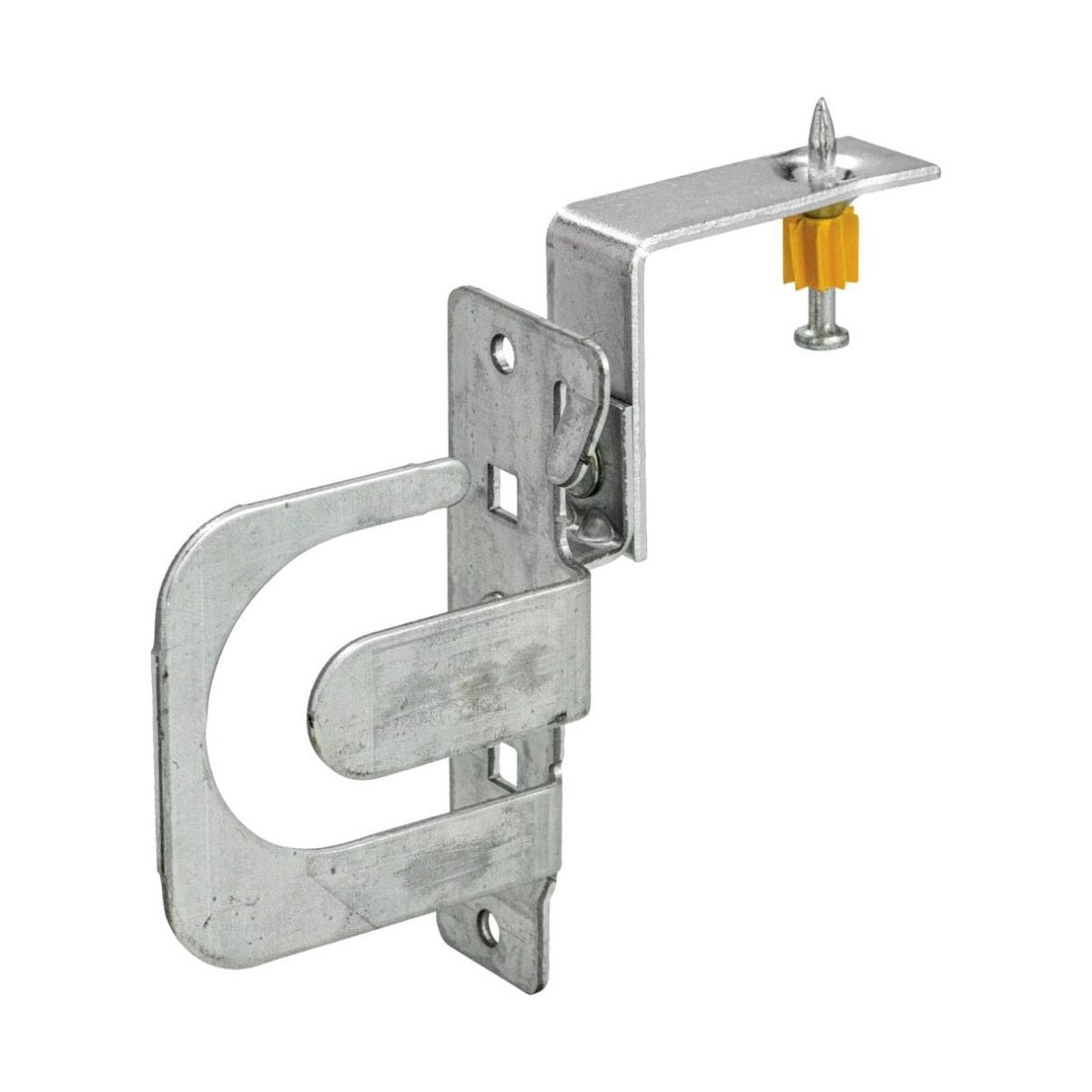

ERICO MCS101SF MC/AC Cable Support with Shot-Fire Bracket
The ERICO MCS101SF is a steel cable support designed for MC/AC cables, providing secure isolation and proper spacing to reduce bundling and NEC/CEC derating issues. It is intended for use by electrical distributors and lighting solutions providers requiring reliable cable management on concrete, steel, or composite metal decking. This product supports 10-3 to 8-3 MC/AC cables and 12-3 to 10-2 super neutral cables with an outer diameter range of 14.2 to 17.5 mm, accommodating up to 7 cables.
Specifications
- Manufacturer: Erico
- Manufacturer Part #: MCS101SF
- Compatible Cable Sizes: 10-3 to 8-3 MC/AC, 12-3 to 10-2 Super Neutral
- Cable Capacity: 7 cables
- Material: Steel
- Finish: Electrogalvanized
- Product Weight: 0.1000 lbs
- UPC: 782856952411
Features
- Neatly isolates, supports, and secures MC/AC cables to maintain organized installations
- Properly spaces cables to help eliminate bundling and reduce NEC and CEC derating issues
- Complete with shot-fire bracket and pre-assembled drive pin for quick installation
- Attaches easily to concrete, steel, or composite metal decking
- Integrated pin installs using powder-actuated or single-shot gas-actuated tools
- ICC-ES ESR-2024 evaluation report available for the drive pin, ensuring compliance and reliability
