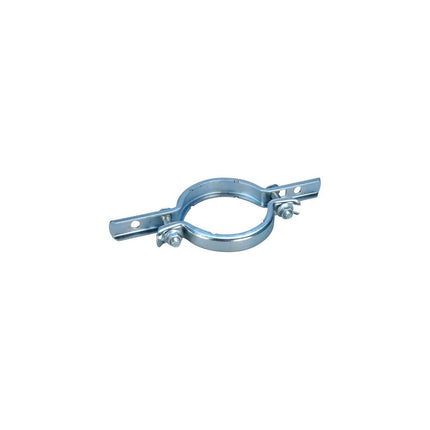

ERICO EZR0300 NVENT CADDY EZ RISER 3INCH PIPE - Pipe Support Clamp

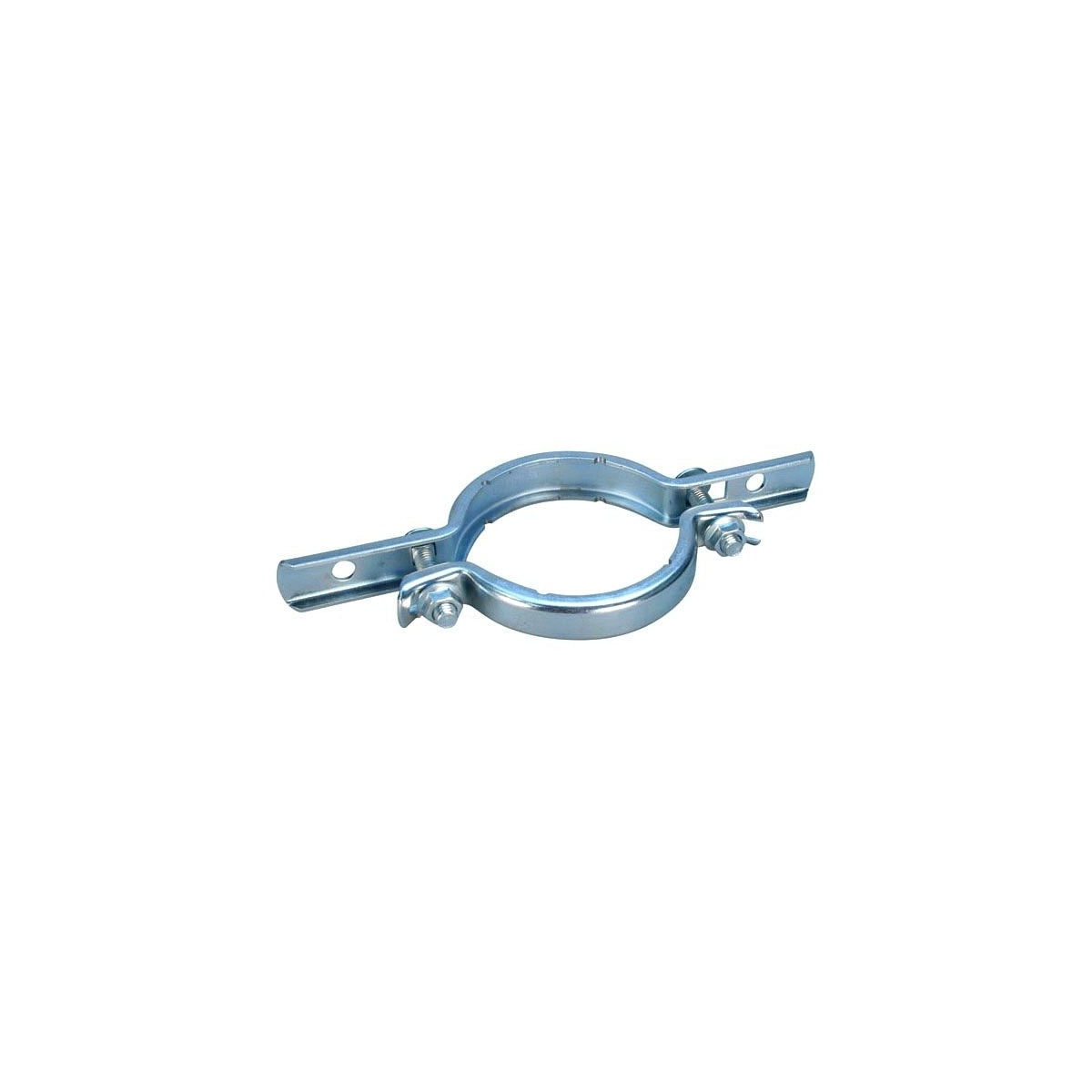

The ERICO EZR0300 nVent CADDY EZ Riser is a steel clamp designed to provide reliable support for vertical steel pipe risers in electrical and lighting installations. It is suitable for use by electrical distributors and switchgear suppliers needing durable and efficient pipe support solutions. The clamp installs below couplings or shear lugs and meets ANSI®/MSS-SP-58 installation standards.

Specifications

• Manufacturer: Erico
• Model Number: EZR0300
• Pipe Size (NPS): 3 inch (80 mm)
• Bolt Size: 3/8-16
• Static Load Capacity: 530 lbs (2,358 N)
• Outer Diameter: 3.500 inches
• Hole Size: 0.39 inches
• Dimensions: A = 11 3/4", B = 8 1/8", C = 1"
• Material: Steel
• Finish: Electrogalvanized
• Certification: cULus Listed
• Recommended Torque: 3/8-16 Bolt at 19 ft.lbs.
• Product Weight: 0.41 lbs

Features

• One-piece hinge design for ready-to-install convenience
• Lack of loose hardware reduces risk of dropped or lost components, speeding installation
• Carriage bolts seat into clamp, eliminating need for multiple tools during tightening
• Installs up to 60% faster than standard riser clamps
• Multi-functional clamp supports several approved orientations for simplified material handling
• Integrated second set of bolt holes allows easy adaptation from riser clamp to stand-off support
• Score marks enable removal of ears for installation in tight spaces while retaining product listing
• Designed for use in non-corrosive indoor environments
