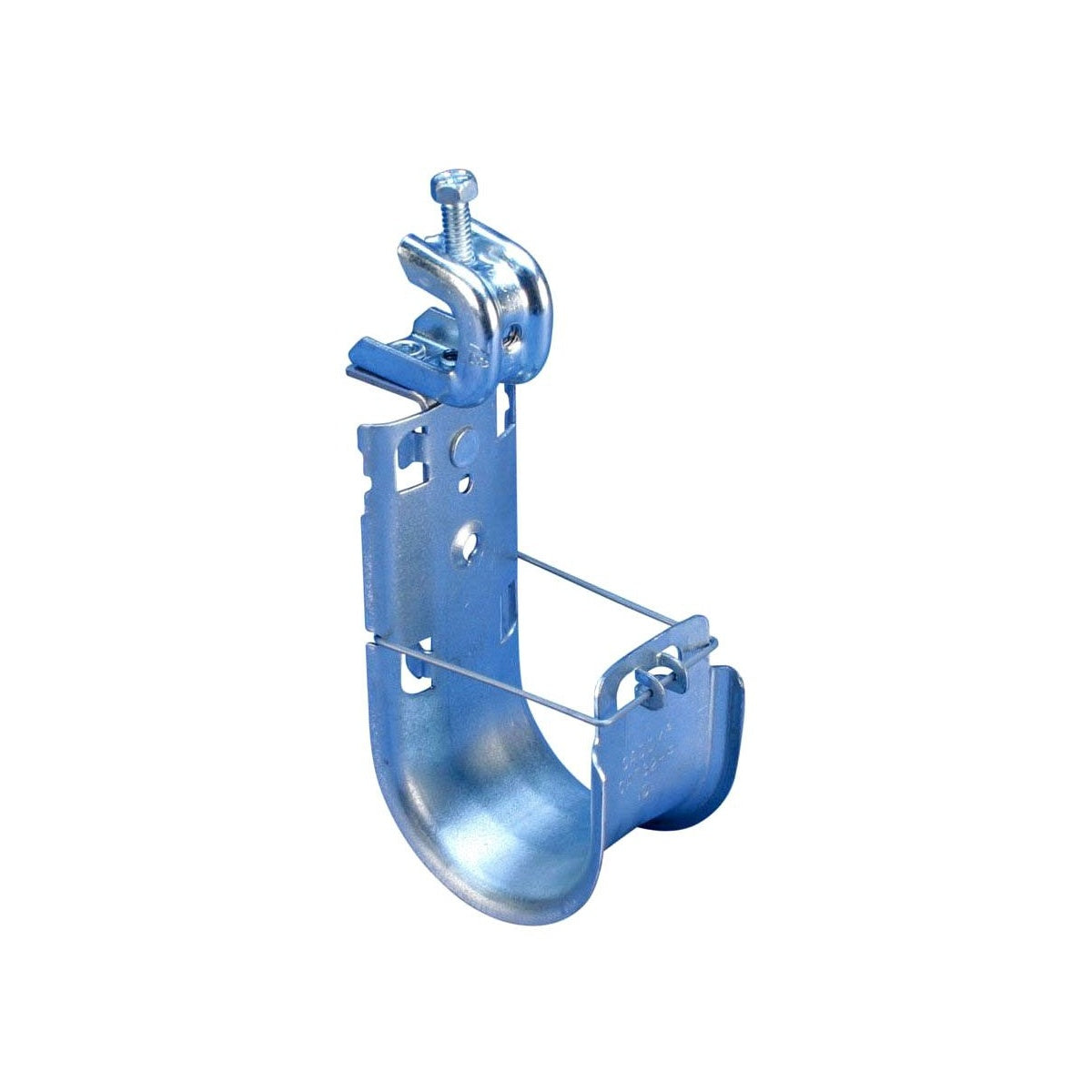

ERICO CAT32HPBC200B NVENT CADDY CAT HP J-HOOK WITH BC200 BEAM CLAMP SWIVEL 2INCH (50 MM) DIA 1/2INCH MAX (16 MM MAX) FLANGE
SKU: #410955
Part: #CAT32HPBC200B
UPC: 782856793632
ERICO CAT32HPBC200B NVENT CADDY CAT HP J-HOOK WITH BC200 BEAM CLAMP SWIVEL 2INCH (50 MM) DIA 1/2INCH MAX (16 MM MAX) FLANGE
SKU: #410955
Part: #CAT32HPBC200B
UPC: 782856793632
Total Price: $13.40 per each Sold in increments of 50 each
Description
ERICO CAT32HPBC200B NVENT CADDY CAT HP J-HOOK WITH BC200 BEAM CLAMP SWIVEL 2INCH DIA 1/2INCH MAX FLANGE - Cable Support Solutions
The ERICO CAT32HPBC200B nVent CADDY CAT HP J-Hook with BC200 Beam Clamp Swivel is designed for secure and flexible cable support in electrical distribution and structured cabling systems. This product is ideal for supporting high-performance data cables, including Cat 5e, Cat 6, Cat 6A, Cat 7, and fiber optic cables. It offers a cost-effective and reliable alternative to cable trays, suitable for use by electrical distributors and lighting solutions providers managing wire and cable installations.
Specifications
- Manufacturer: Erico
- Manufacturer Part #: CAT32HPBC200B
- Diameter: 2 inch (50 mm)
- Maximum Flange Thickness: 1/2 inch (16 mm)
- Material: Steel
- Finish: Pregalvanized, Electrogalvanized
- Load Rating: 60 lbs (267 N)
- Product Weight: 0.2 lbs
- UPC: 782856793632
Features
- Easy installation to beam flanges with setscrew tightened and torqued onto the sloped side of the I-beam
- 360-degree swivel rotation to support various directional cable runs
- Rounded edges on J-Hook provide proper bend radius support for high-performance data cables
- Provides superior fill capacity and load rating compared to most non-continuous cable support alternatives
- Complies with EN 50174-2, ISO/IEC 14763-2, ANSI/TIA 568, and ANSI/TIA 569 standards
- Cost-effective alternative to expensive cable trays
